PTING Intelligent Blasting Machine - Semiconductor Precision Cleaning Industry Applications

Contact Us
PTING Intelligent Blasting Machine - Semiconductor Precision Cleaning Industry Applications PTING Intelligent Blasting Machine - Semiconductor Precision Cleaning Industry Applications

Parameters

Pan-semiconductor specialised equipment occupies an important position in the industrial chain of the pan-semiconductor industry. The technology of pan-semiconductor specialised equipment is complex, and customers have stringent requirements on the technical parameters and operational stability of the equipment to ensure production efficiency, quality and yield. According to Moore's Law, when the price remains constant, the number of components that can be accommodated on an integrated circuit will double approximately every 18-24 months, and the performance will also double.
In the display panel industry, with the innovation of technology and the continuous iteration of products, the technology and process requirements for precision washing service companies are also increasing. With the continuous expansion of the application field of the display, the response speed of the display, LCD screen thickness, display viewing angle and other technologies put forward higher requirements; the future panel industry AMOLED penetration is expected to continue to increase, and AMOLED semiconductor display panel product production and assembly of extremely high precision requirements (up to the micron level), the quality of the product is increasingly stringent requirements. Precision washing services companies need to closely track the industry's development trends and changes in customer demand, only to continue to refine the technology and improve the process, in order to provide supporting high-quality services.

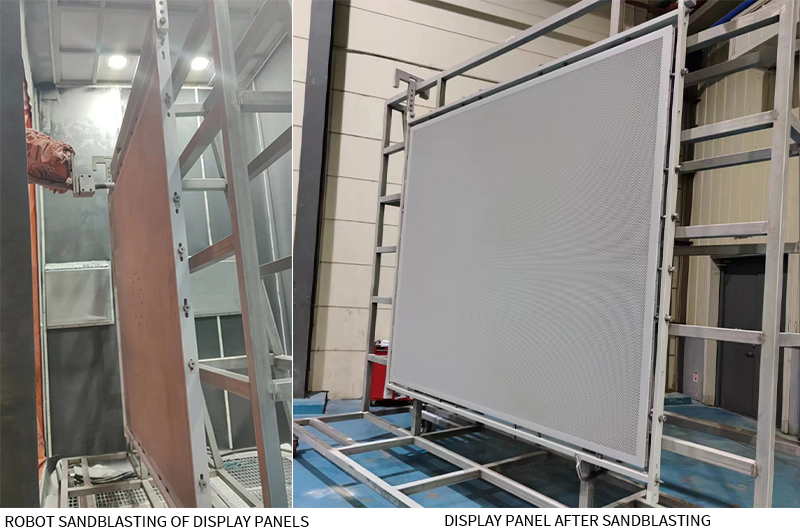

Semiconductor equipment and components (TFT, OLED, display panels, Pu film photovoltaic, etc.) in the precision cleaning process of sand blasting, melt injection process, the purpose of the process is to physically clean the surface of the workpiece impurities through sand blasting and the formation of a uniform roughness, the use of glass beads, white corundum, silicon carbide, and other abrasive materials, the process of sand blasting the workpiece from coarse to fine many times after the cleaning of the arc melting injection spraying. This process has very high requirements for sand blasting equipment: firstly, robots or sand blasting manipulators are required to carry out precise sand blasting cleaning of the workpiece, and the cleanliness, coverage and roughness of the workpiece surface shall be highly consistent and uniform; secondly, various types of ultra-fine abrasives are required to be applied, and the stability of the sand blasting equipment system is highly demanded; thirdly, the environmental protection performance is highly demanded, and it is necessary to ensure that the site environment of the production and the equipment system shall be realised to achieve the unmanned, data and intelligentization. Intelligent.
PTING technology for semiconductor precision cleaning industry specially developed series of robotic sand blasting room, intelligent sand blasting machine for semiconductor precision cleaning industry provides a complete localised equipment and process technology solutions, no longer rely on imports.

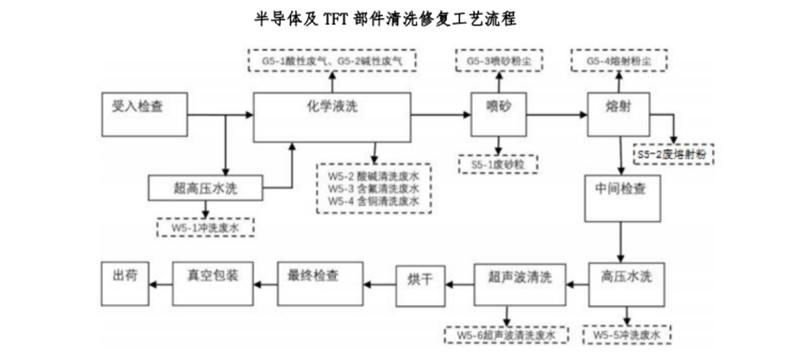

Semiconductor and TFT parts cleaning and repairing process flow

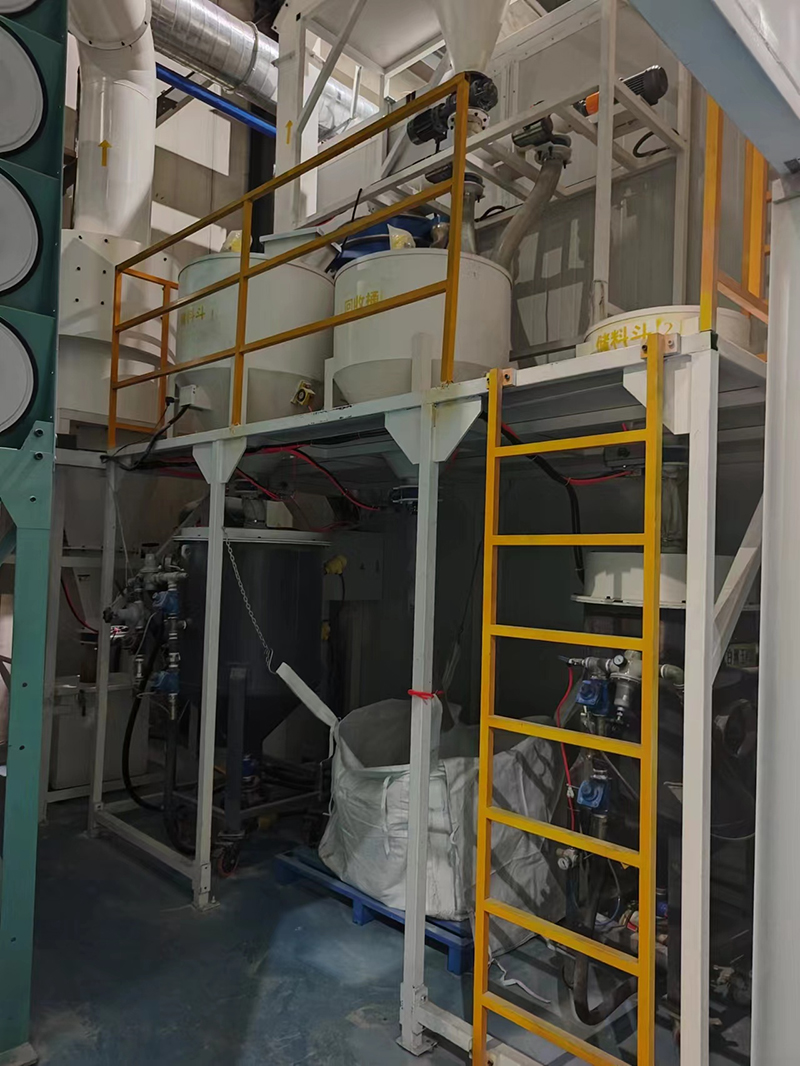

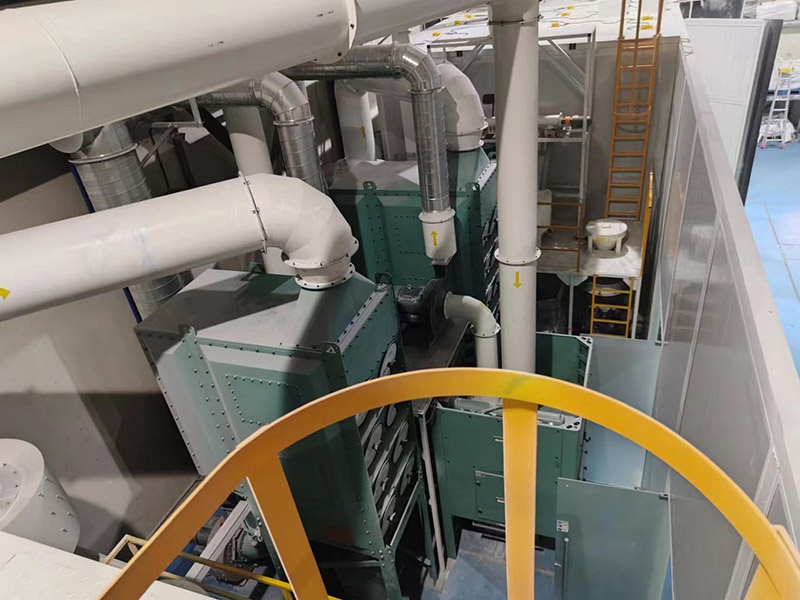

PTING Technology Automatic Intelligent Robot Blastroom System


PTING Technology Automatic Intelligent Robot Blastroom System

Video introduction of PTING automatic intelligent robotic sand blasting room system

Semiconductor special equipment belongs to the semiconductor industry chain support links, PTING Technology will be deep ploughing, continuous innovation and research and development, for China's semiconductor industry to provide first-class equipment and technology to contribute.
