Crawler Sandblasting Machine PT-LD900-4A

Product Description

PTLD series intelligent crawler sandblasting machine is a product used for sandblasting or strengthening the crawler that can collide with workpieces. The crawler has a carrying capacity of up to 200 kg. The spray gun is designed as a swing type to efficiently perform sandblasting operations within a set time. The secondary abrasive separation is extremely efficient and can meet indoor fugitive emission standards. It is an ideal sandblasting equipment for tools, drill bits, and other heat-treated parts.

Scope of Application

It is suitable for collidable, complex, and special-shaped workpieces, various drills, wrenches, castings, gears, heat treatment parts, etc.

Contact Us

Parameters

Device Parameters

Project Specifications
Effective volume 0.07m³
Door width 1000mm
Spray gun model and quantity PTB2 4 pieces
Production beat A Continuous: 8-15min B Intermittent: 15-60s/beat
Spray gun module type swing
End plate diameter 600mm
Dust removal parameters 3000-3600m³/h 2600Pa
Air source parameters Bigger 4 guns*1.3m3=5.2m³ recommended 6
Power parameters 380V, 50Hz 8KW
Device control method Frequency Control
Grade and brand of electrical components Schneider AirTAC
Applicable abrasive 10-120# non-metal/ metal abrasive
Abrasive first input amount 100KG
Total weight of equipment 1800KG
Host size 1200*1584*3045mm

*Parameter configuration is subject to modification without prior notice*

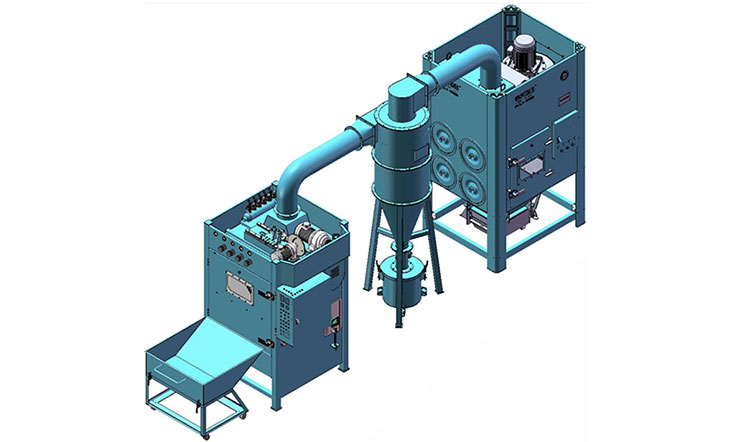

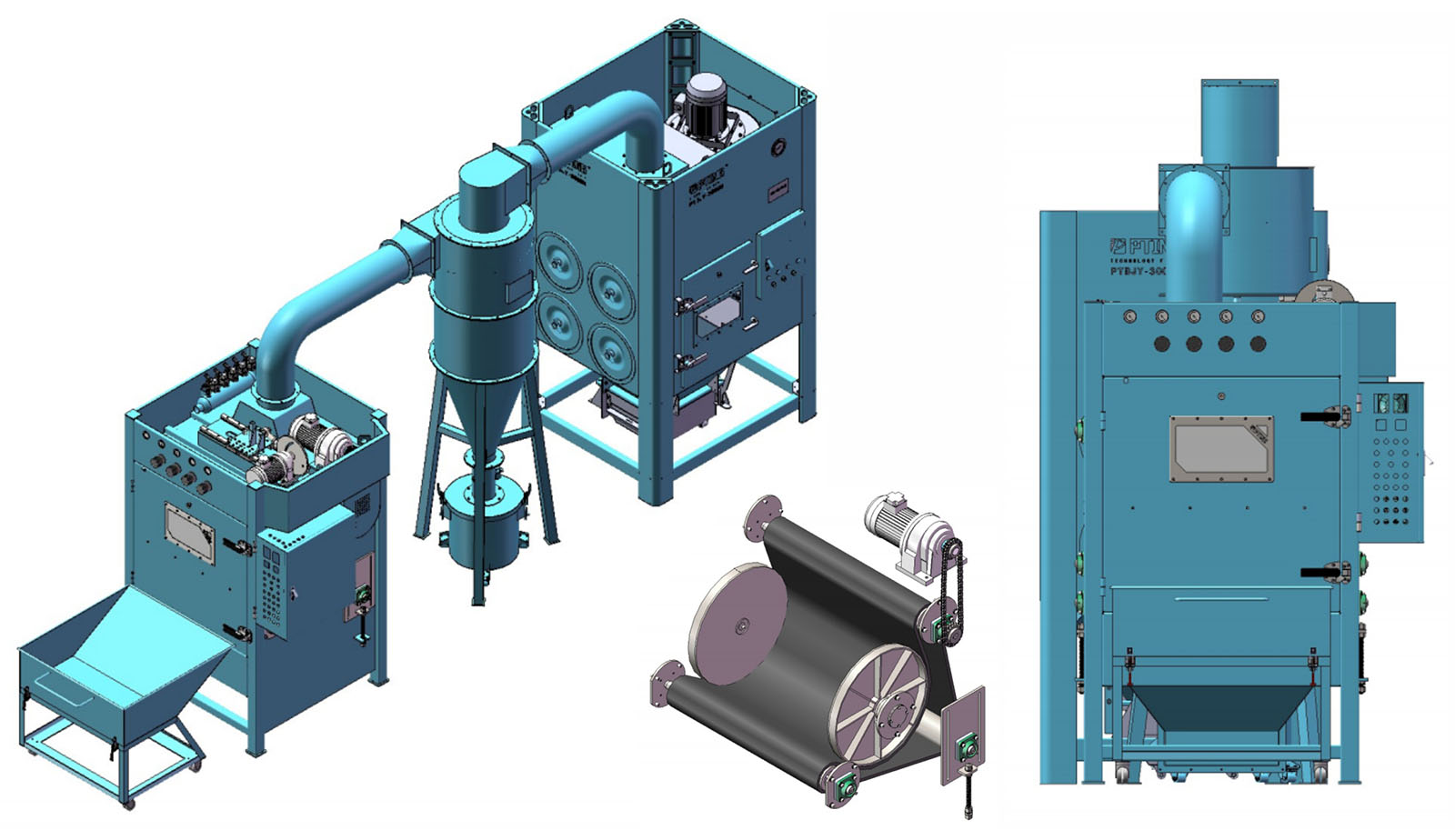

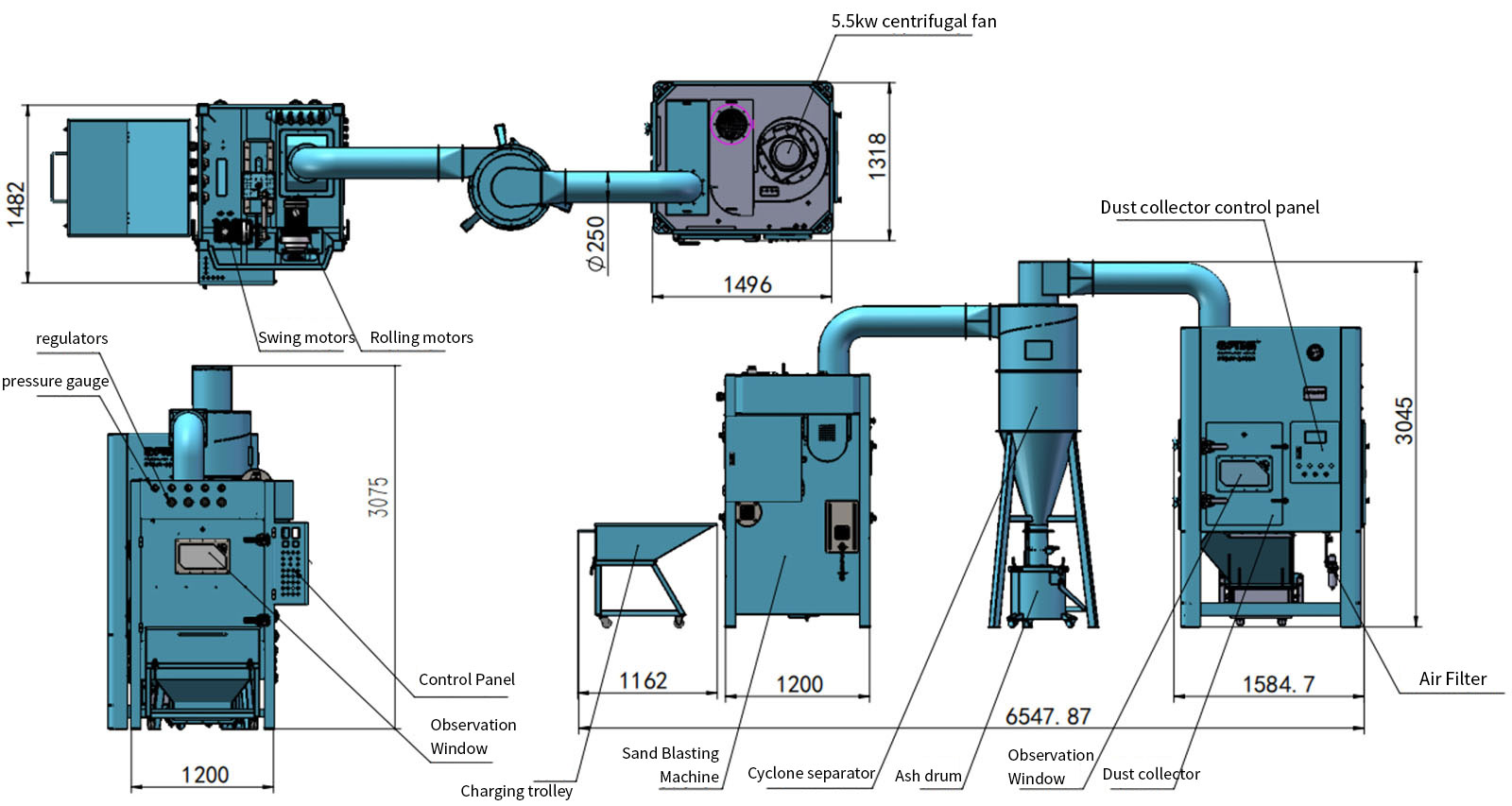

Equipment Structure Size

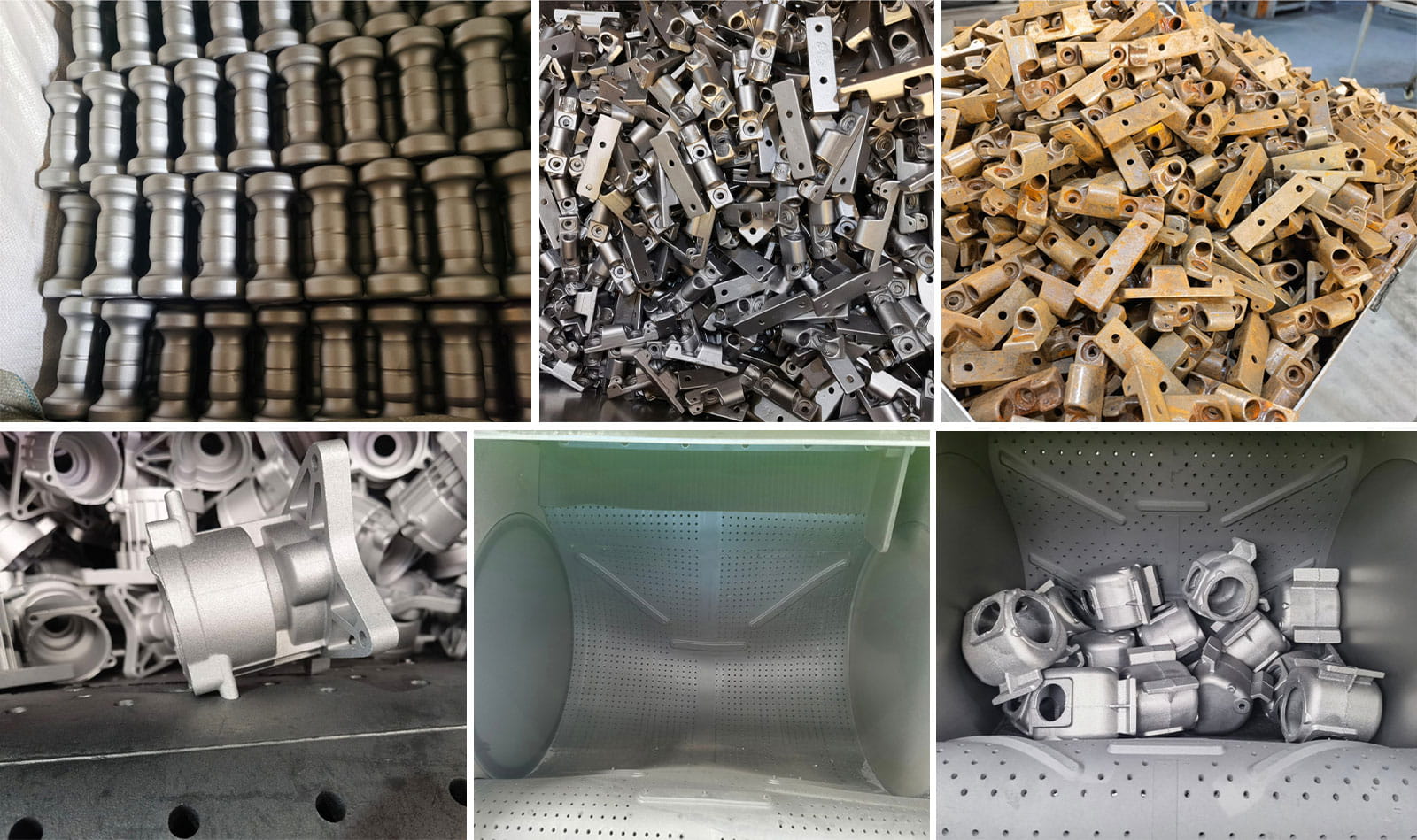

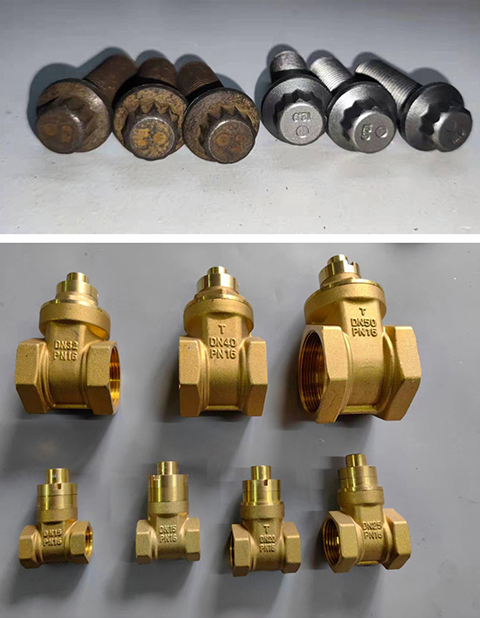

Product Application Field

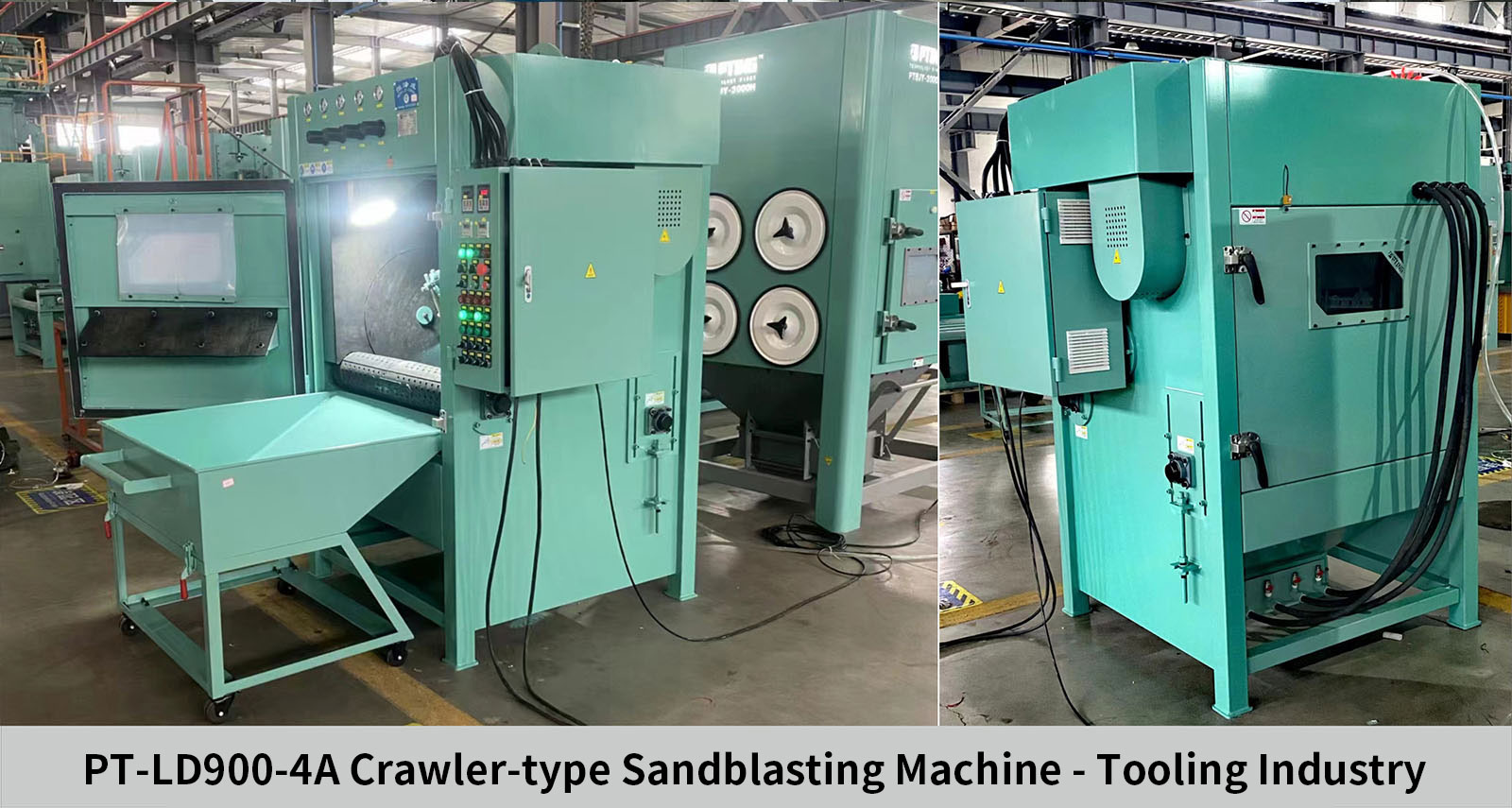

User Scenario

Contact Us

Coming From China,
Marketing To The World.

PTING Technology, founded in 2005, is a well-known domestic brand of surface treatment and environmental protection equipment system solutions. As China Crawler Sandblasting Machine PT-LD900-4A Suppliers and Wholesale Crawler Sandblasting Machine PT-LD900-4A Factory, it is committed to the R&D and manufacturing of process technology and equipment in the field of industrial surface treatment and environmental treatment. The enterprise has passed the ISO9001 quality system certification. The R&D and manufacturing base, with a building area of 25000 square meters, is located in Ningbo, China. With PTING's global overseas center in Singapore and more than 20 national offices, PTING Technology has provided surface treatment equipment, environmental protection equipment and process technology services to more than 2000 users worldwide. Users are widely distributed in: home appliance manufacturing, digital electronics, auto parts manufacturing, hardware and bathroom, new materials, new energy, rail transit, aerospace, petrochemical power, marine engineering, heavy industry equipment, agricultural machinery, engineering machinery Furniture manufacturing, etc.
