High Pressure Rotary Sandblasting Machine PT-DFP1200

Product Description

PTTP series rotary table-type high-pressure sandblasting (shot) machine high-pressure sandblasting equipment with high cleaning efficiency. The abrasive injection system was independently developed by PTING. It has a stable flow and pressure. The spray gun is a high-precision intelligent sandblasting (shot blasting) equipment with options not only motion modes such as manipulator, lifting and swinging, fixed form, but also the numerical control units settings such as workpiece cleaning unit, wear particle measurement, screening, flow control and others.

Scope of Application

1. Aircraft parts, automobile parts, molds, reinforced parts;

2. Casting and forging parts, alloy parts, and other parts before sandblasting (shot) treatment.

Contact Us

Parameters

Device Parameters

Project Specifications
Turntable diameter Diameter 1200mm
Effective processing size Diameter 300* height 450mm
Spray gun model and quantity PTB2 4 pieces
Production beat 60-360s/ beat
Spray gun module type Swing/ rotation/ translation/ translation lift/ manipulator

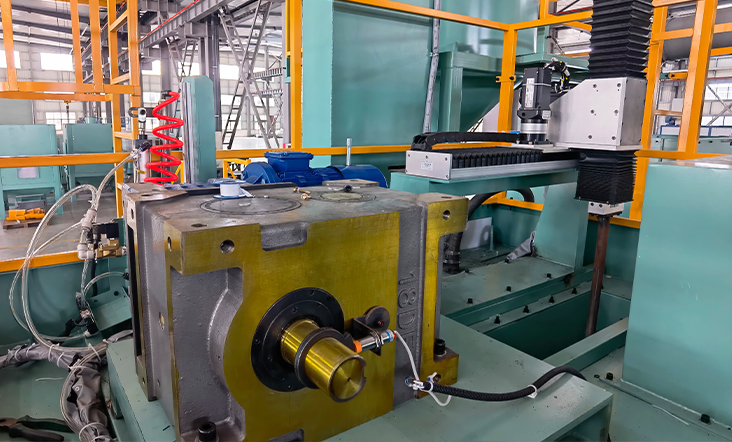

Turntable positioning type Hanging Servo/ Indicating Table
Dust removal parameters 5000-5600m³/h 2600Pa
Air source parameters Maximum 4 guns*6m³=24m³ recommended 25
Power parameters 380V, 50Hz 14KW

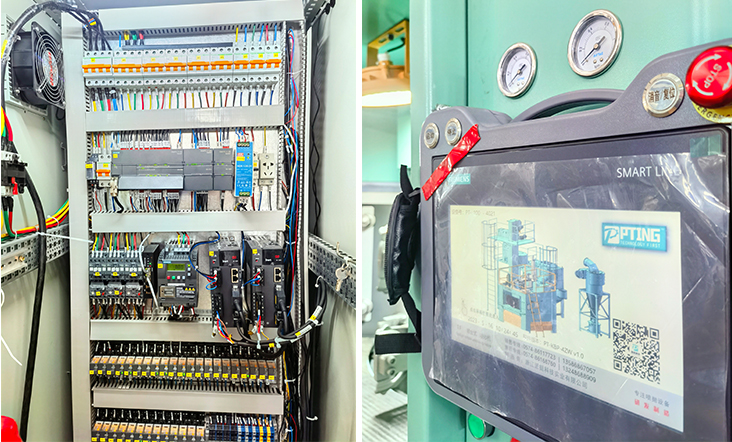

Device control method Smart PLC E-MES Remote
Grade and brand of electrical components Siemens Schneider SMC Air TAC
Applicable abrasive 10-120# non-metal/ metal abrasive
Abrasive first input amount 300-500KG
Total weight of equipment 4800KG
Host size 4500*3800*7500mm

Accessory Data

Abrasive Recycle System Wind Recovery
Bucket Recovery
Spray Mechanism Rotary Module
Pendulum Gun Module
Stepper Module

Conveyor Belt Conveyor
Roller Conveyor
Crawler Conveyor
Effective Length Width 80CM
100CM
150CM

Effective Height of Processed Processing Parts 25CM
30CM
45CM
Number of Spray Guns 8
16
32

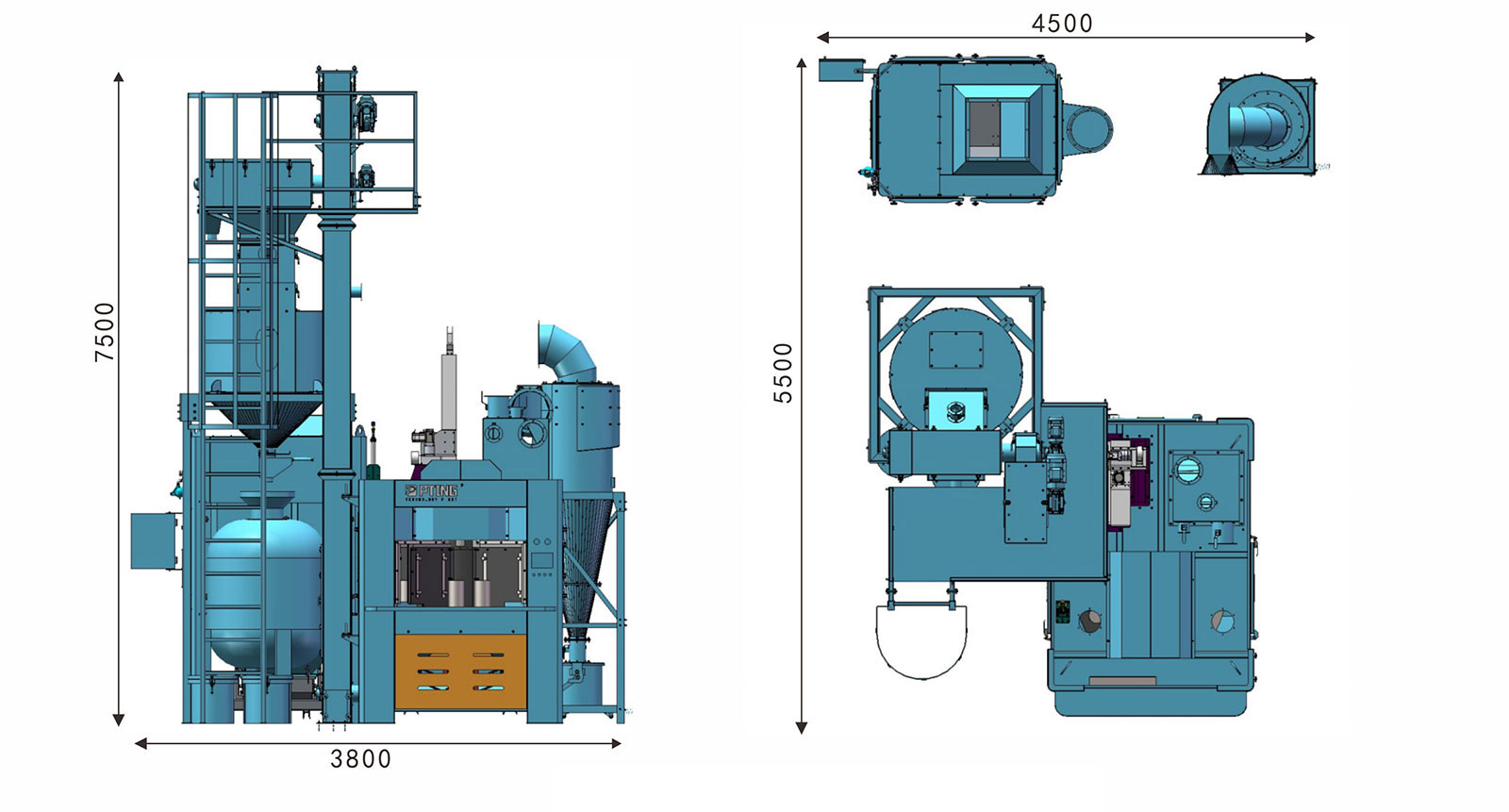

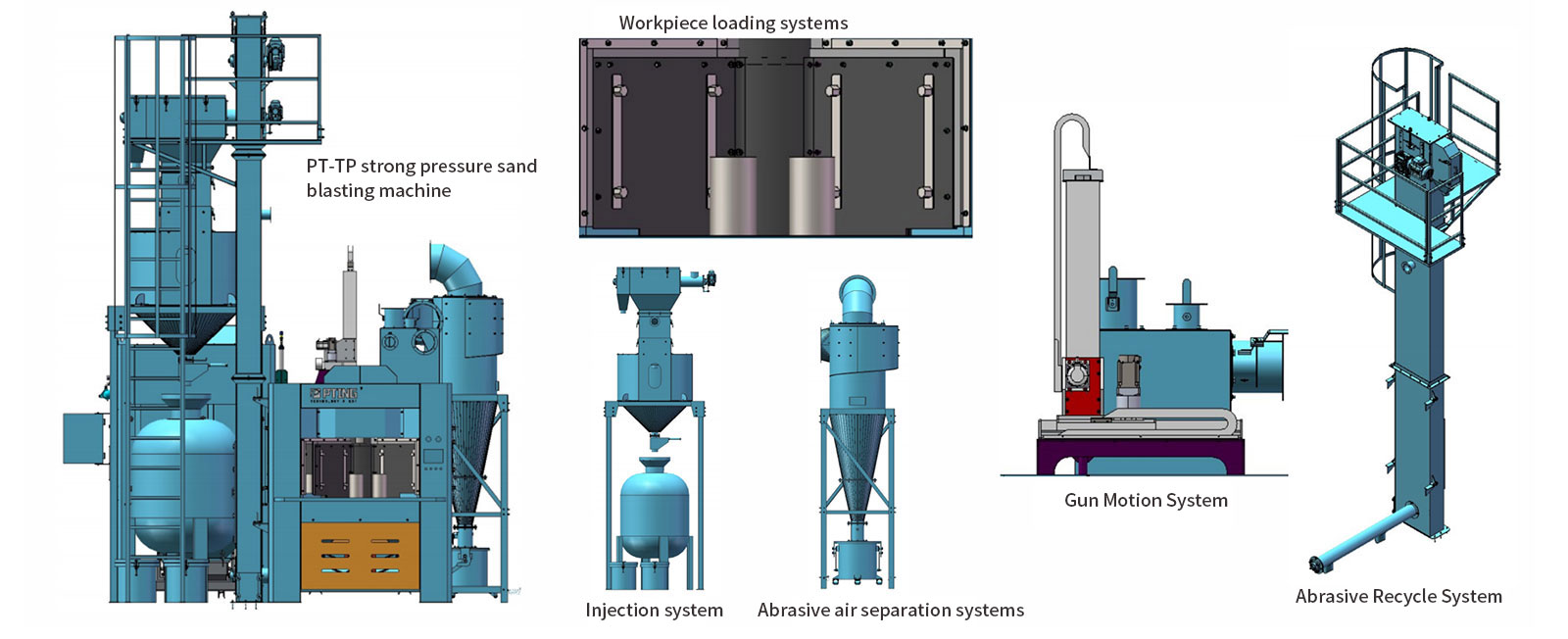

Equipment Structure Size

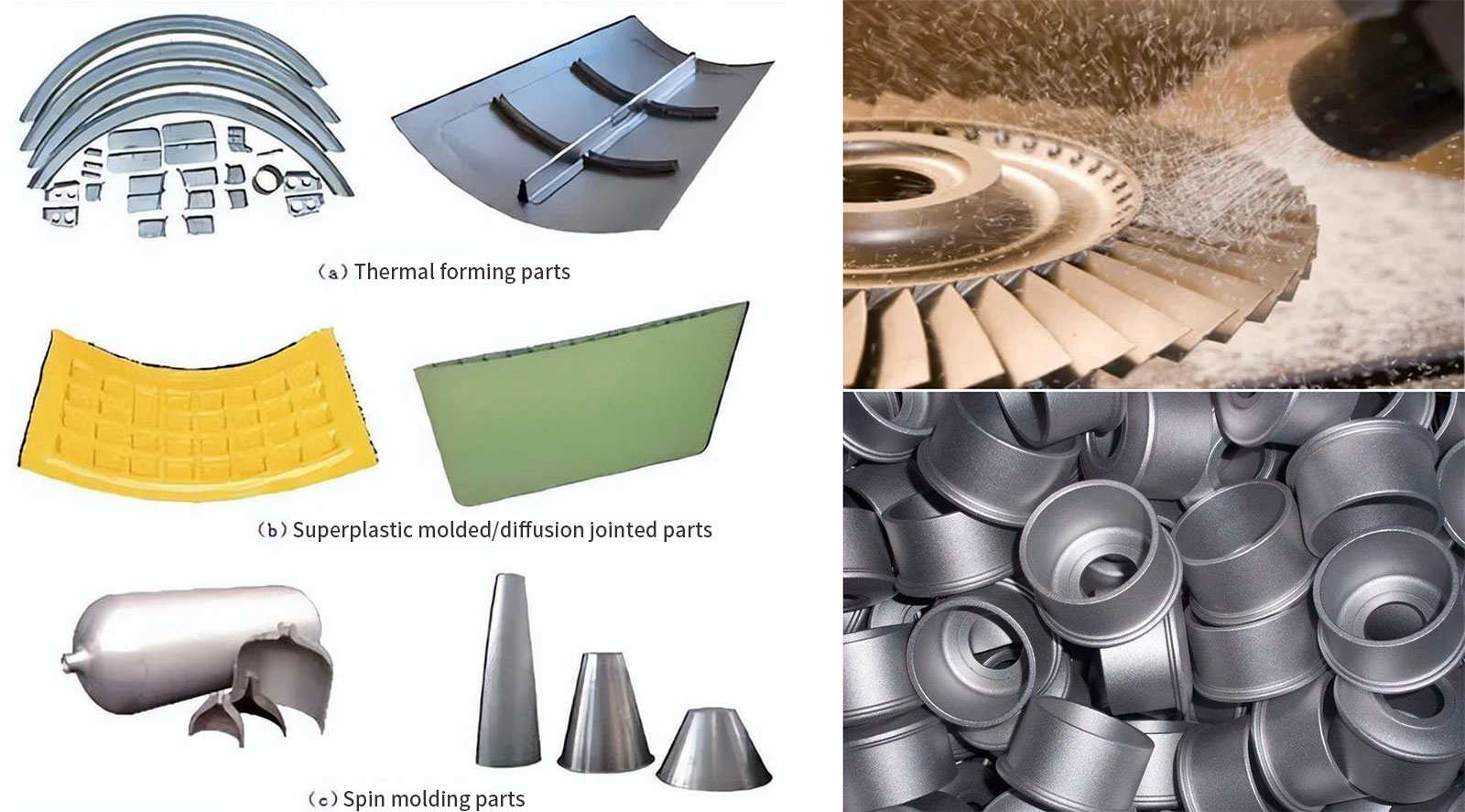

Product Application Field

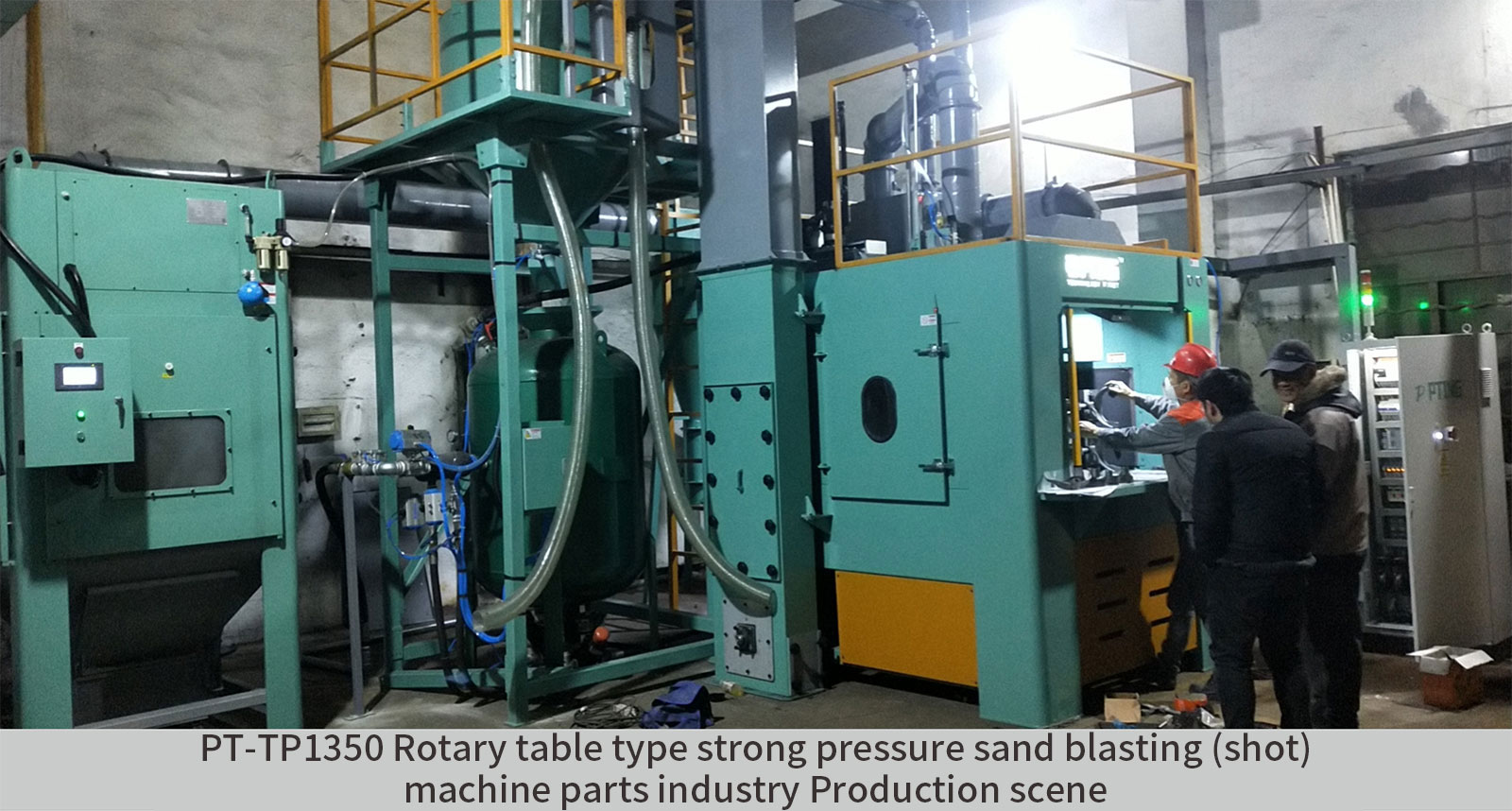

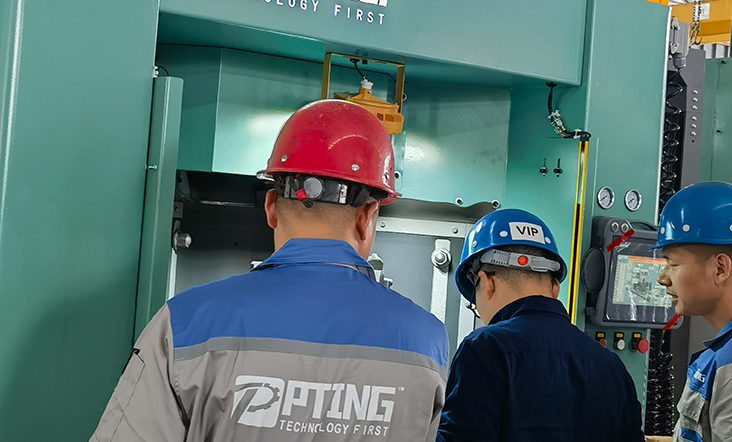

User Scenario
