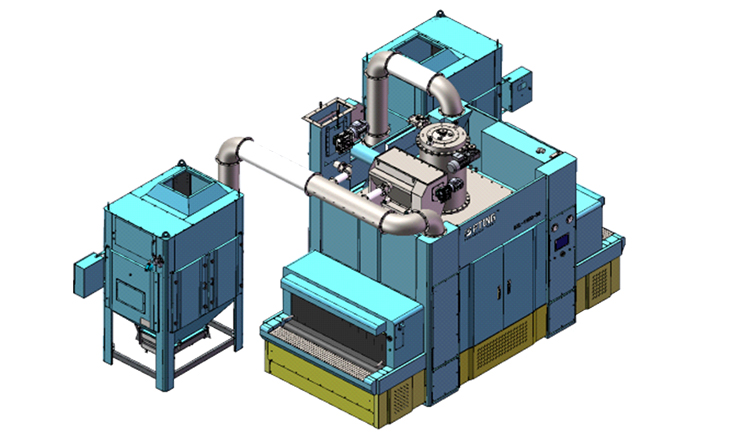

Conveyor Type Blasting Machines

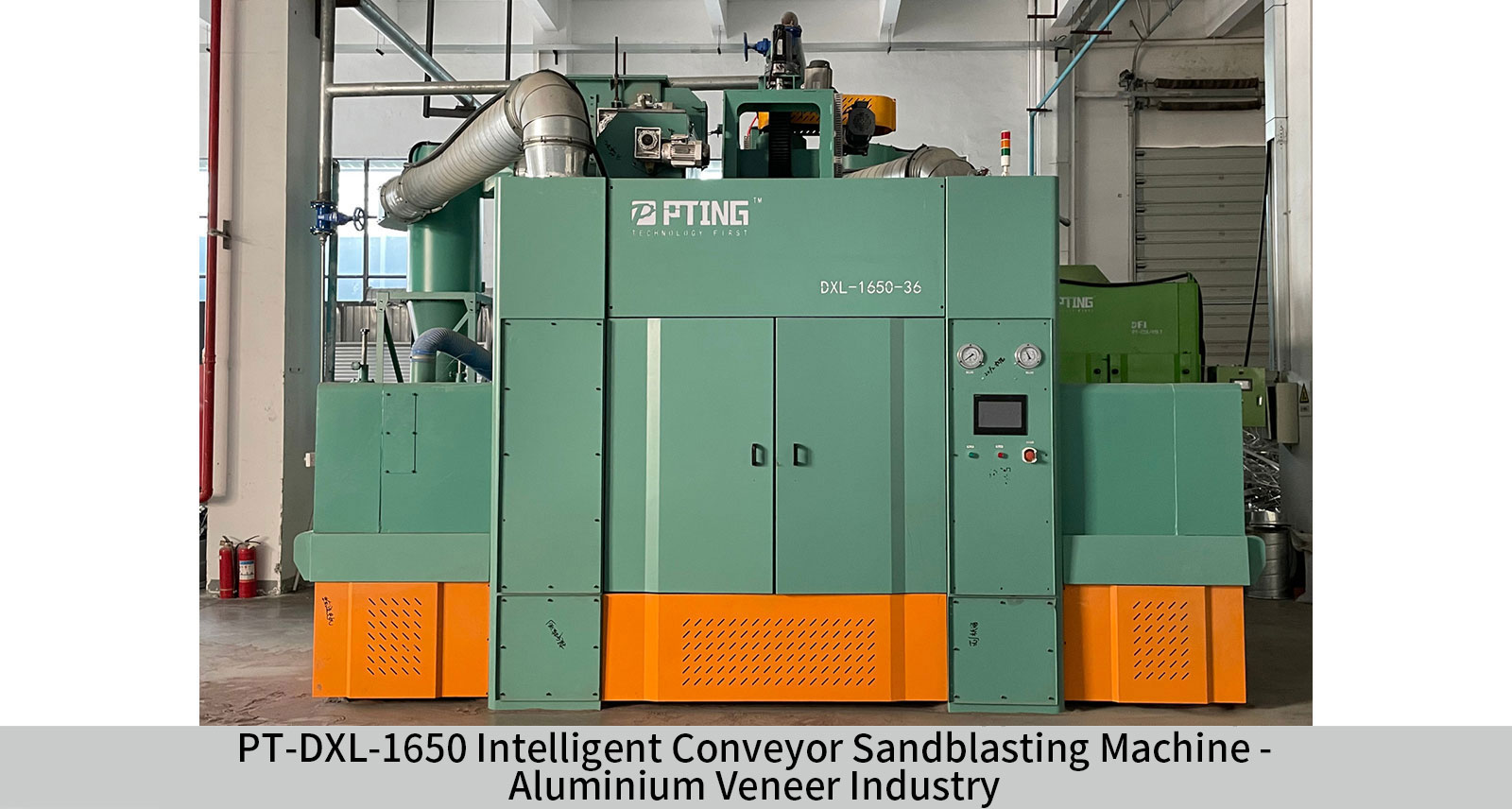

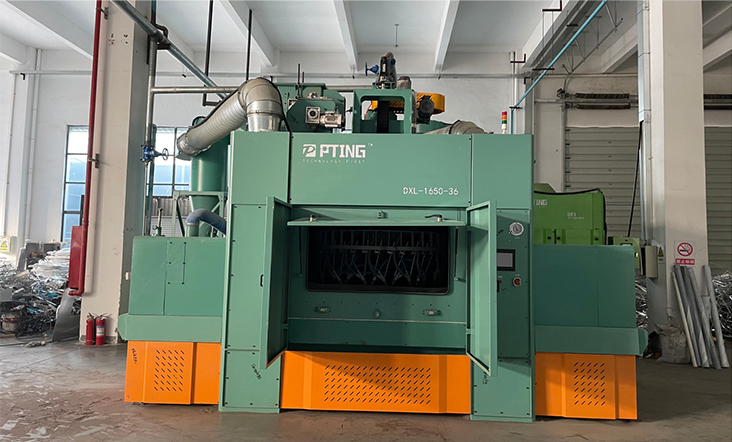

Intelligent Conveyor Sandblasting Machine PT-DXL-1650-32A

Product Description

PTSF1650 large-scale conveying sandblasting machine is a product integrating multiple patented technologies, with reasonable structure, flexible configuration, advanced intelligence, convenient installation, reliable operation, and high-end appearance.

Scope of Application

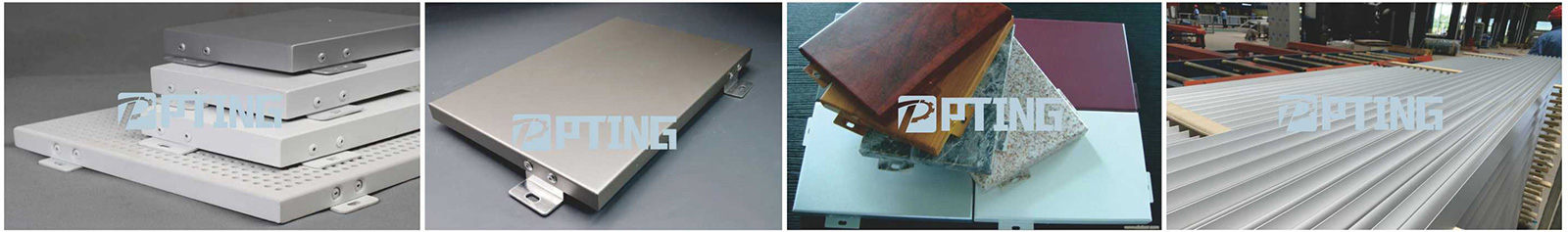

Applied to Plane Workpieces:

1. Aluminum plate, decorative plate, stainless steel plate, flat glass

2. Large LED screen back baskets, profiles, molds, etc.

Applicable Materials:

Metal parts, optical glass, magnetic products, semiconductors, wood products, etc.

Applicable Process:

Cleaning and roughening of the surface of the workpiece, polishing and grinding, strengthening stress relief

Intelligent Conveyor Sandblasting Machine PT-DXL-1650-32A

PREV：No previous article

NEXT：Intelligent conveyor sandblasting machine PT-DXL-1225-16A

Parameters

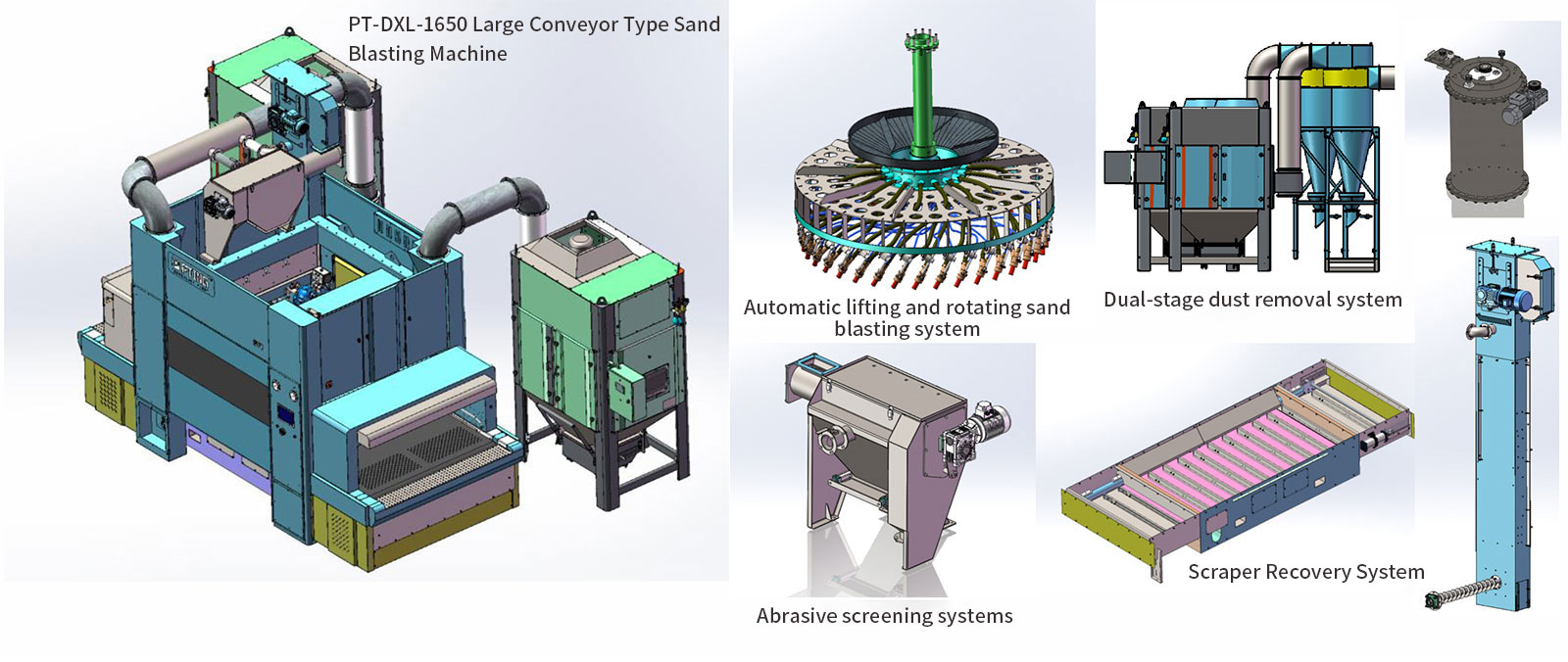

1. Technical advantages: (Achievements of a special research and development team of 6 people)

1. CDX45 dust removal system invention patent (CN306470932S)

2. Invention patent of DXL rotary sandblasting module (CN110757345A)

3. 1225 integrated appearance patent (CN306487847S)

4. Practical patent for XL cyclone dust removal (CN210707506U)

5. PT sandblasting machine control system software copyright (2020SR1013670)

2. Product advantages:

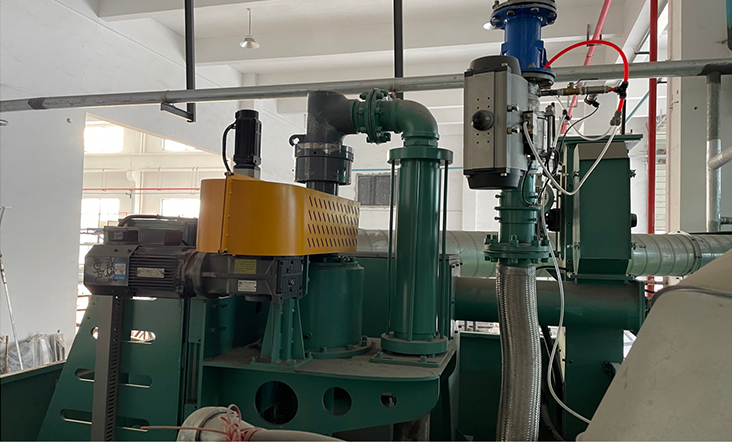

1. Dust removal system: Dust removal efficiency and abrasive separation efficiency increased by 50%

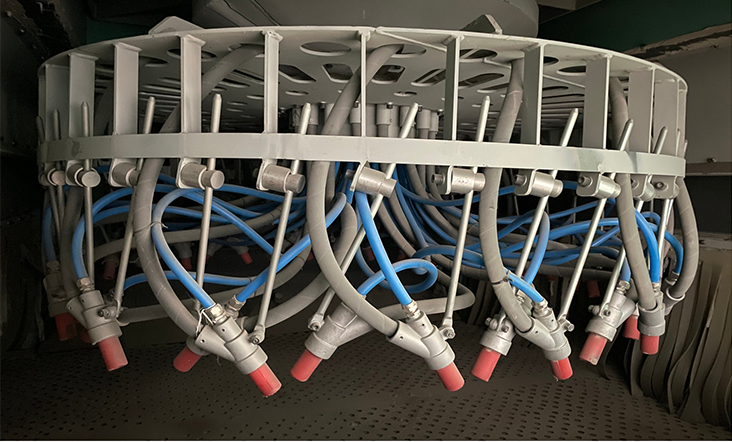

2. Rotary spray gun module: 30% increase in sandblasting efficiency with the same energy consumption.

3. Crawler conveyor: super-tire-resistant crawler with a life of 3-5 years

4. Electrical selection: Schneider, Siemens PLC and touchscreen

5. Materials of the whole machine: The key parts are made of manganese steel, 5 tons in weight.

Device Parameters

Project	Specifications
Available size	Width 1700height 550length 6000mm
Effective processing size	Width 1600height 500length 6000mm
Spray gun model and quantity	PTB18 4 32 pieces
Processing line speed	0.5-4.2m/min
Spray gun module type	Fixed rotation module/ swing gun module/ translation module
Product delivery type	Rubber Track/ V-Belt/ Roller/ Roller
Dust removal parameters	10000-12600m³/h 2600Pa
Air source parameters	Maximum 32 guns*1.3m³=46.8m³ recommended 50m³
Power parameters	380V, 50Hz 15KW
Device control method	Smart PLC E-MES Remote
Grade and brand of electrical components	Siemens Schneider SMC AirTAC
Applicable abrasive	10-120# non-metal/metal abrasive
Abrasive first input amount	350-500kg
Total weight of equipment	4100kg
Host size	520015004200

Accessory Data

	Abrasive Recycle System	Wind Recovery
		Bucket Recovery
	Spray Mechanism	Rotary Module
		Pendulum Gun Module
		Stepper Module

	Conveyor	Belt Conveyor
		Roller Conveyor
		Crawler Conveyor
	Effective Length Width	80CM
		100CM
		150CM

	Effective Height of Processed Processing Parts	25CM
		30CM
		45CM
	Number of Spray Guns	8
		16
		32

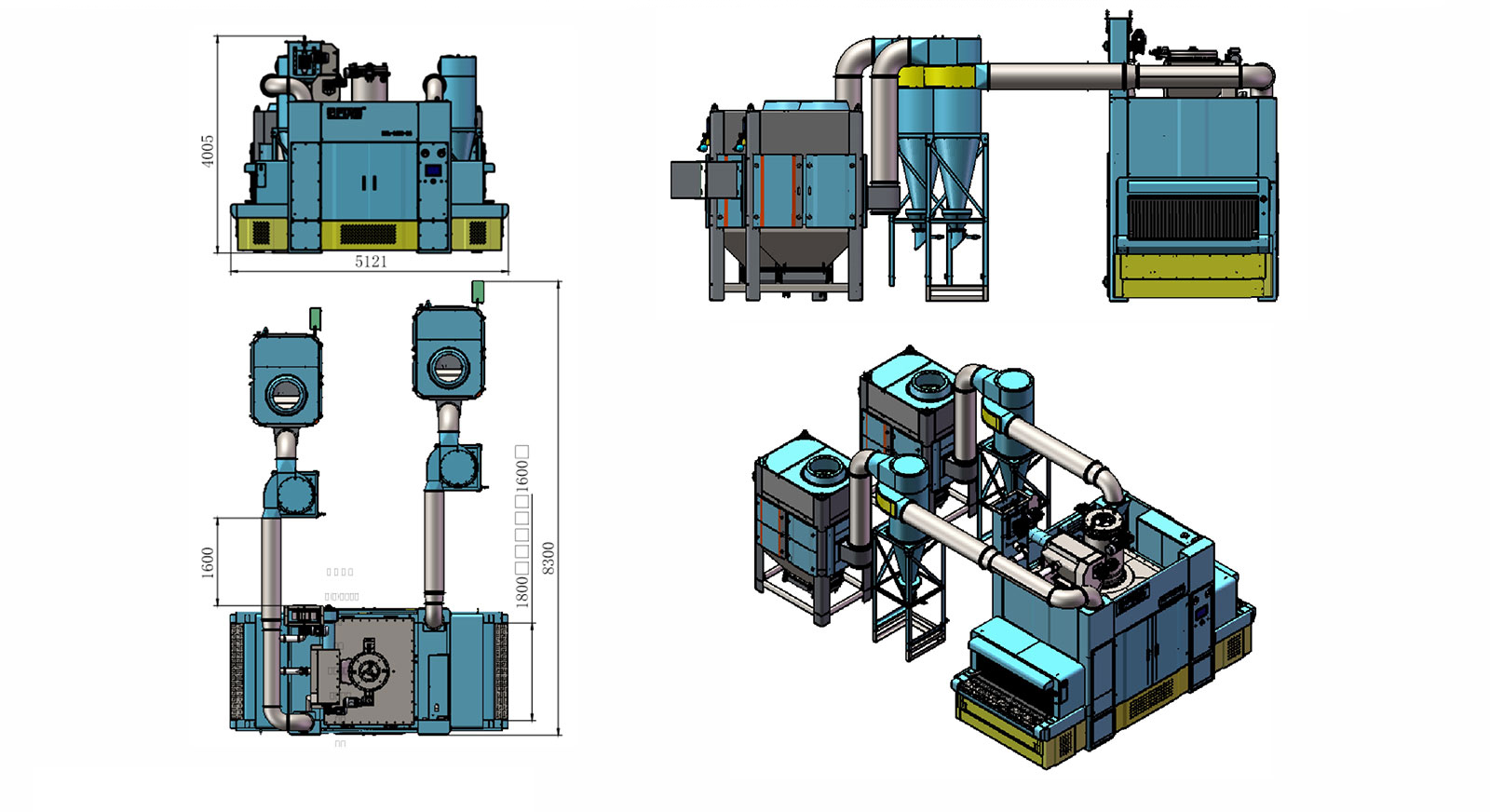

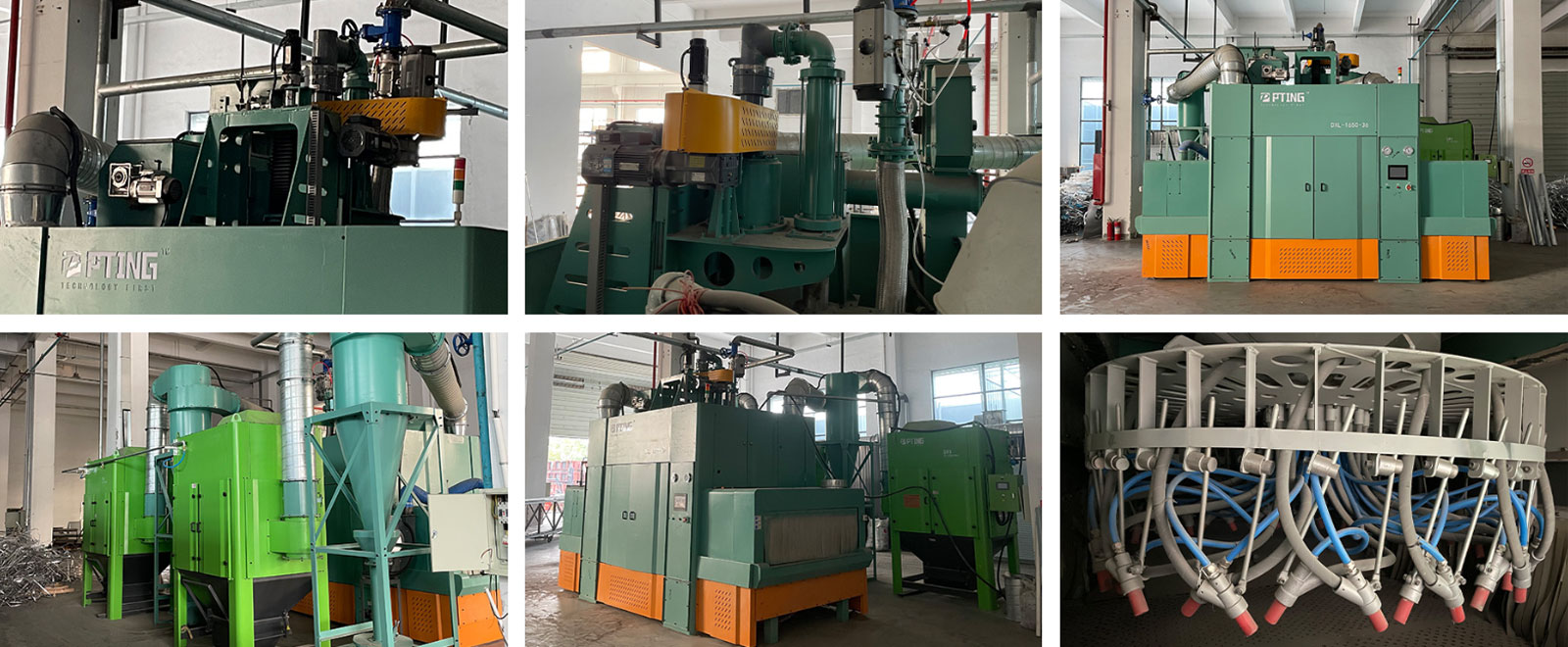

Equipment Structure Size

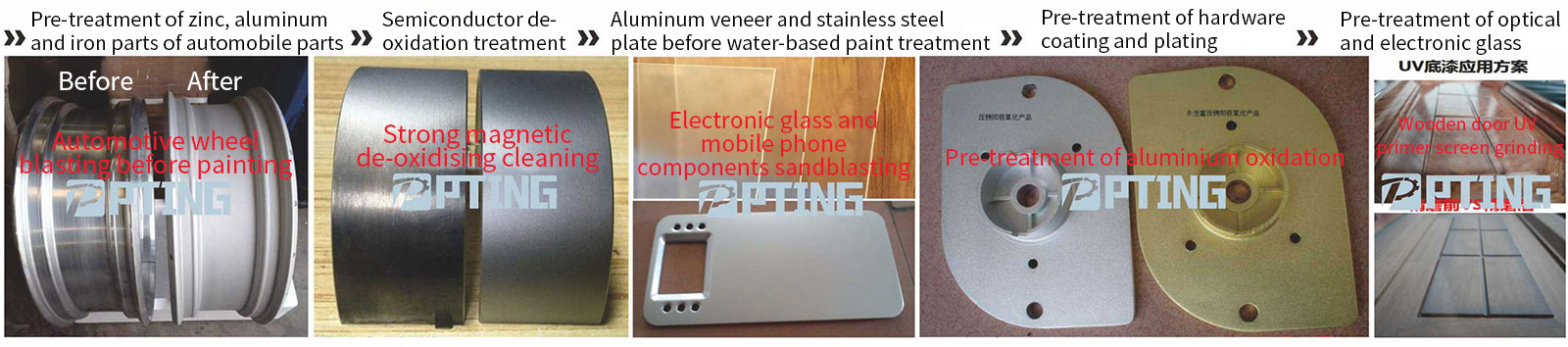

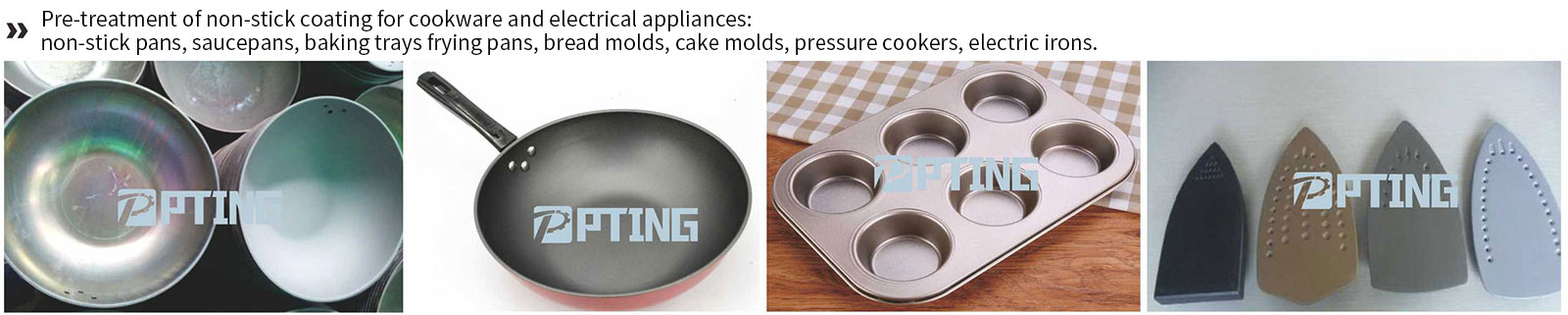

Product Application Field

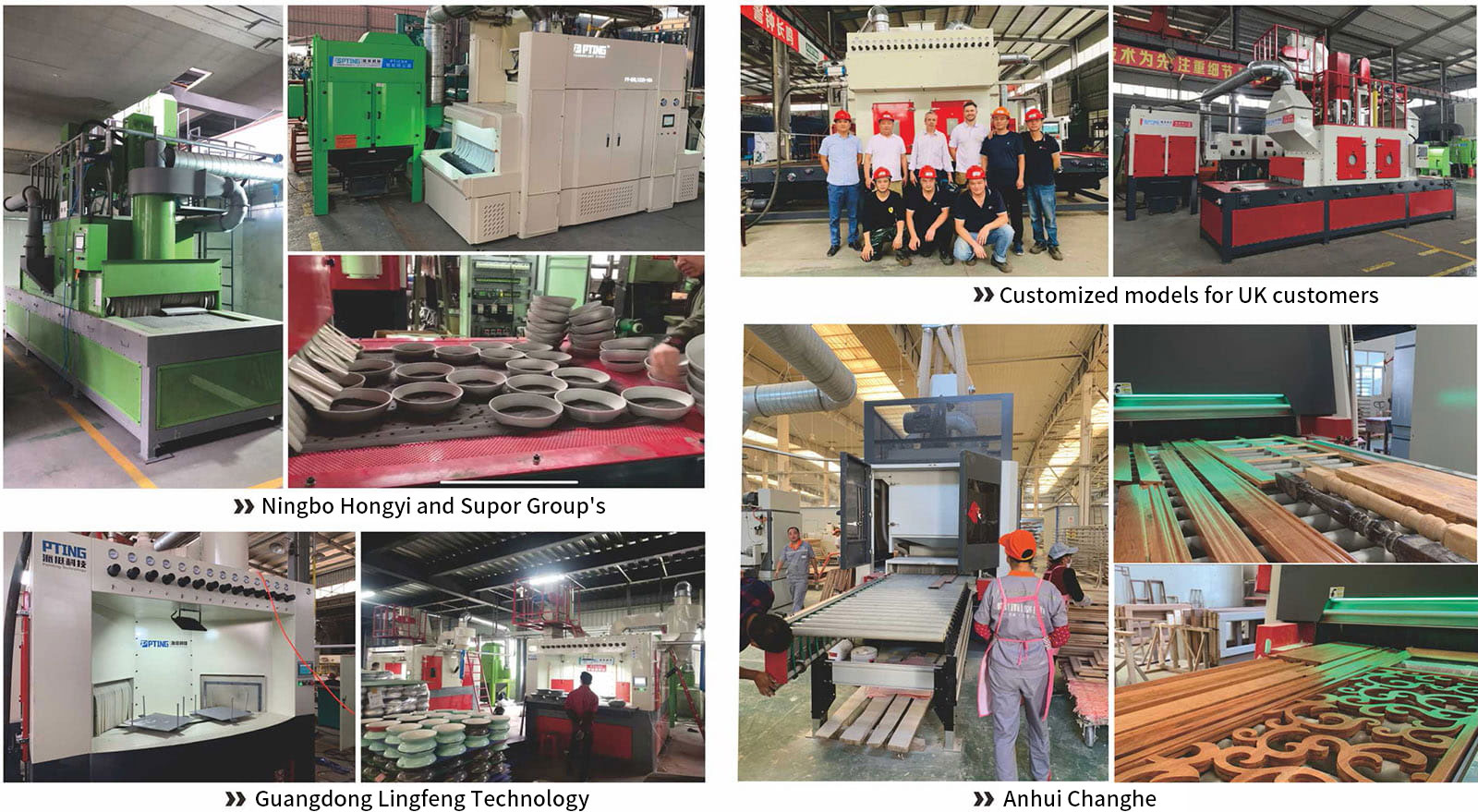

User Scenario
