Conveyor Type Blasting Machines

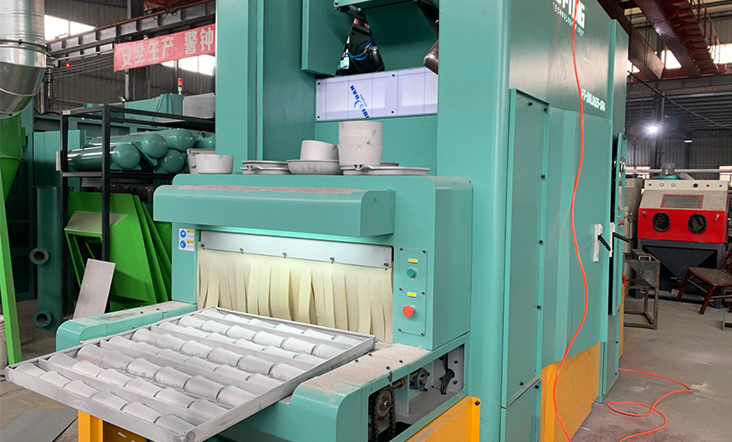

Intelligent conveyor sandblasting machine PT-DXL-0625-12A

Product Description:

PTSF series intelligent conveyor sandblasting machines are PTING’s exclusive patented technology products. It can fully realize digital control. Remote control, dust removal, electrical explosion-proof, intelligent, environmental performance, safety performance design, etc., to achieve the level in the industry.

Scope of Application:

Applied to flat artifacts:

Digital electronics and laptops

Mobile phone modules, optical glass, aluminum alloy profiles, etc.

Applicable Materials:

Metal parts, optical glass, magnetic products, semiconductors, wood products, etc.

Applicable Process:

Cleaning and roughening of the surface of the workpiece, polishing, and grinding, strengthening stress relief

Intelligent conveyor sandblasting machine PT-DXL-0625-12A

PREV：Intelligent conveyor sandblasting machine PT-DXL-1225-16A

NEXT：Intelligent conveyor sandblasting machine PT-ZBP-0625-8A

Parameters

1. Technical advantages: (Achievements of a special research and development team of 6 people)

1. CDX45 dust removal system invention patent (CN306470932S)

2. Invention patent of DXL rotary sandblasting module (CN110757345A)

3. 1225 integrated appearance patent (CN306487847S)

4. Practical patent for XL cyclone dust removal (CN210707506U)

5. PT sandblasting machine control system software copyright (2020SR1013670)

2. Product advantages:

1. Dust removal system: Dust removal efficiency and abrasive separation efficiency increased by 50%

2. Rotary spray gun module: 30% increase in sandblasting efficiency with the same energy consumption.

3. Crawler conveyor: super-tire-resistant crawler with a life of 3-5 years

4. Electrical selection: Schneider, Siemens PLC and touchscreen

5. Materials of the whole machine: The key parts are made of manganese steel, 5 tons in weight.

Device Parameters

Project	Specifications
Available size	Width 800* height 300* length 20000mm
Effective processing size	Width 600* height 250* length 10000mm
Spray gun model and quantity	PTB18 4 12 sticks
Processing line speed	0.3-4.2m/min
Spray gun module type	Fixed rotation module/ swing gun module/ translation module
Product delivery type	Rubber Track/ V-Belt/ Roller/ Roller
Dust removal parameters	5000-5600m³/h 2600Pa
Air source parameters	Maximum 16 guns*1.3m³=23.4m³ recommended 25m³
Power parameters	380V, 50Hz 15KW
Device control method	Smart PLCE-MES Remote
Grade and brand of electrical components	Siemens Schneider SMC Air TAC
Applicable abrasive	10-120# non-metal/ metal abrasive
Abrasive first input amount	350-500kg
Total weight of equipment	4100kg
Host size	520015004200

Accessory Data

	Abrasive Recycle System	Wind Recovery
		Bucket Recovery
	Spray Mechanism	Rotary Module
		Pendulum Gun Module
		Stepper Module

	Conveyor	Belt Conveyor
		Roller Conveyor
		Crawler Conveyor
	Effective Width	80CM
		100CM
		150CM

	Effective Height of Processing Parts	25CM
		30CM
		45CM
	Number of Spray Guns	8
		16
		32

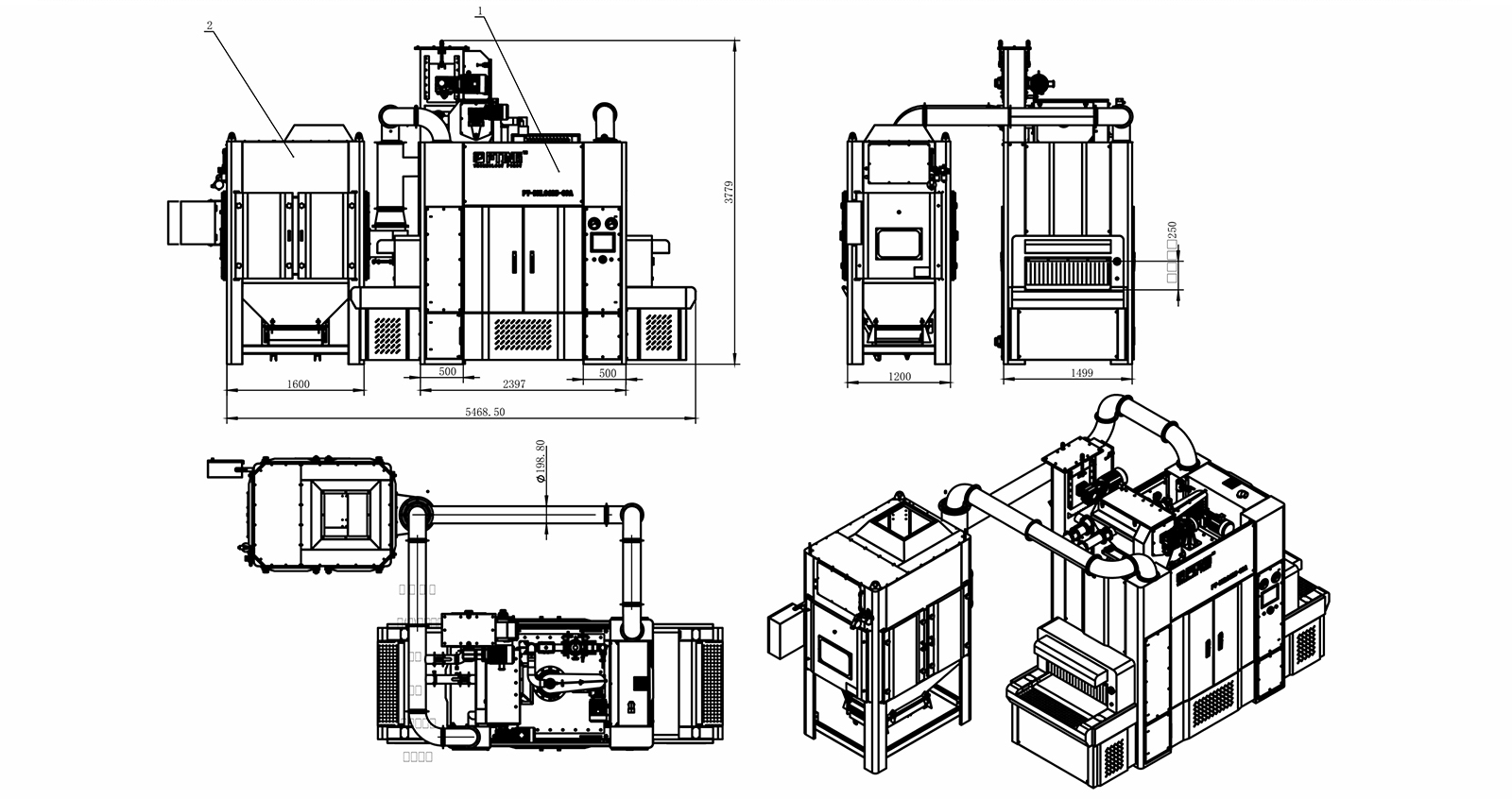

Equipment Structure Size

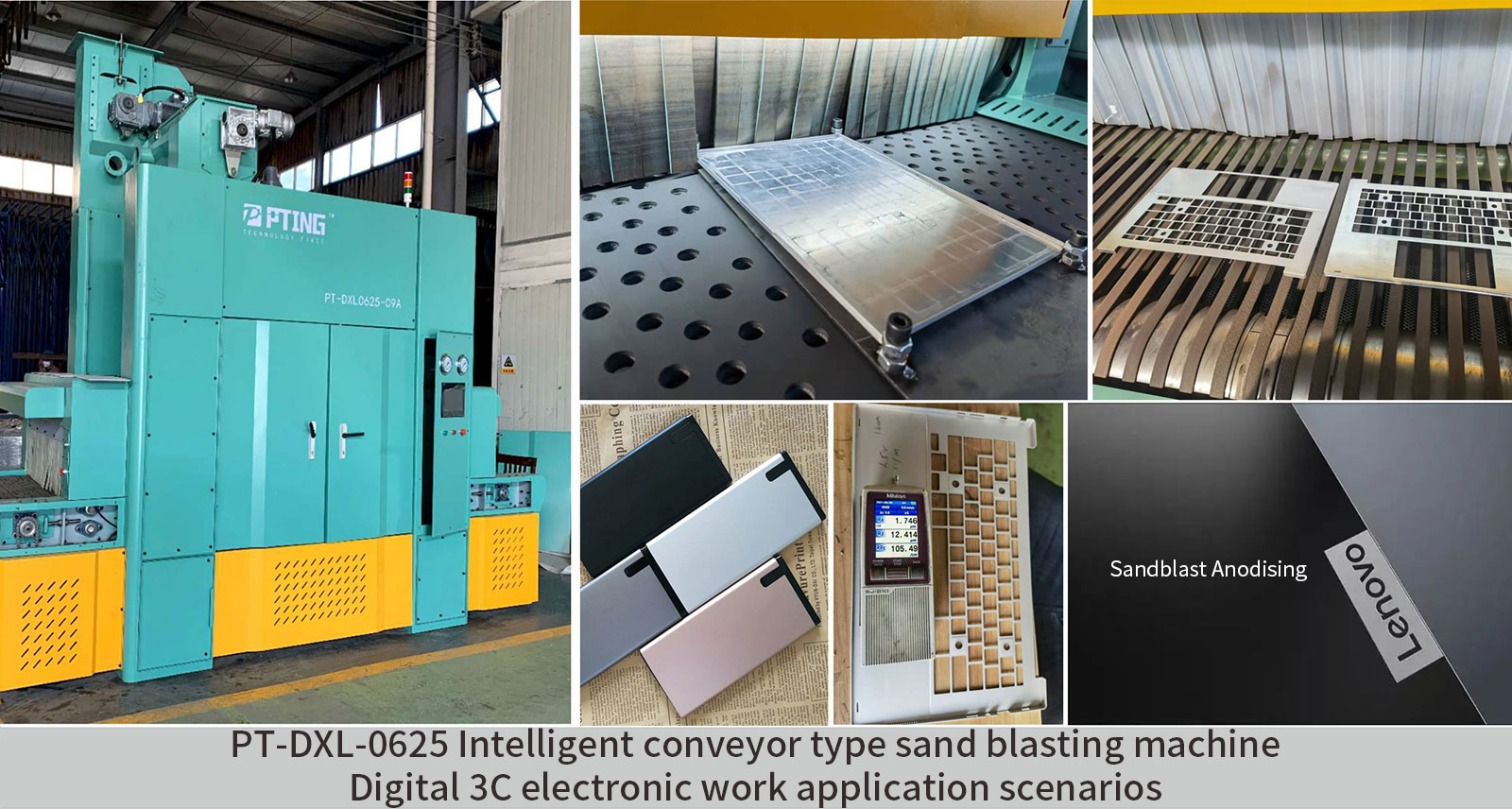

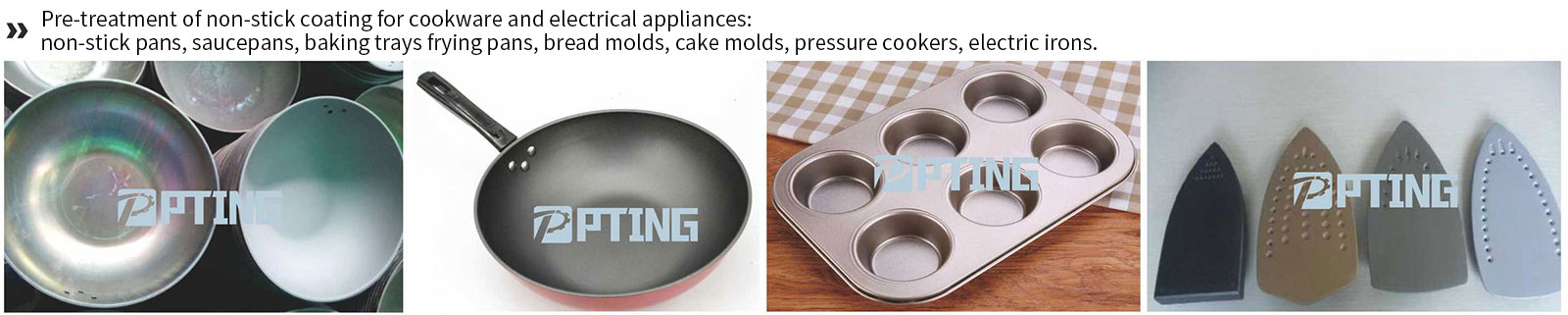

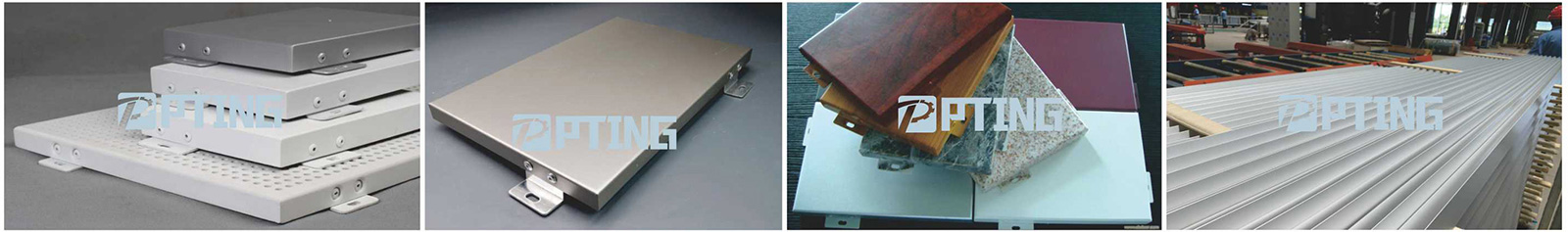

Product Application Field

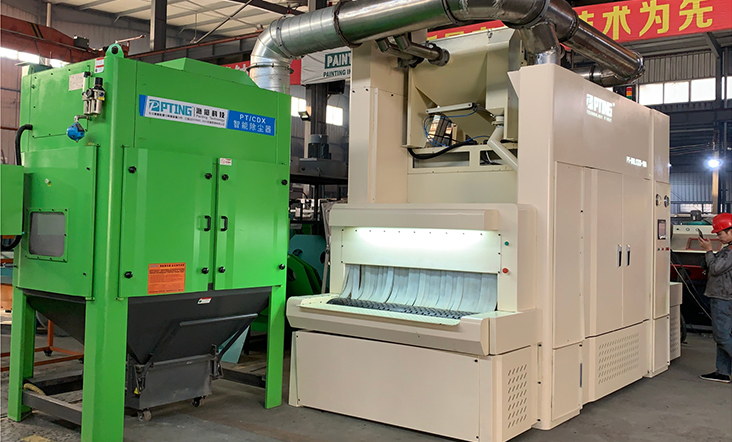

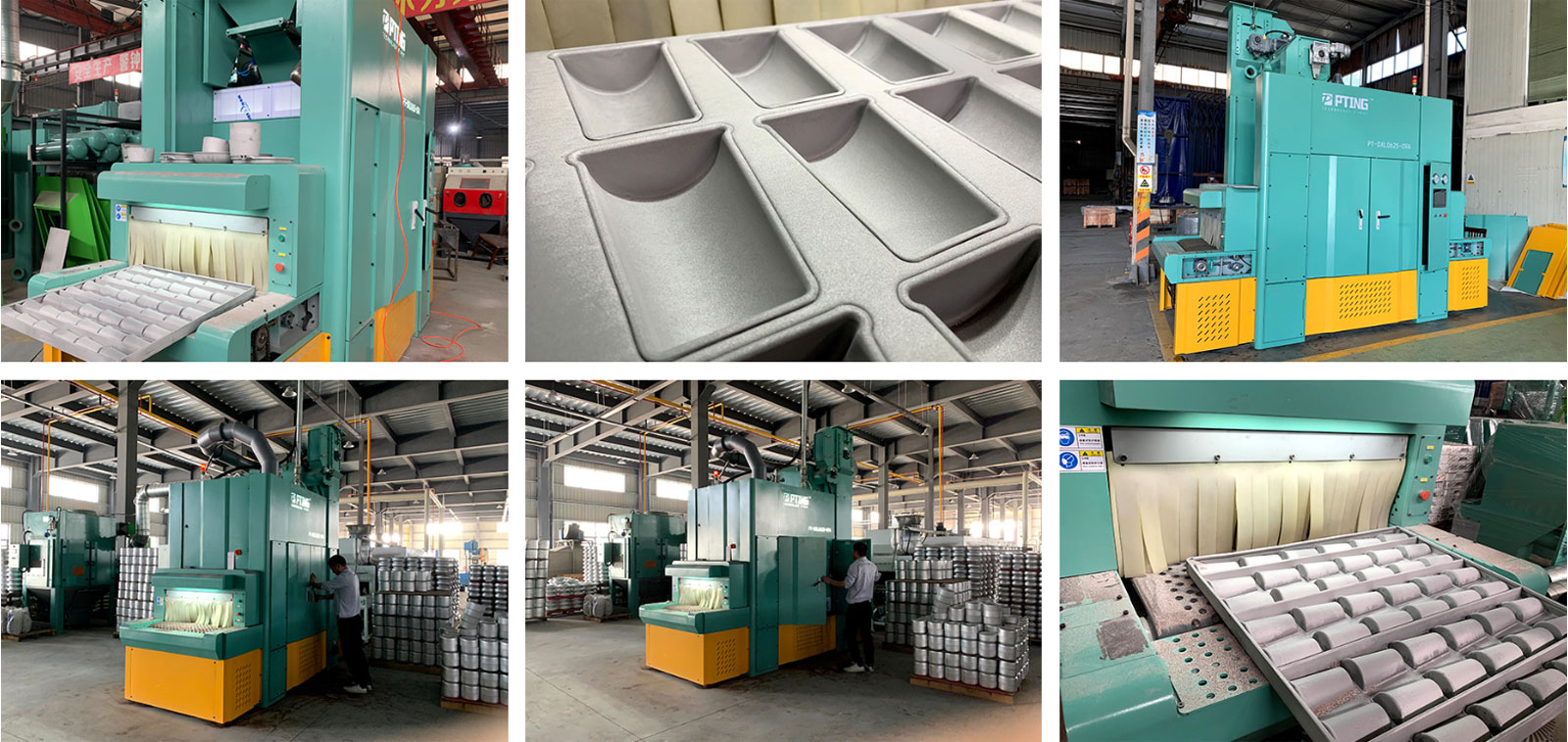

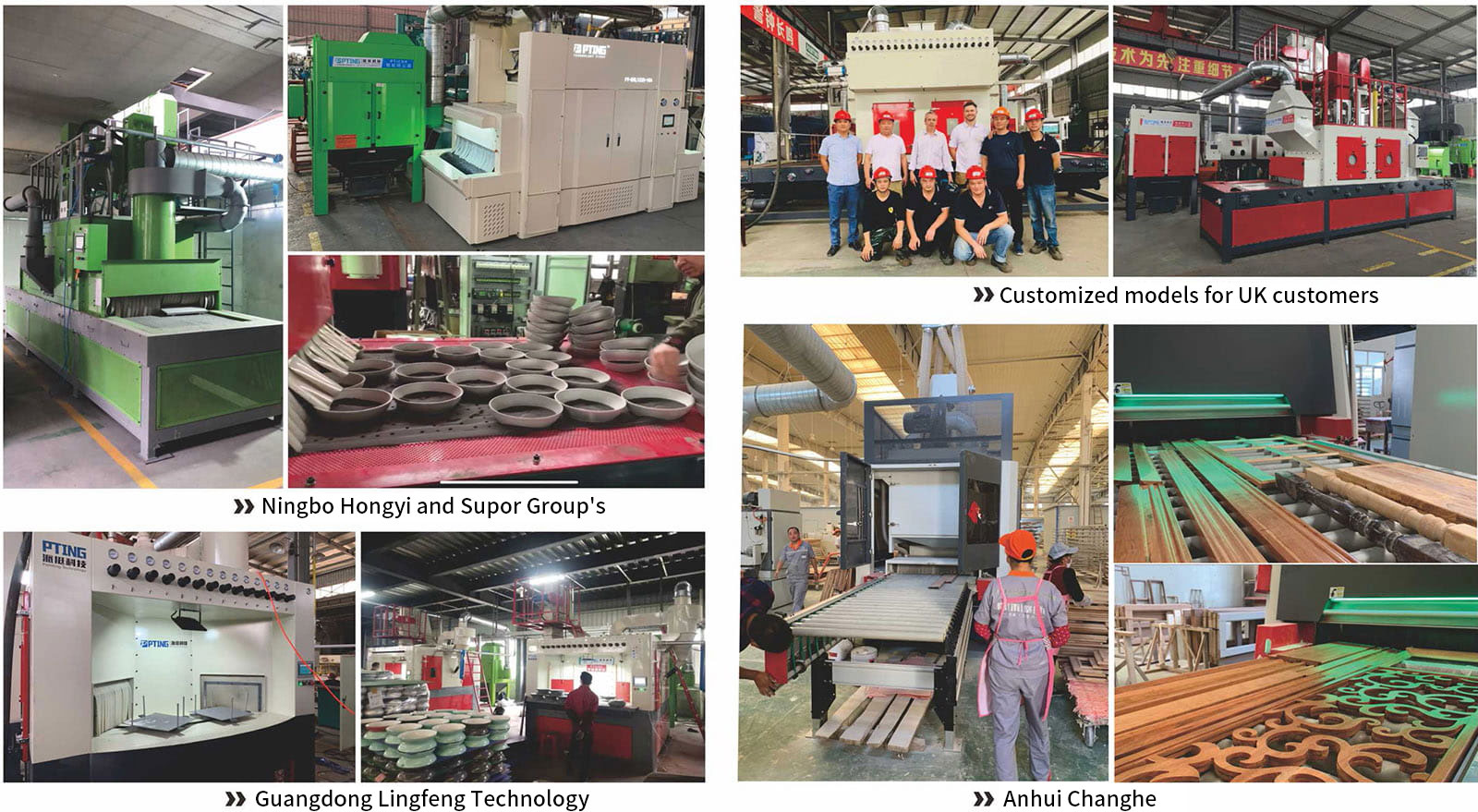

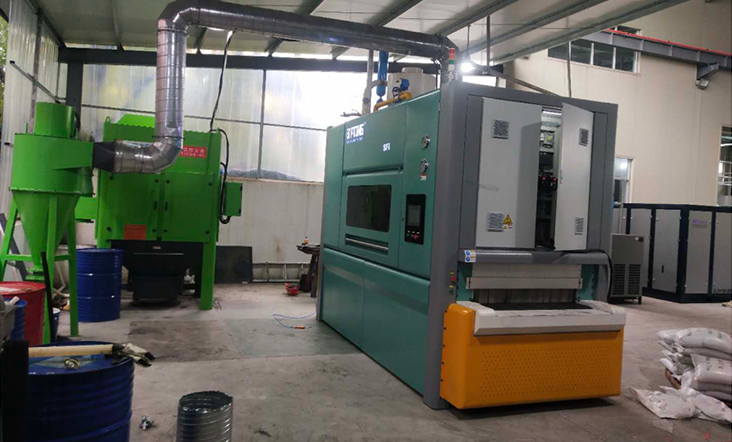

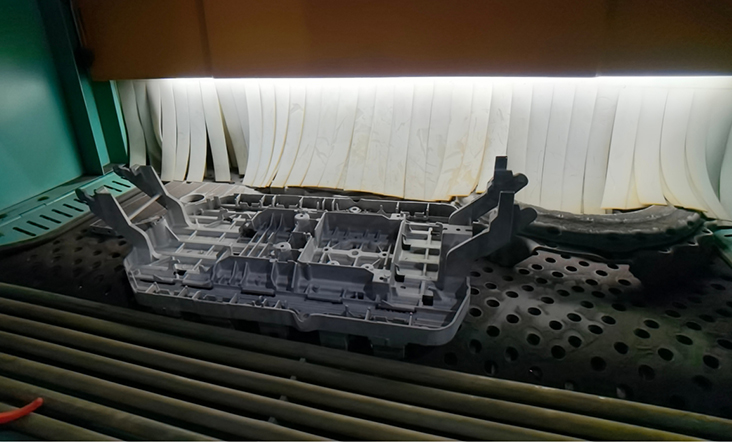

User Scenario
