Rotary table sandblasters

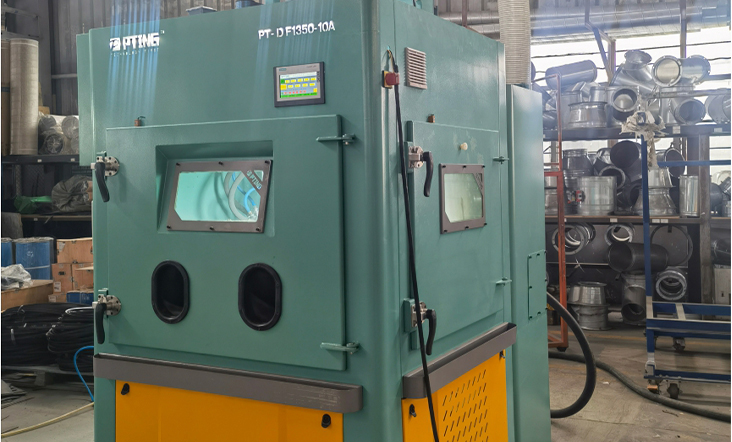

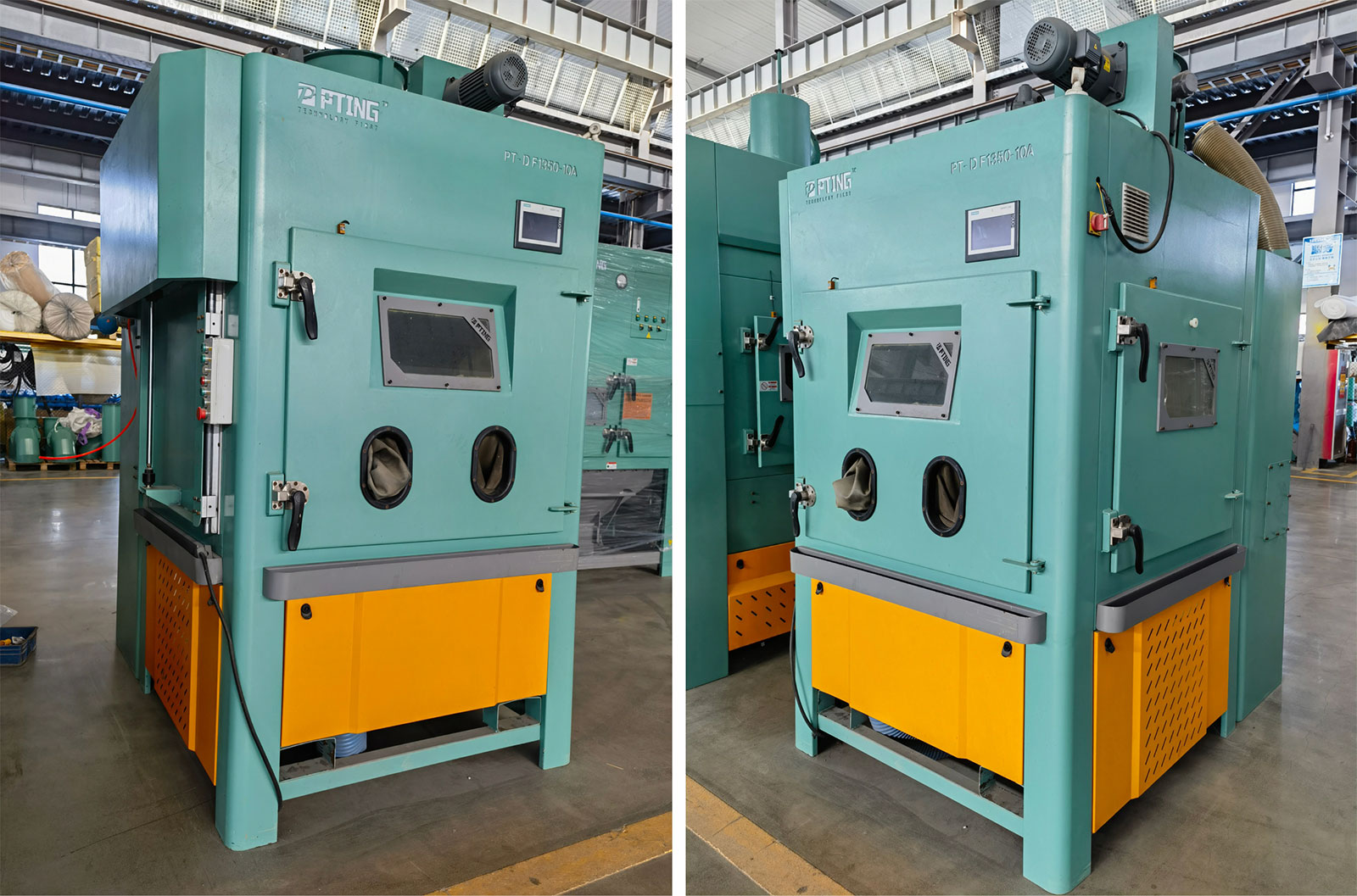

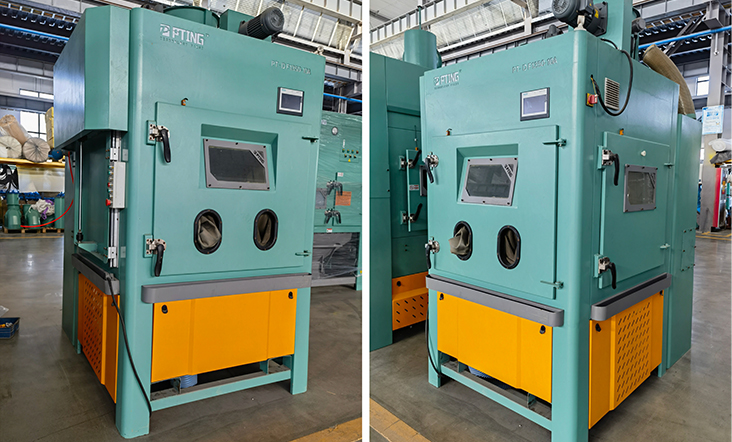

Multifunctional Rotary Sandblasting Machine PT-TD1350-10A

Product Description

PTDF series multifunctional integrated sandblasting machine is a multifunctional sandblasting equipment integrating automatic turntable, automatic roller, and manual operation. The spray gun module can choose to rotate, lift swing, and fix in various ways. The scope of application is extremely wide, the equipment is small in size, and it can realize small and medium batch production. It is an ideal intelligent automatic sandblasting equipment.

Scope of Application

Molds, castings, components, hardware parts,

Target materials, magnetic materials, pre-treatment parts for electric forgings, etc.

Multifunctional Rotary Sandblasting Machine PT-TD1350-10A

PREV：High Pressure Rotary Sandblasting Machine PT-DFP1200

NEXT：Intelligent rotary sandblasting machine PT-TF1800-16A

Parameters

1. Technical advantages: (special research and development team achievements)

1. All-in-one machine structure patent (CN306470932S)

2. 1350 integrated appearance patent (CN3064878473S)

3. Practical patent for XD cyclone dust removal (CN210707522U)

4. Software copyright of PT rotary sandblasting machine (2020SR1013670)

2. Product advantages:

1. Dust removal system: Dust removal efficiency and abrasive separation efficiency increased by 50%

2. Rotary spray gun module: Sandblasting efficiency increased by 30% with the same energy consumption

3. Servo turntable: fast and precise, meeting the needs of robots for loading and unloading

4. Electrical selection: Schneider, Siemens PLC and touchscreen

5. The material of the whole machine: The key parts are made of manganese steel, and the weight is 2T

Device Parameters

Project	Specifications
With turntable diameter	Diameter 900mm
Effective processing size	Diameter 900*height 350mm
Sandblasting gun model and quantity	PTB2 9 pieces
Production beat	60-360s/ beat
Spray gun module type	Oscillating/ rotating/ translating/ translating lift/ manipulator
Turntable positioning type	Servo/ Index
Dust removal equipment	3000-3600m³/h 2600Pa
Air source parameters	Maximum 9 guns*1.3m³=11.7m³ recommended 13m³
Power parameters	380V, 50Hz 14KW
Device control method	Smart PLC E-MES Remote
Grade and brand of electrical components	Siemens Schneider SMC AirTAC
Applicable abrasive	10-120 # non-metallic/ metallic abrasive
Abrasive first input amount	100kg
Total weight of equipment	1800kg
Host size	1350019484225mm

Accessory Data

	Abrasive Recycle System	Wind Recovery
		Bucket Recovery
	Spray Mechanism	Rotary Module
		Pendulum Gun Module
		Stepper Module

	Conveyor	Belt Conveyor
		Roller Conveyor
		Crawler Conveyor
	Effective Length Width	80CM
		100CM
		150CM

	Effective Height of Processed Processing Parts	25CM
		30CM
		45CM
	Number of Spray Guns	8
		16
		32

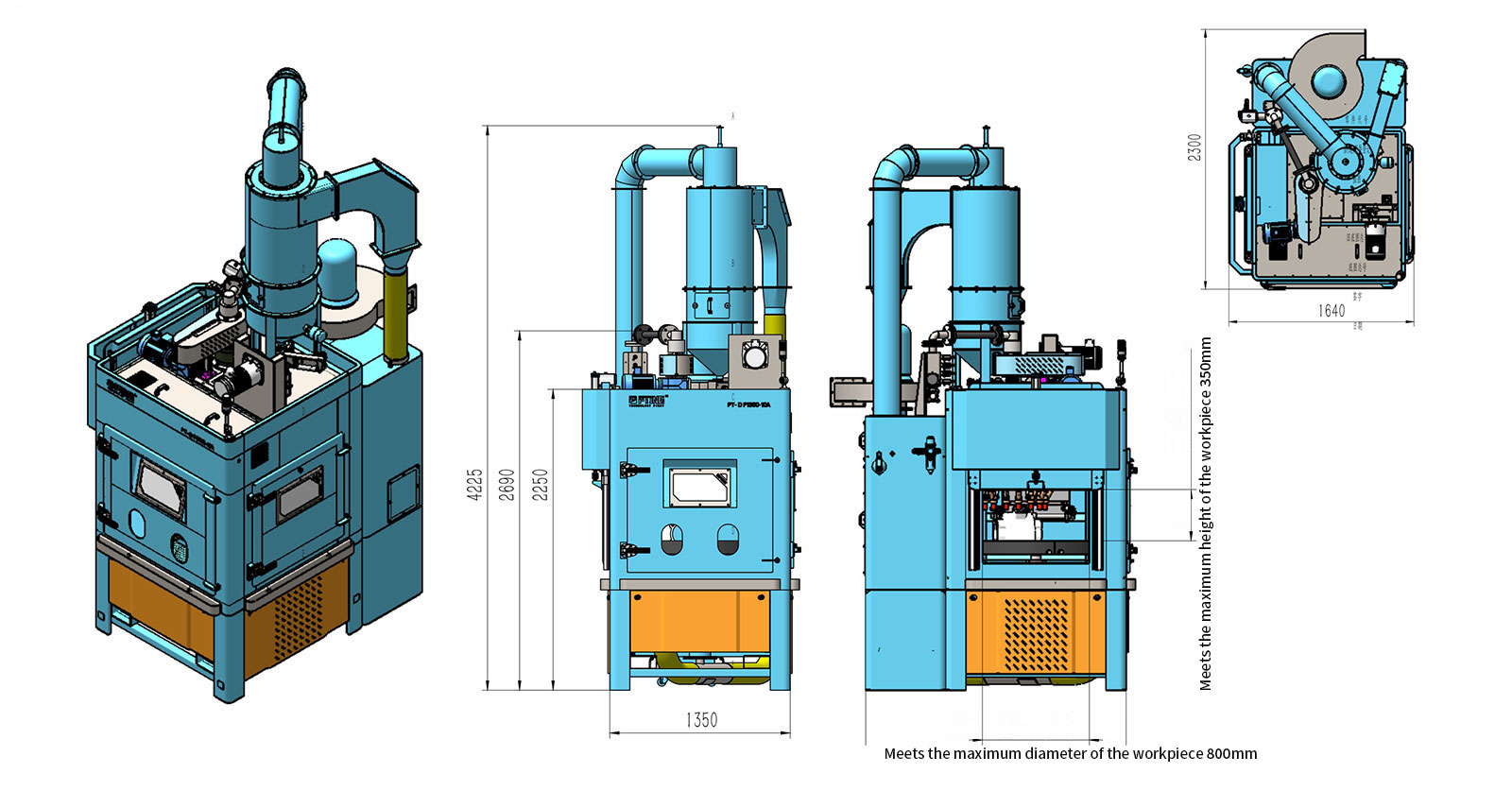

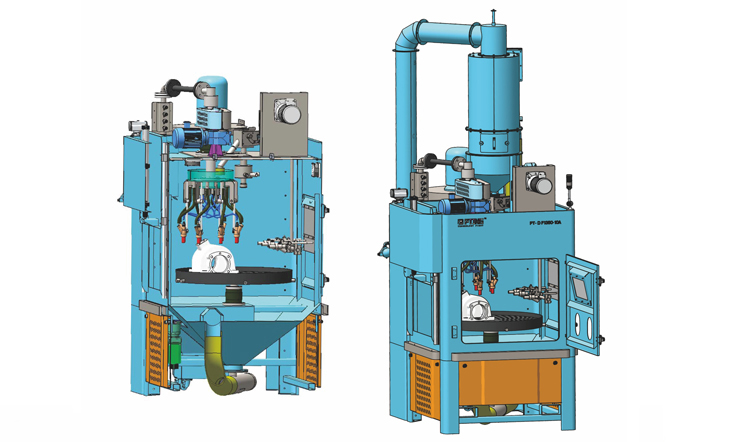

Equipment Structure Size

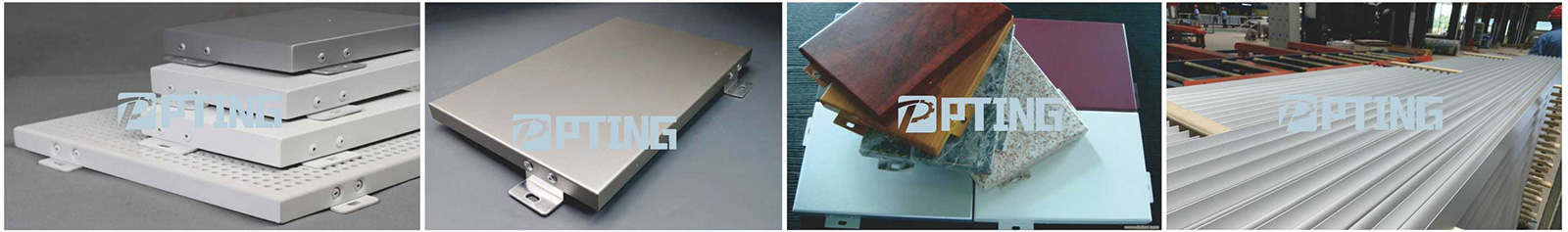

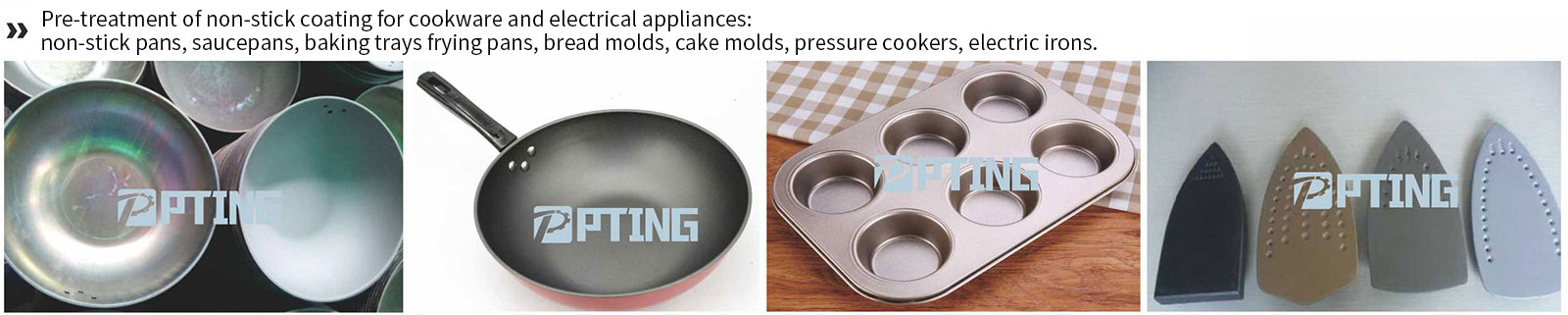

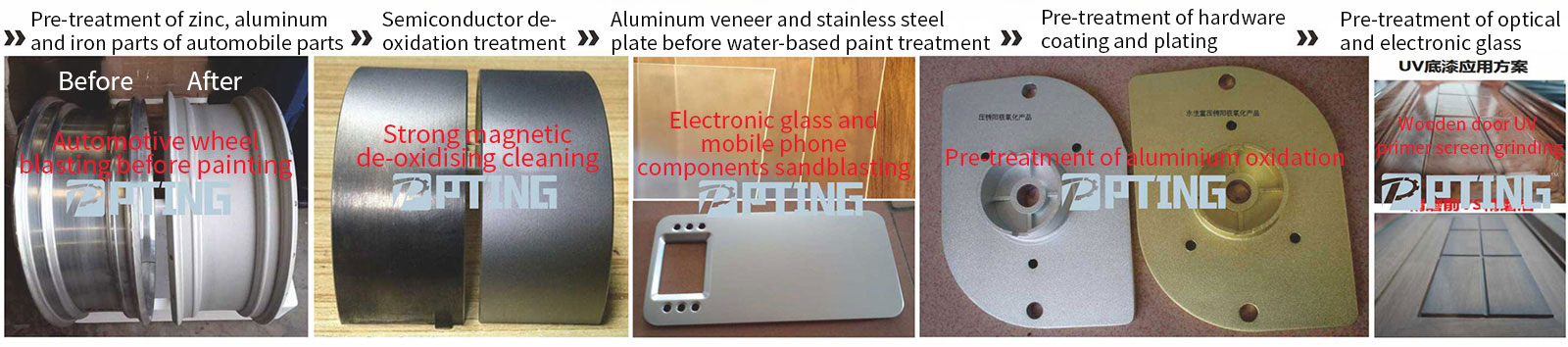

Product Application Field

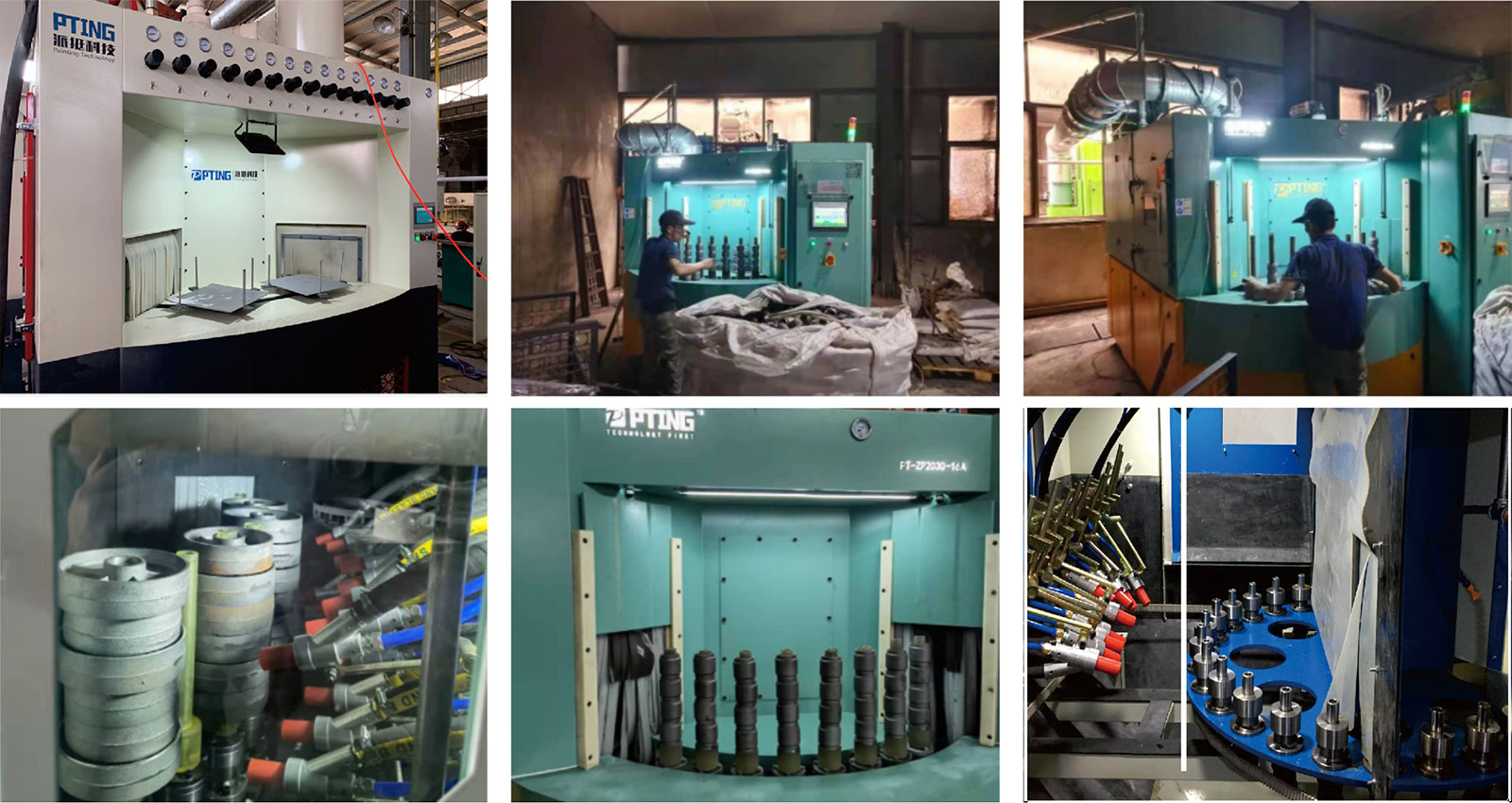

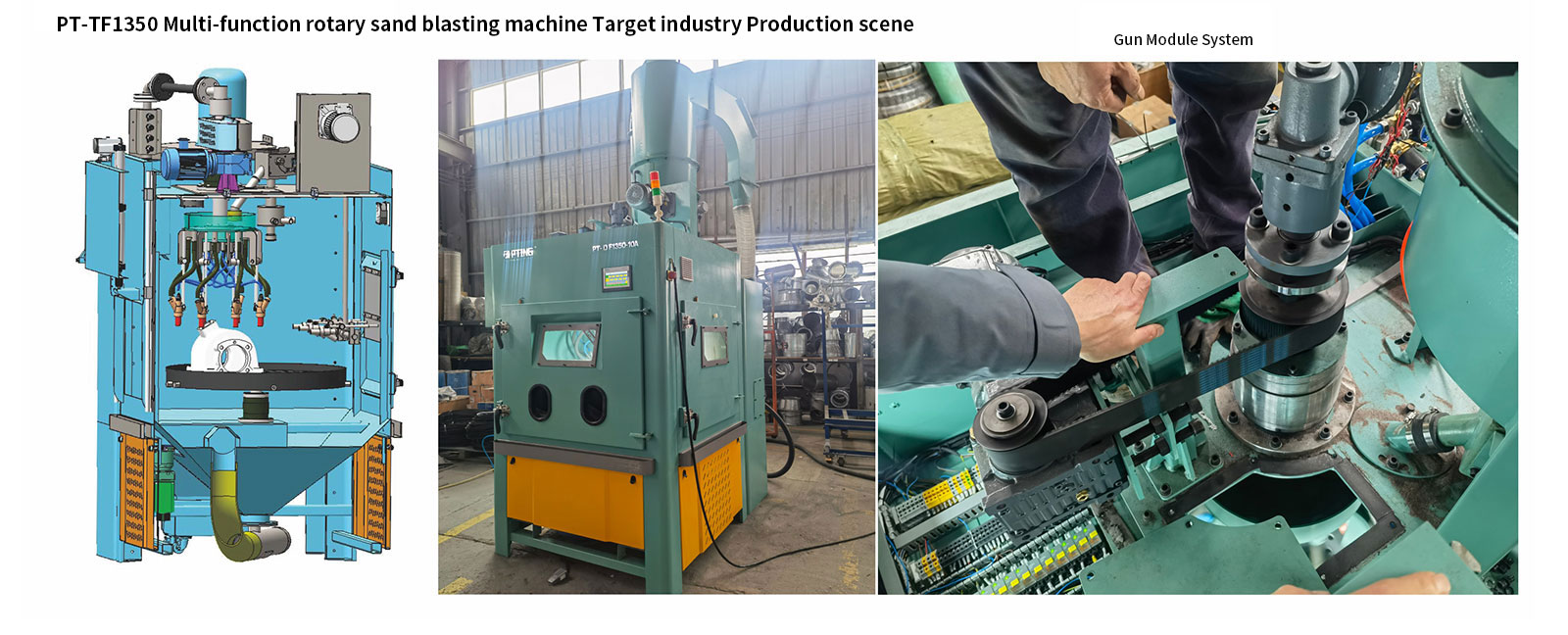

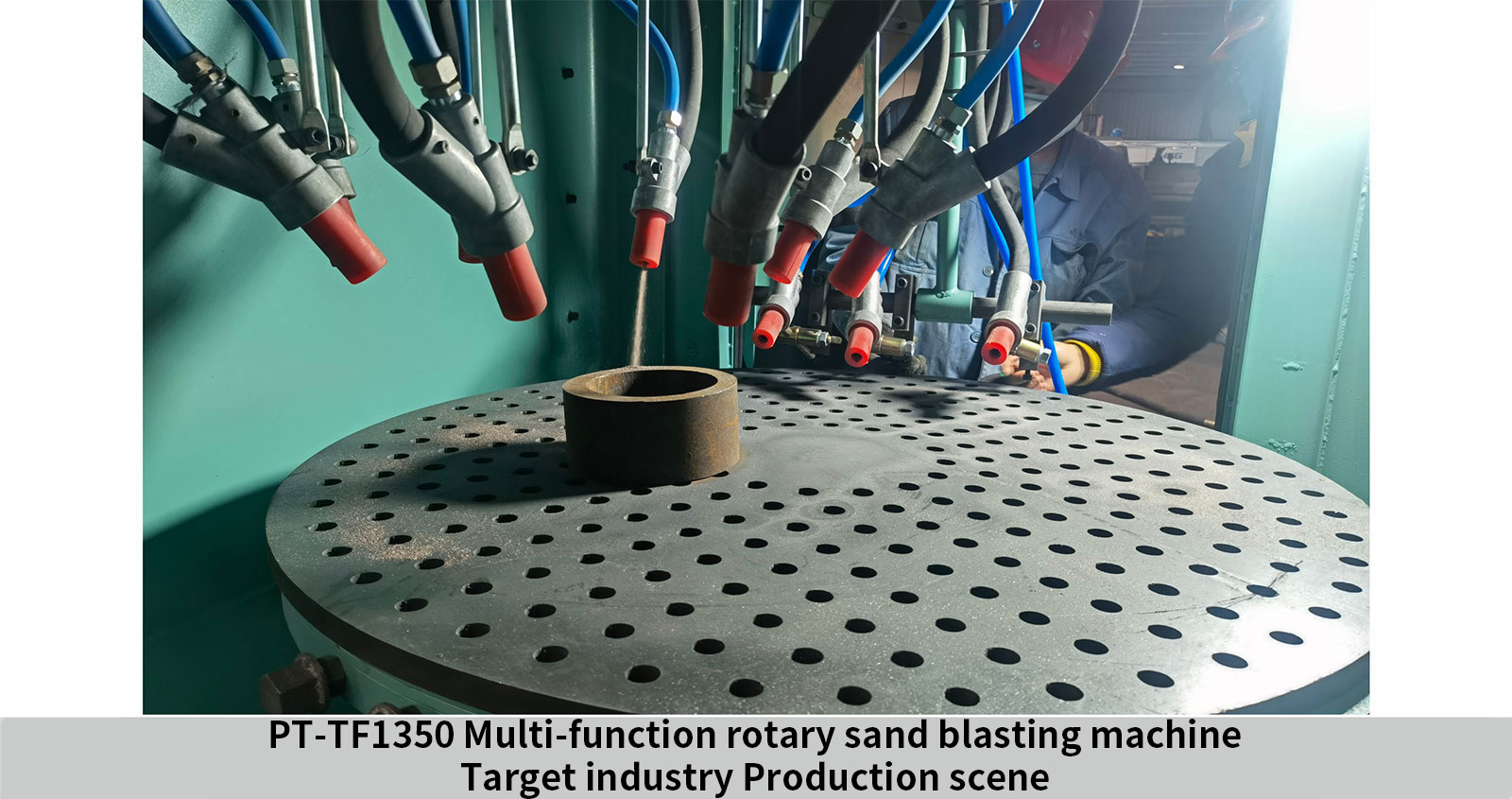

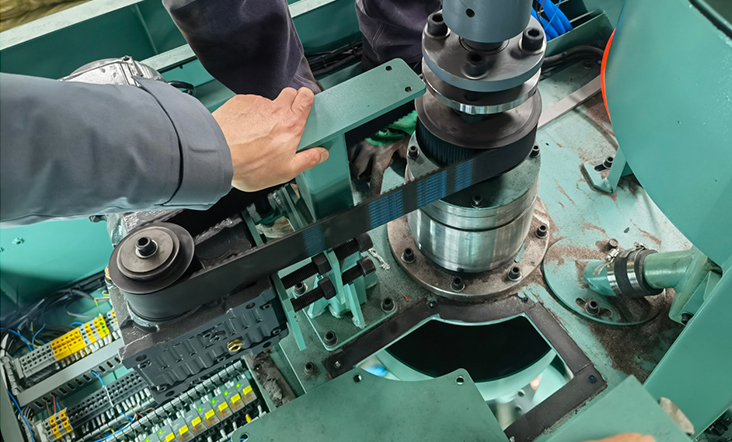

User Scenario
