Manual Sandblasting Machine PT-M9090B Wholesale

Home / Products / Intelligent sandblasting equipment / Manual blasting machines / Manual Sandblasting Machine PT-M9090B

Manual blasting machines

Manual Sandblasting Machine PT-M9090B

Product Description

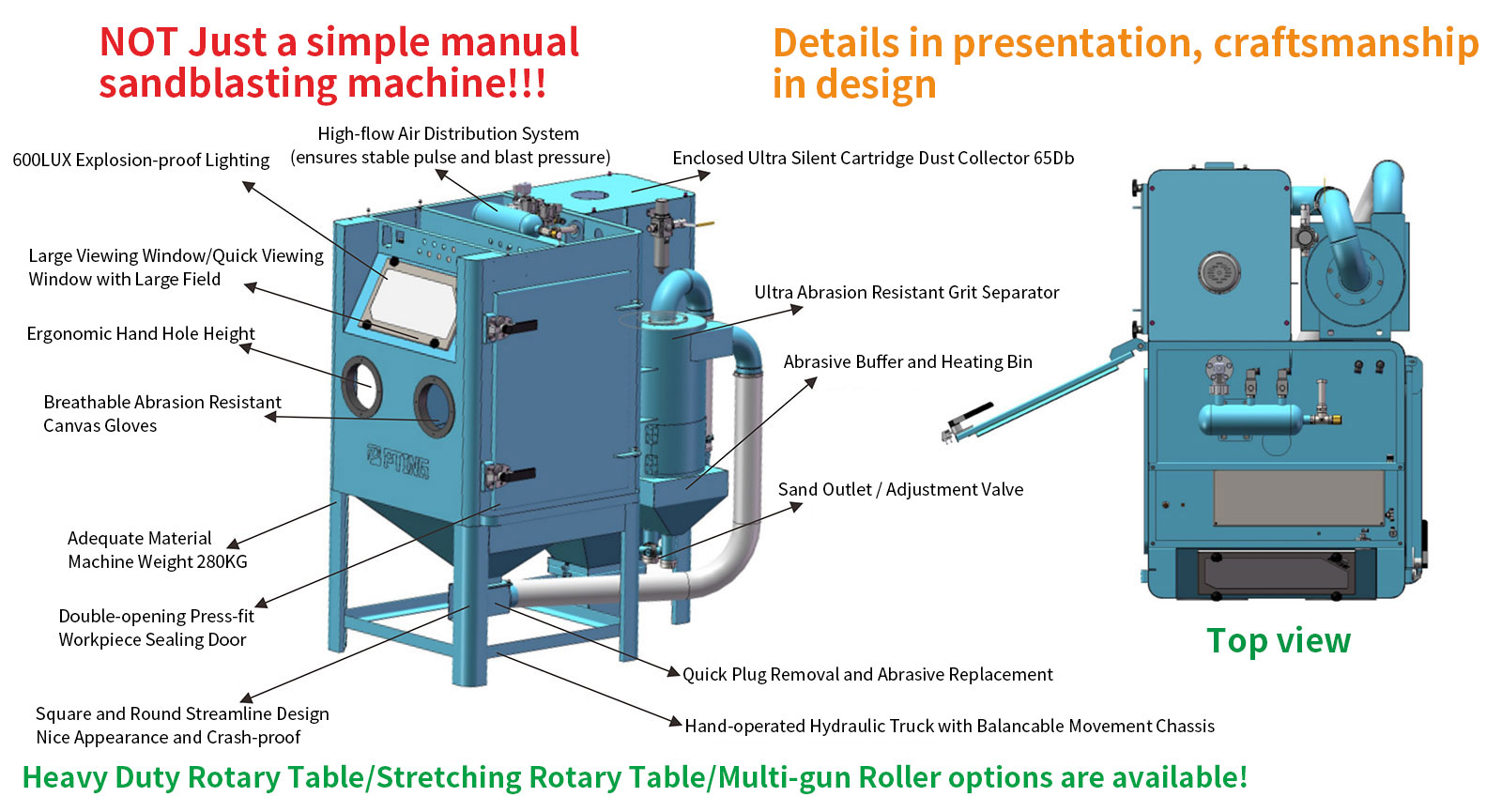

PTM series manual sandblasting machine adopts an integrated design, easy to replace abrasives, easy to overhaul, fine-tuned abrasive separation particle size, equipped with air collection bag, stable spray gun, and pulse pressure, good sealing performance of the chamber, noise only 60Db, beautiful appearance of the equipment, optional trolley, drum, abrasive heating, and other configurations.

Scope of Application

Mold, Sanitary Ware, Components, Hardware Parts,

Medical equipment, magnetic materials, pre-treatment parts for electroplating parts, etc.

Contact Us

Parameters

Device Parameters

Project Specifications
Work cabin size  Length 900* Width 900* Height 500mm
Effective processing size Diameter 700* height 450mm
Spray gun model and quantity PTB2 1-4 sticks
Productivity 2-4 square meters/h
Spray gun module type Spring manual/ bracket fixed
Turntable type Heavy-Duty Carts/ Stretching in Troughs
Dust removal parameters 1000/ 1200m³/ h900Pa
Air source parameters Maximum 3 guns*1.3m³=3.9m³ recommended 4
Power parameters 380V, 50Hz 770W
Device control method Relay Control Smart Pulse
Grade and brand of electrical components Chint/ Schneider SMC
Applicable abrasive 10-120# non-metal/ metal abrasive
Abrasive first input amount 10KG
Total weight of equipment 260KG
Host size 1550*948*1700mm

*Parameter configuration is subject to modification without prior notice*

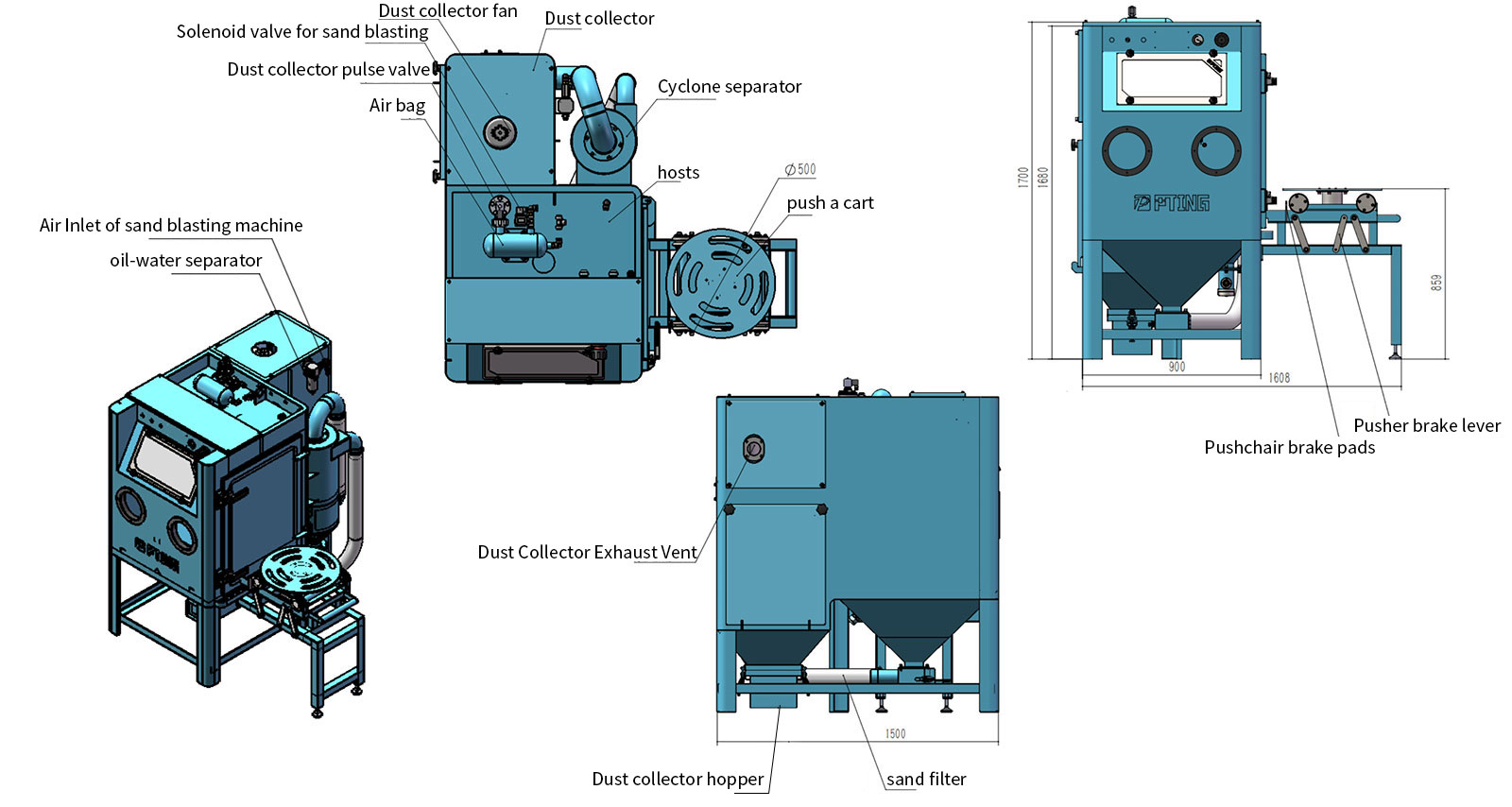

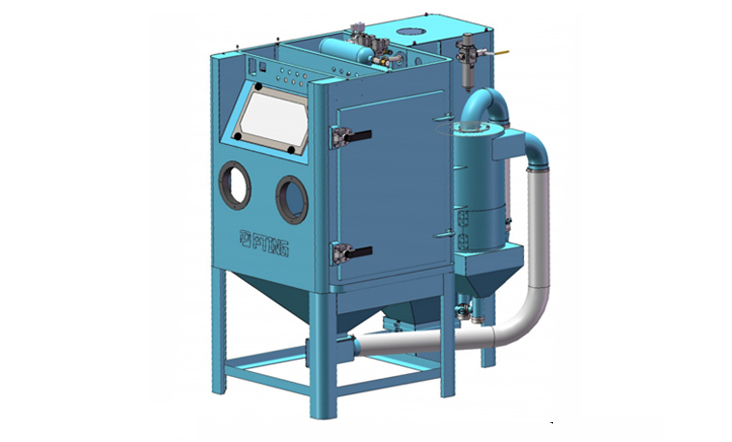

Equipment Structure Size

Product Application Field

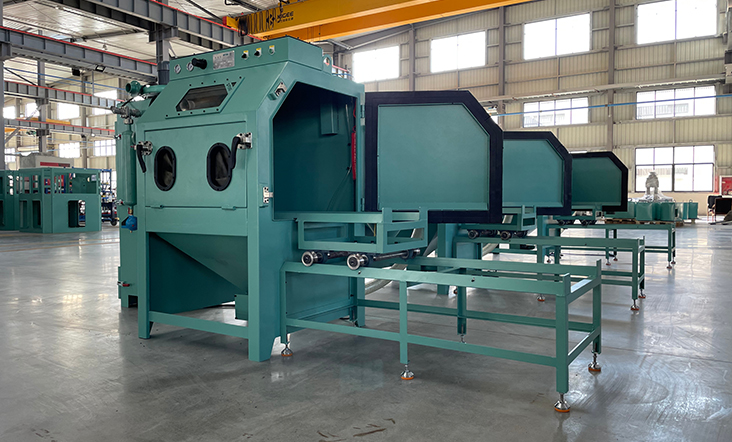

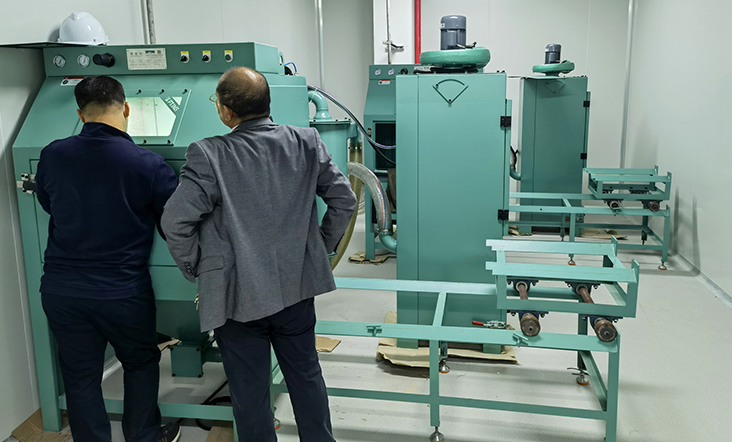

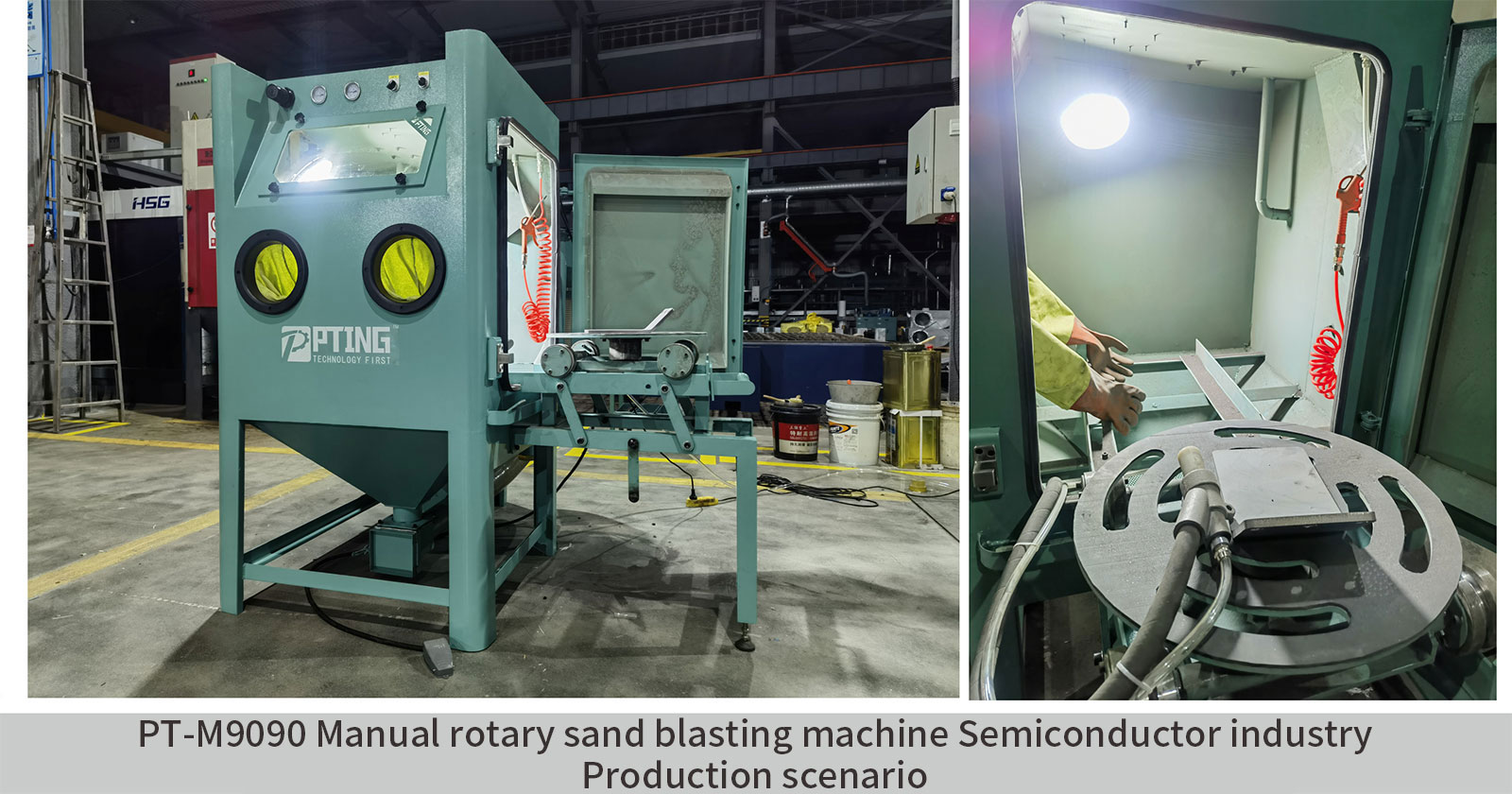

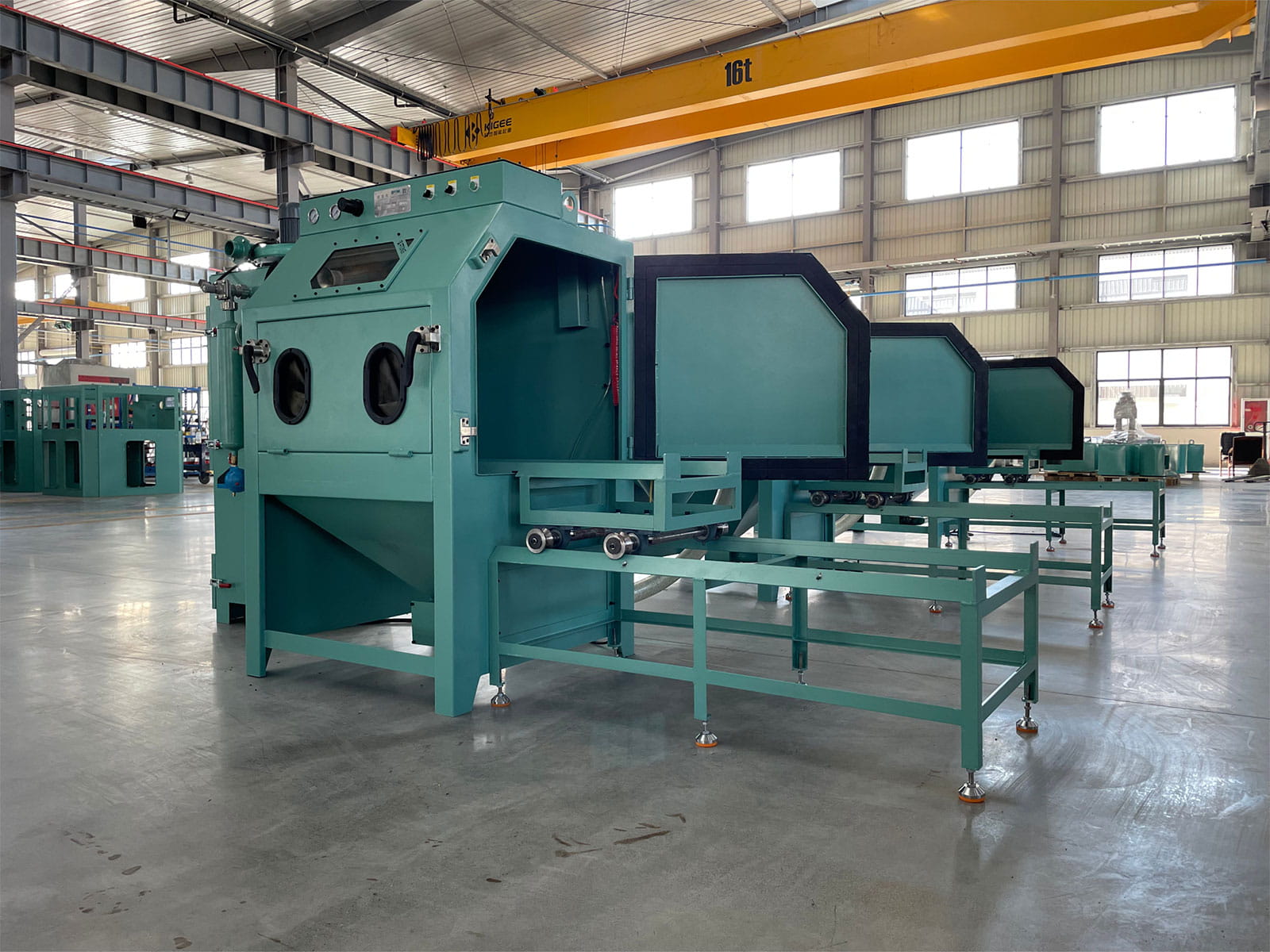

User Scenario
