Conveyor Type Blasting Machines

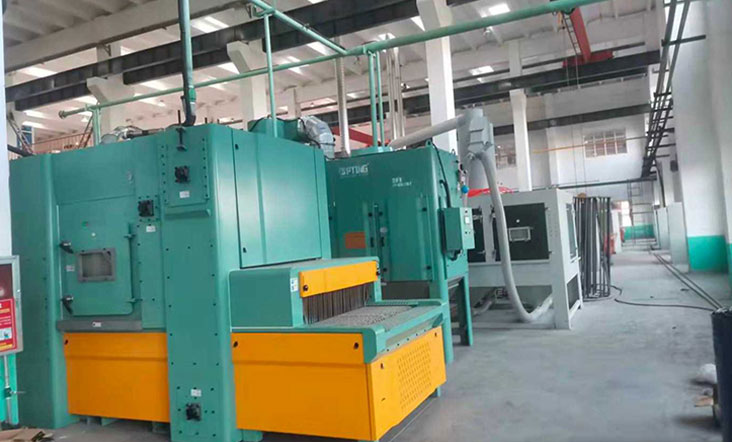

Intelligent conveyor sandblasting machine PT-DXL-1225-16A

Product Description

PTSF series intelligent sandblasting machine is a product with multiple patents. It has reasonable structure, flexible configuration, advanced control system, and easy installation. It is also reliable and stable operation with high-end appearance. The comprehensive technical performance is far superior to similar products in the world.

Scope of Application

1. Applied to flat artifacts:

2. Cookware, pots, aluminum plates, profile digital accessories

3. Glass, auto parts, hardware, building materials, etc.

Applicable Materials:

Metal parts, optical glass, magnetic products, semiconductors, wood products, etc.

Applicable Process:

Cleaning and roughening of work surfaces, polishing and grinding, and strengthening stress relief.

Intelligent conveyor sandblasting machine PT-DXL-1225-16A

PREV：Intelligent Conveyor Sandblasting Machine PT-DXL-1650-32A

NEXT：Intelligent conveyor sandblasting machine PT-DXL-0625-12A

Parameters

1. Technical advantages: (Achievements of a special research and development team of 6 people)

1. CDX45 dust removal system invention patent (CN306470932S)

2. Invention patent of DXL rotary sandblasting module (CN110757345A)

3. 1225 integrated appearance patent (CN306487847S)

4. Practical patent for XL cyclone dust removal (CN210707506U)

5. PT sandblasting machine control system software copyright (2020SR1013670)

2. Product advantages:

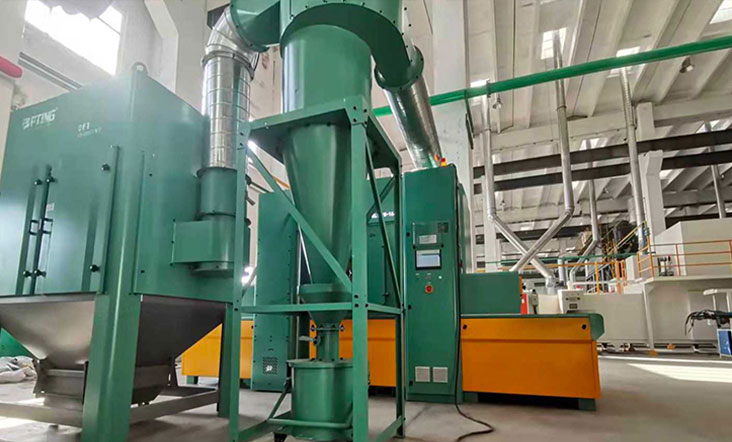

1. Dust removal system: Dust removal efficiency and abrasive separation efficiency increased by 50%

2. Rotary spray gun module: 30% increase in sandblasting efficiency with the same energy consumption.

3. Crawler conveyor: super-tire-resistant crawler with a life of 3-5 years

4. Electrical selection: Schneider, Siemens PLC and touchscreen

5. Materials of the whole machine: The key parts are made of manganese steel, 5 tons in weight.

Device Parameters

Project	Specifications
Available size	Width 1200height 300length 20000mm
Effective processing size	Width 1100height 250length 10000 mm
Spray gun model and quantity	PTB18 4 16 sticks
Processing line speed	0.3-4.2m/min
Spray gun module type	Fixed rotation module/swing gun module/translation module
Product delivery type	Rubber Track/V-Belt/Roller/Roller
Dust removal parameters	5000-5600 m3/h 2600Pa
Air source parameters	Maximum 16 guns*1.3m=23.4m recommended 25 m
Power parameters	380V50Hz 15KW
Device control method	Smart PLCE-MES Remote
Grade and brand of electrical components	Siemens Schneider SMC AirTAC
Applicable abrasive	10-120# non-metal/metal abrasive
Abrasive first input amount	350-500 kg
Total weight of equipment	5100kg
Host size	520018003600

Accessory Data

	Abrasive Recycle System	Wind Recovery
		Bucket Recovery
	Spray Mechanism	Rotary Module
		Pendulum Gun Module
		Stepper Module

	Conveyor	Belt Conveyor
		Roller Conveyor
		Crawler Conveyor
	Effective Length Width	80CM
		100CM
		150CM

	Effective Height of Processed Processing Parts	25CM
		30CM
		45CM
	Number of Spray Guns	8
		16
		32

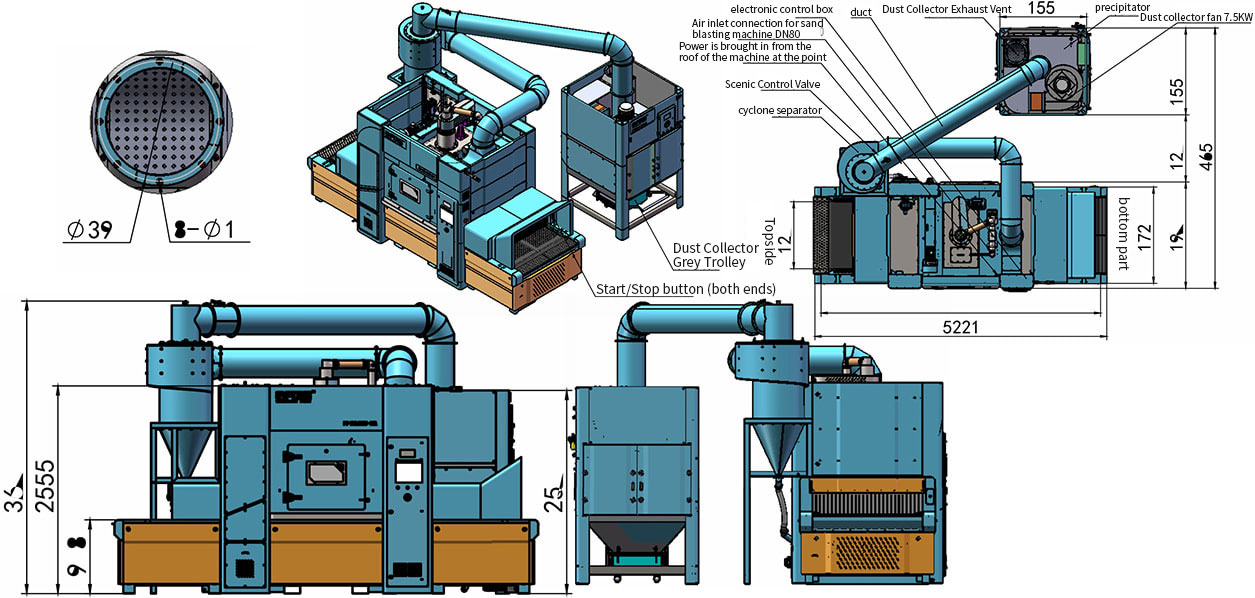

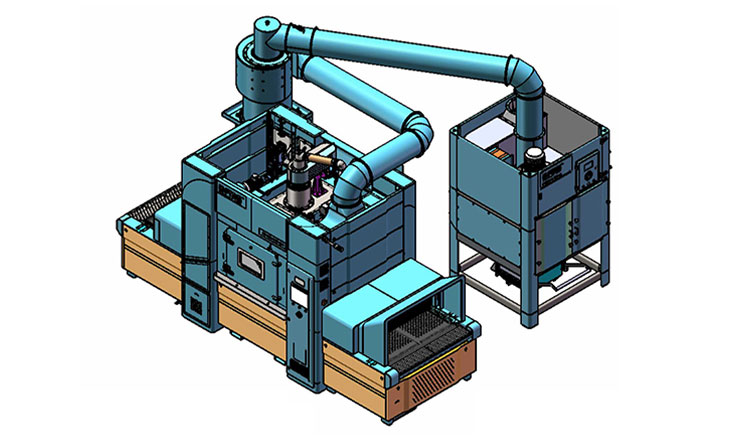

Equipment Structure Size

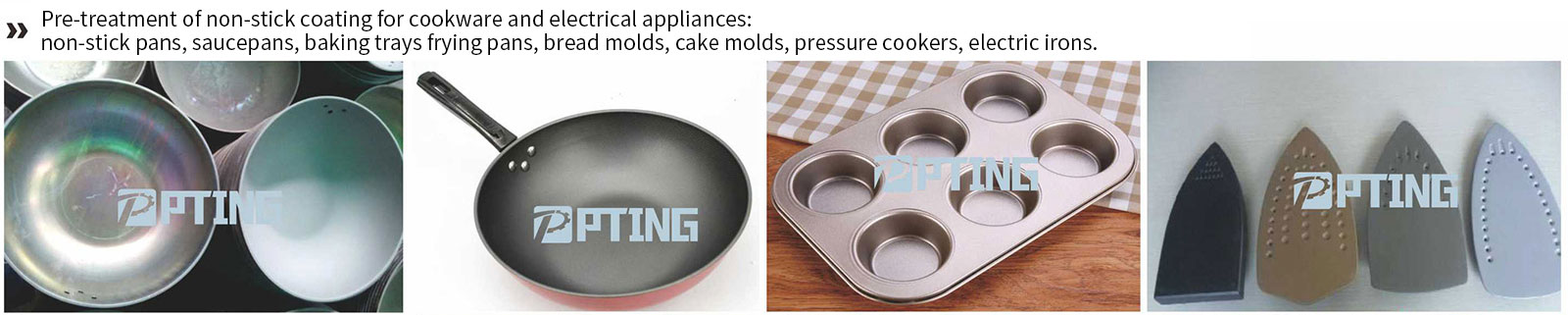

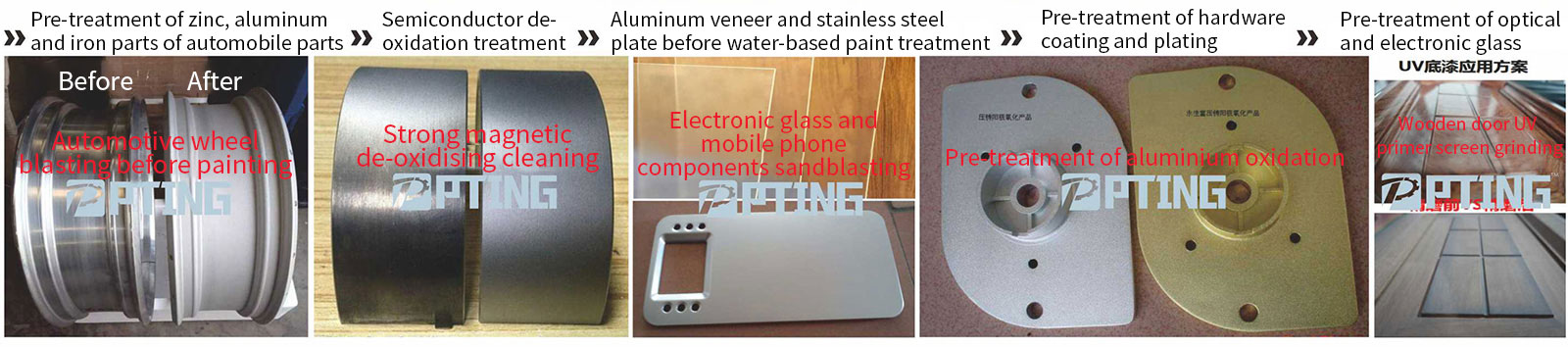

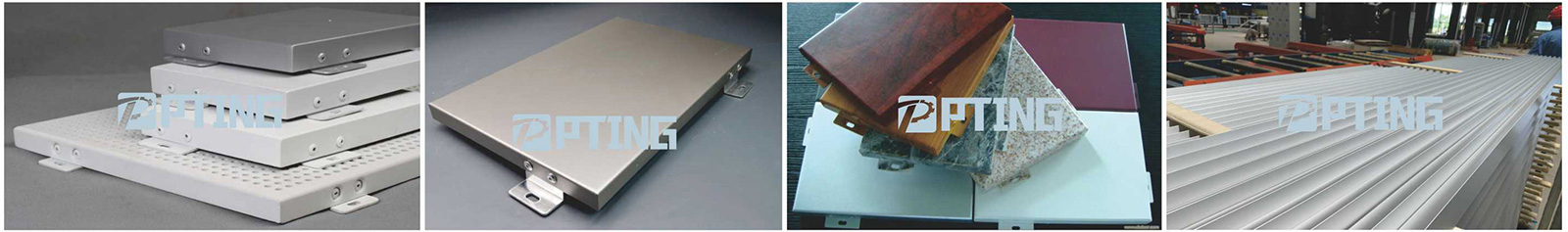

Product Application Field

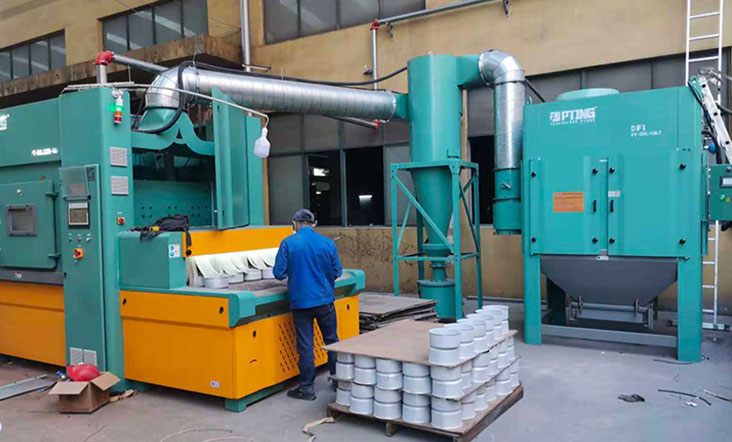

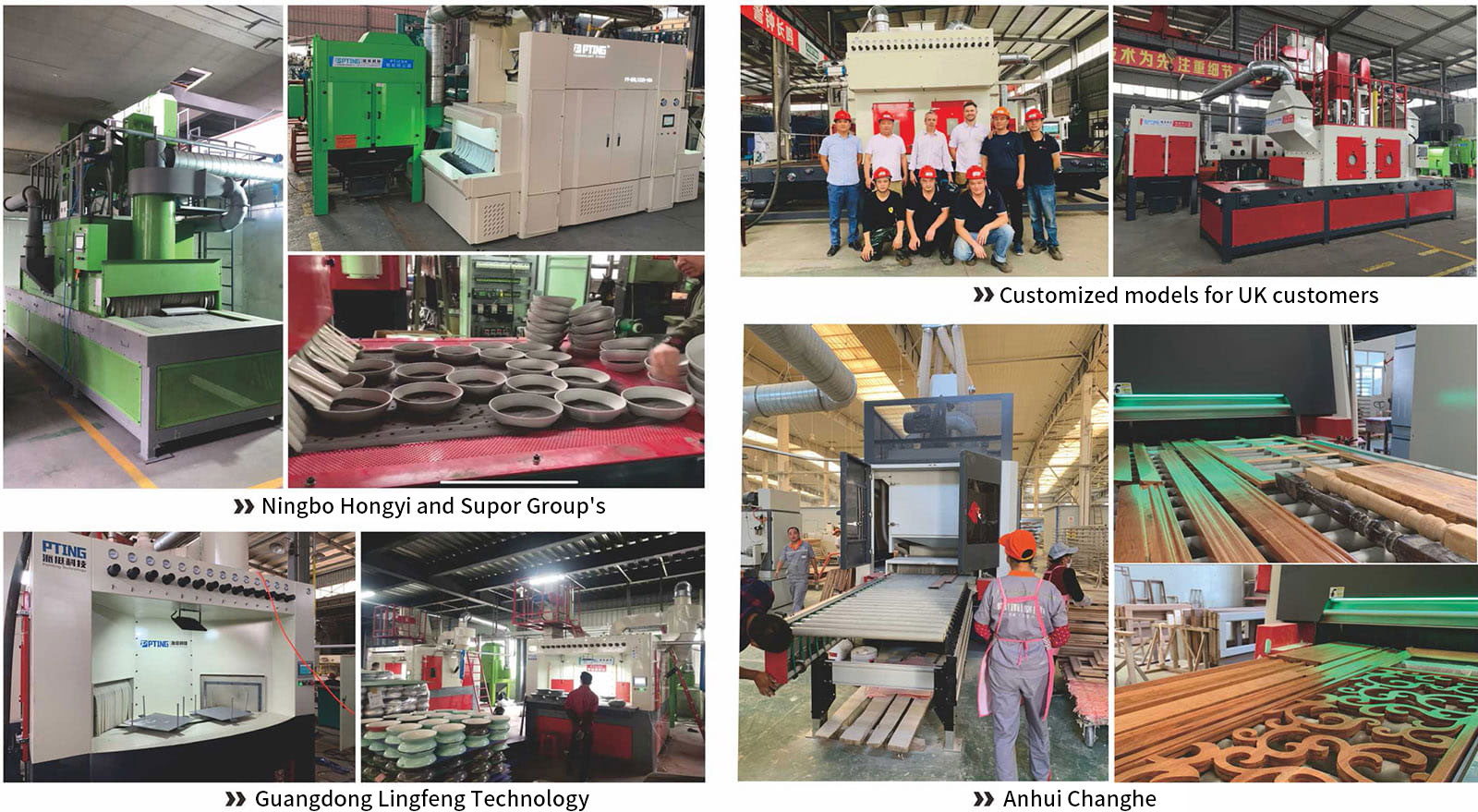

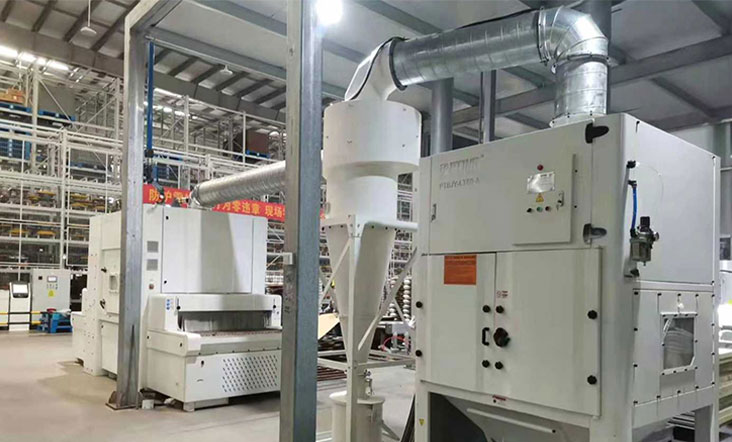

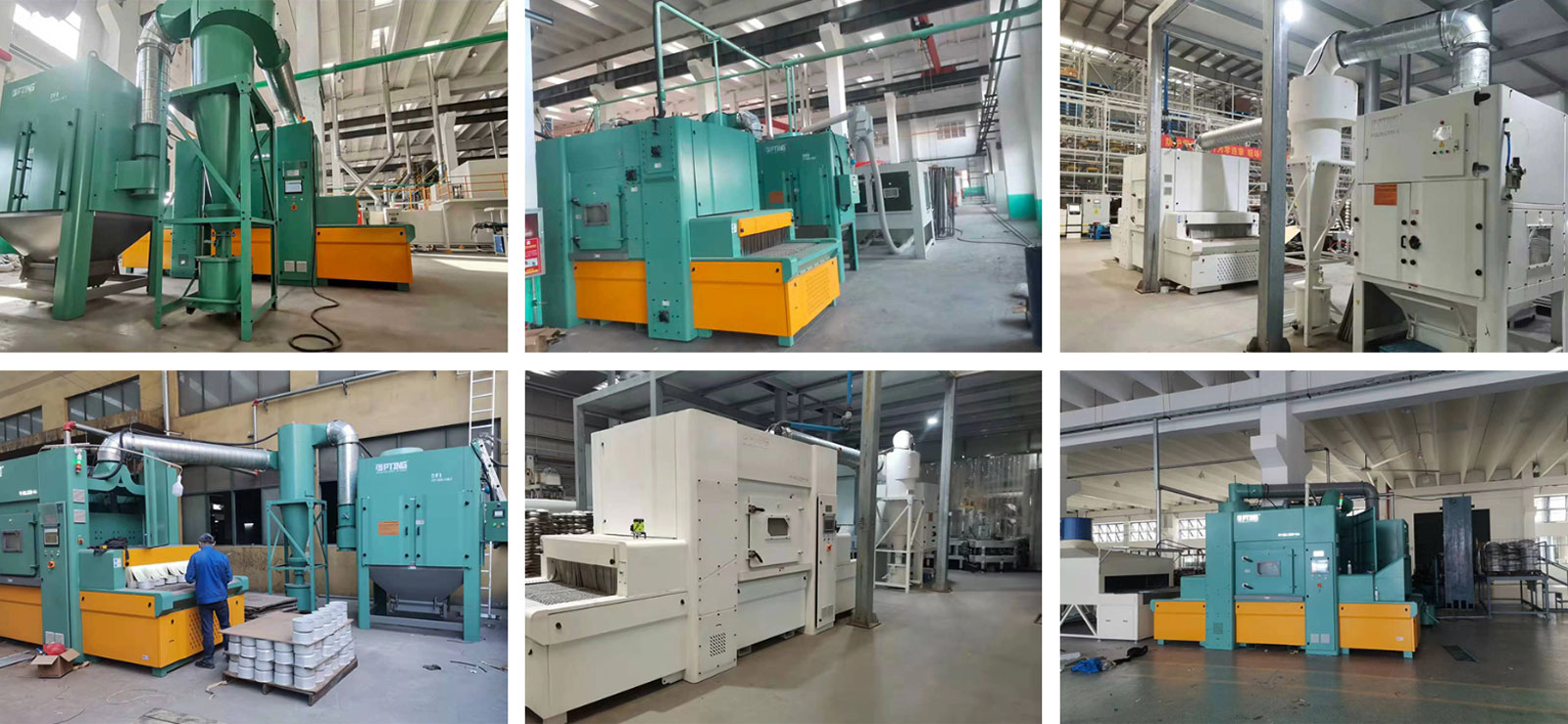

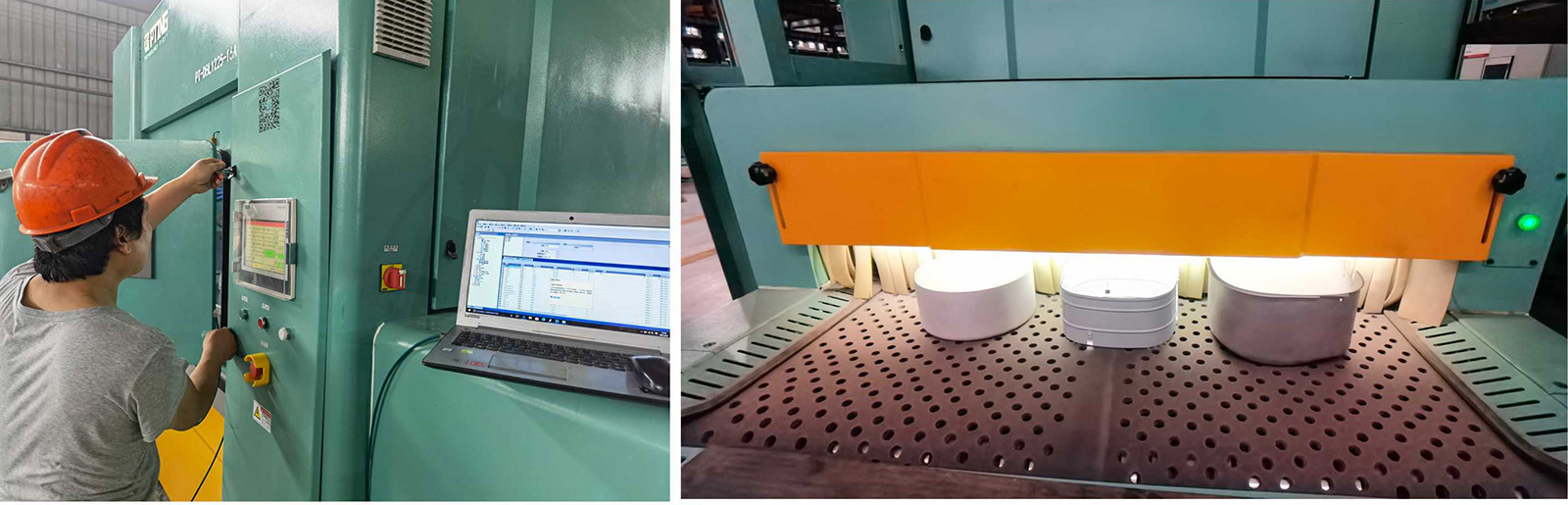

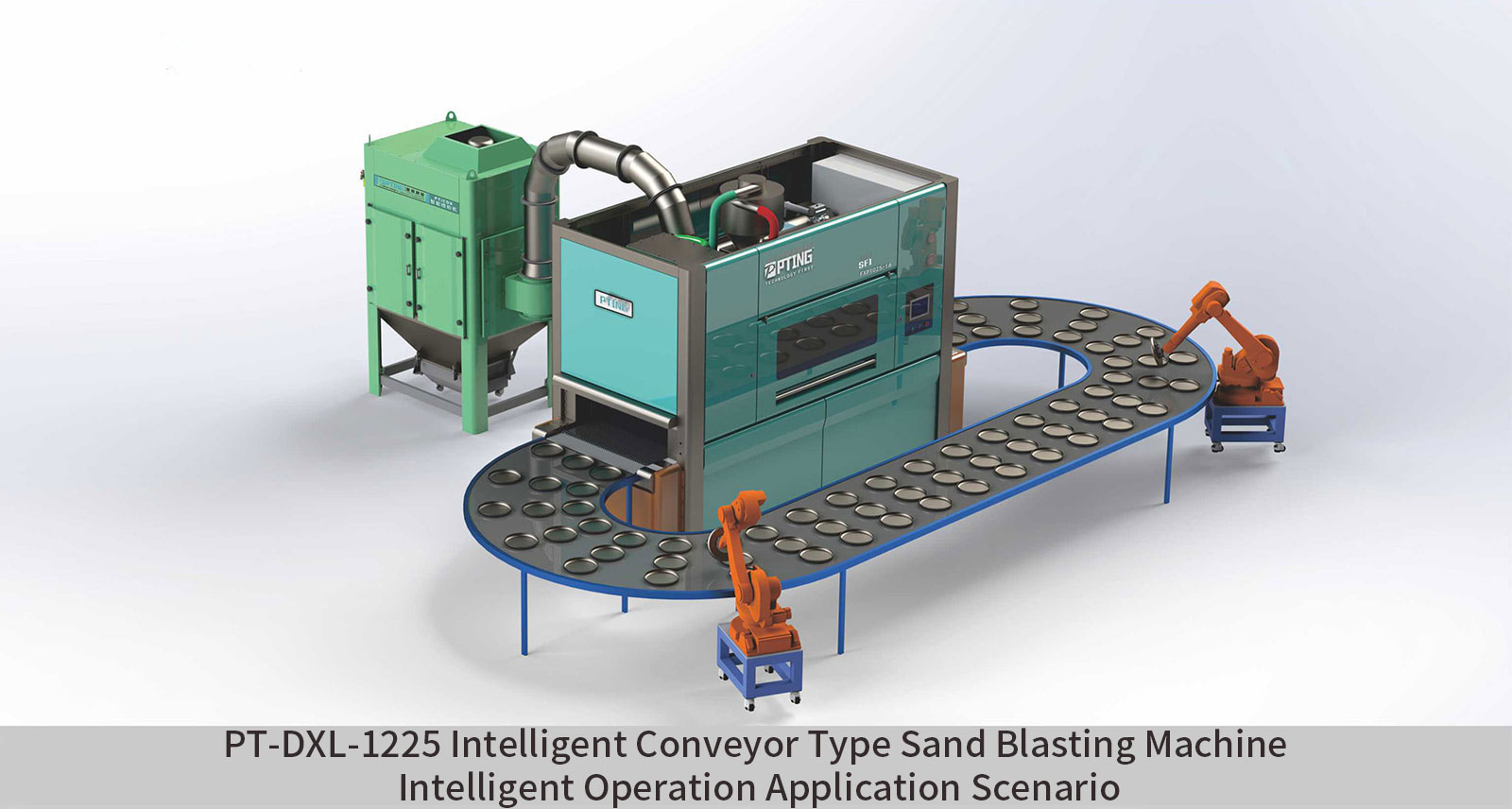

User Scenario
