Intelligent rotary sandblasting machine PT-TF1800-16A

Product Description

PTTF series intelligent rotary sandblasting machine is one of the core products of Painting Technology's intelligent technology. The designer has deeply extended and expanded the automatic loading unloading and positioning technology of the product. The adjustment of the spray gun module is fast and efficient, and the abrasive separation efficiency is extremely high. , the dust removal meets the indoor fugitive emission standard, and the noise can be controlled to 72Db. It is an intelligent sandblasting equipment that can meet high-quality requirements.

Scope of Application

Suitable for columnar workpieces, complex and special-shaped workpieces,

All kinds of auto parts, aviation parts, pots, gears,

Digital parts, hardware parts, magnetic materials, etc.

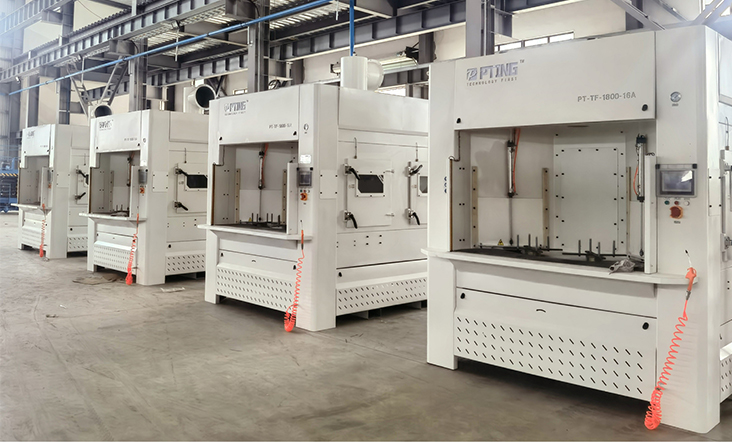

Intelligent rotary sandblasting machine PT-TF1800-16A

PREV：Multifunctional Rotary Sandblasting Machine PT-TD1350-10A

NEXT：Intelligent rotary sandblasting machine PT-TF1200-9A

Parameters

Technical advantages: (special R & D team results)

1, BJY dust removal system invention patent (CN306470932S)

2, 1200 integrated appearance patent (CN306487847S)

3, XL cyclone dust removal utility patent (CN210707506U)

4, PT rotary table sand blasting machine software copyright (2020SR1013670)

Second, product advantages:

1、Dust removal system: dust removal efficiency and abrasive separation efficiency increased by 50%.

2、Rotary gun module: increase the efficiency of sandblasting by 30% with the same energy consumption.

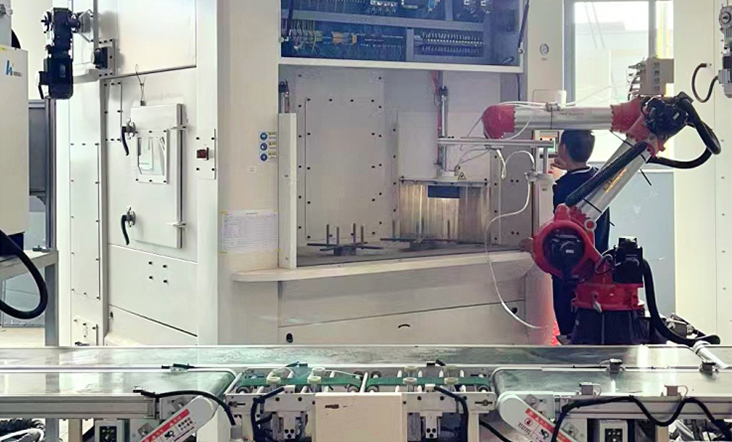

3、Positioning of indexing disc: fast and precise to meet the demand of robot loading and unloading.

4、Electrical selection: Schneider, Siemens PLC, and touch screen.

5、Materials used for the whole machine: manganese steel is used in key parts, weight 3T.

Service Advantage:

PaiJing Technology 1+4+8+48 hours service system, the national network

Device Parameters

Project	Specifications
Effective processing size 1	Diameter 400* height 250mm/ 8 stations
Effective processing size 2	Diameter 300* height 250mm/ 12 stations
Sandblasting gun model and quantity	PTB2 16 pieces
Production beat	A Continuous: 0.5-3m/min B Intermittent: 15-60s/beat
Spray gun module type	Oscillating/ rotating/ translating lift/ manipulator
Turntable positioning type	Servo/ Index
Dust removal equipment	5000-5600m³/h 2600Pa
Air source parameters	Maximum 16 guns*1.3m³=20.8m³ recommended 22m³
Power parameters	380V, 50Hz 14KW
Device control method	Smart PLC E-MES Remote
Grade and brand of electrical components	Siemens Schneider SMC AirTAC
Applicable abrasive	10-120 # non-metallic/ metallic abrasive
Abrasive first input amount	350kg
Total weight of equipment	3600kg
Host size	450057403080

Accessory Data

	Abrasive Recycle System	Wind Recovery
		Bucket Recovery

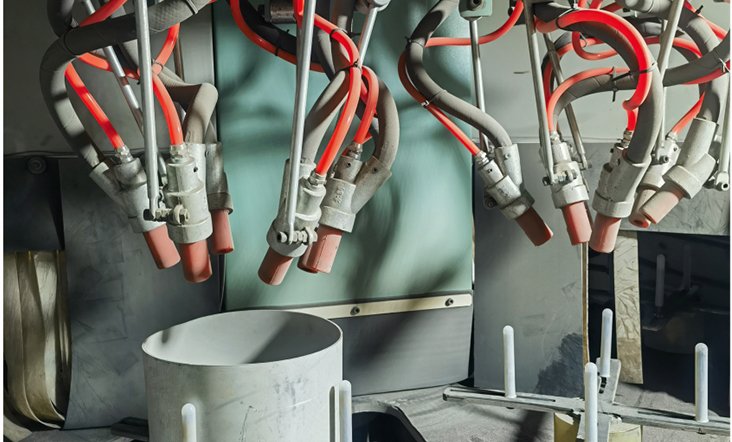

	Spray Mechanism	Rotary Module
		Pendulum Gun Module
		Stepper Module

	Conveyor	Belt Conveyor
		Roller Conveyor
		Crawler Conveyor
	Effective Length Width	80CM
		100CM
		150CM

	Effective Height of Processed Processing Parts	25CM
		30CM
		45CM
	Number of Spray Guns	8
		16
		32

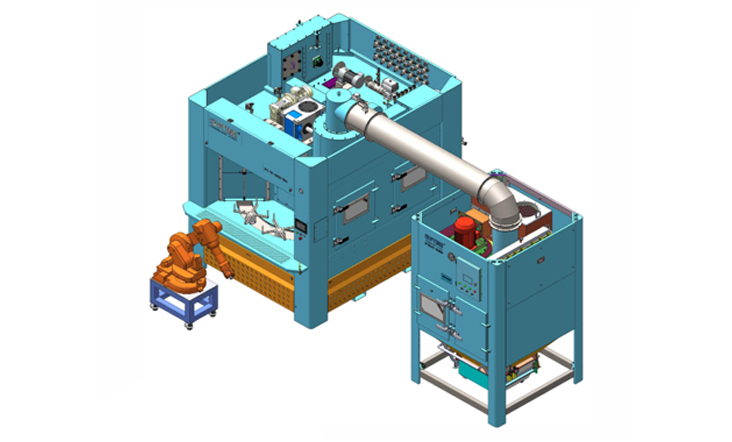

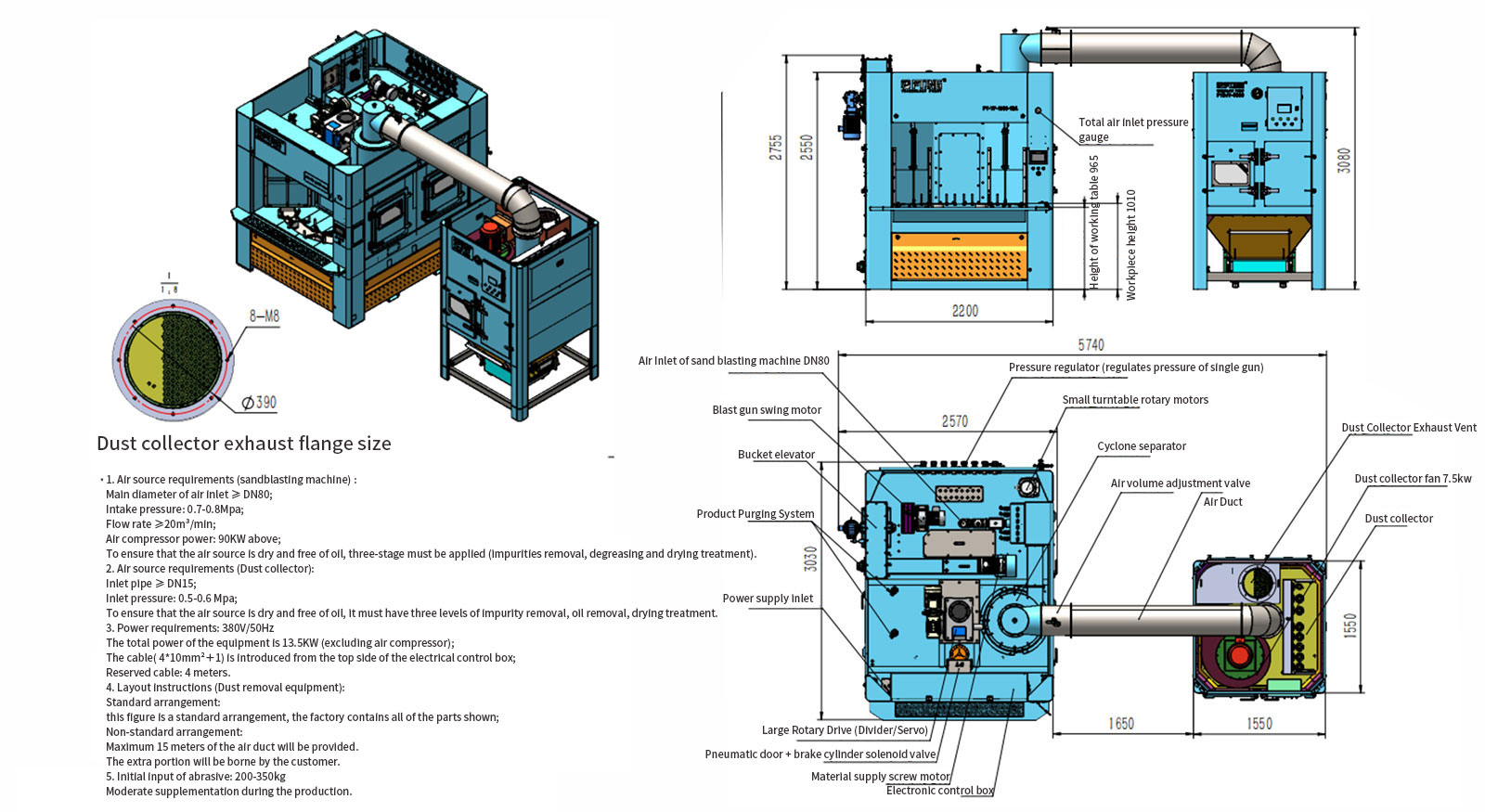

Equipment Structure Size

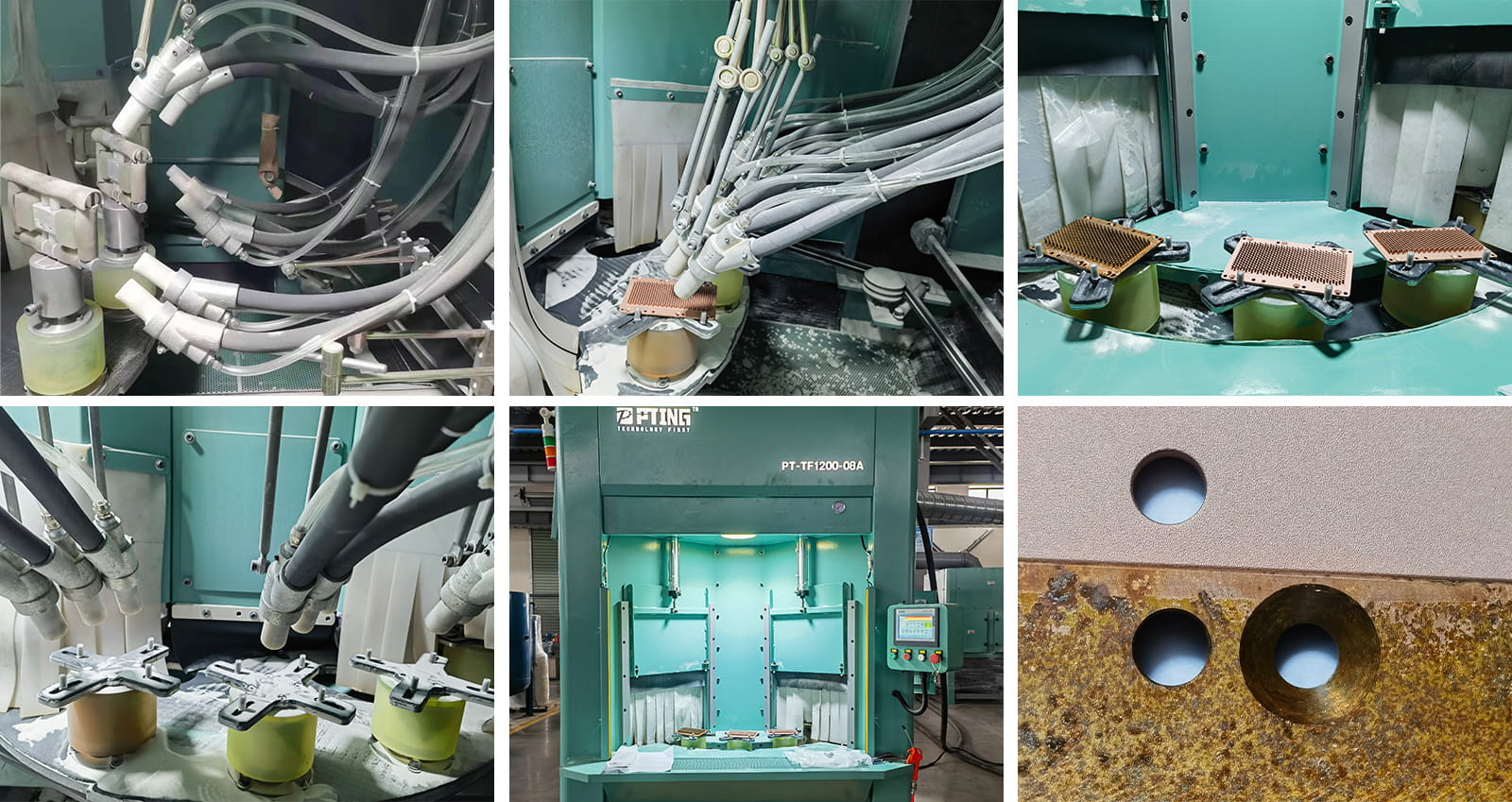

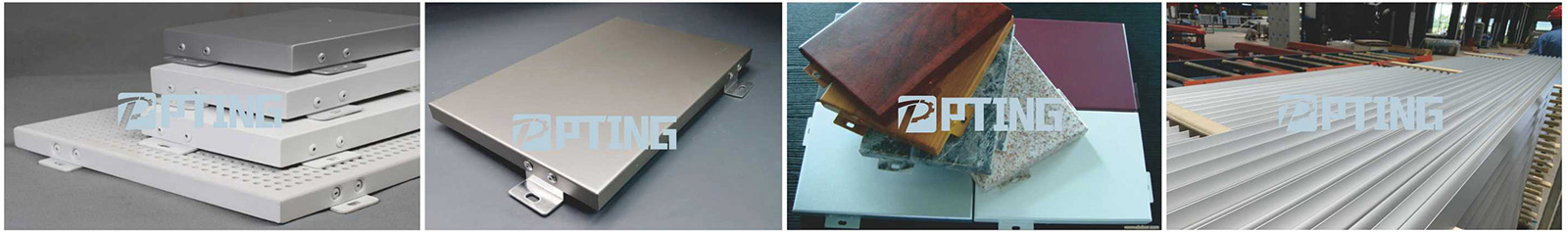

Product Application Field

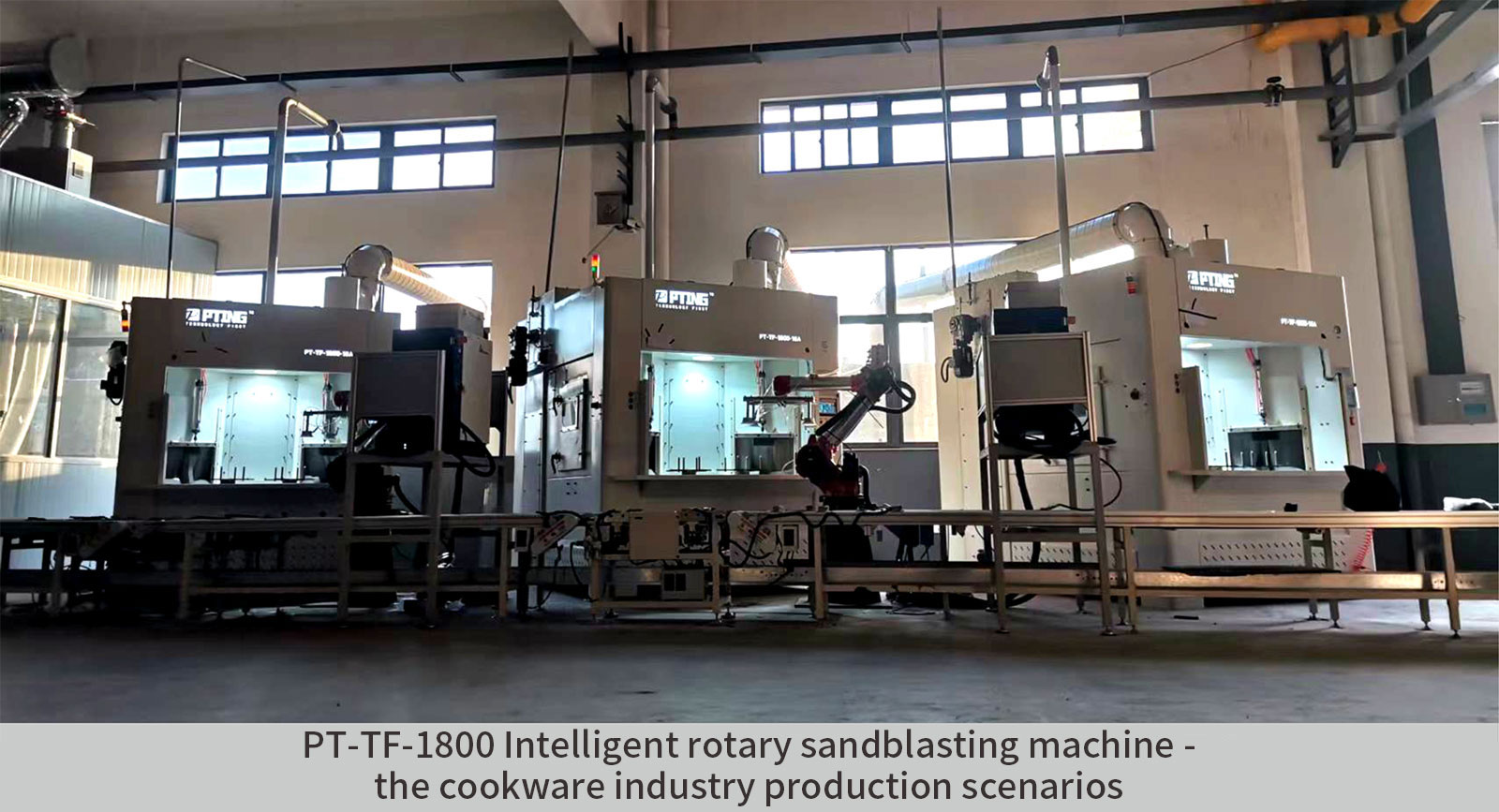

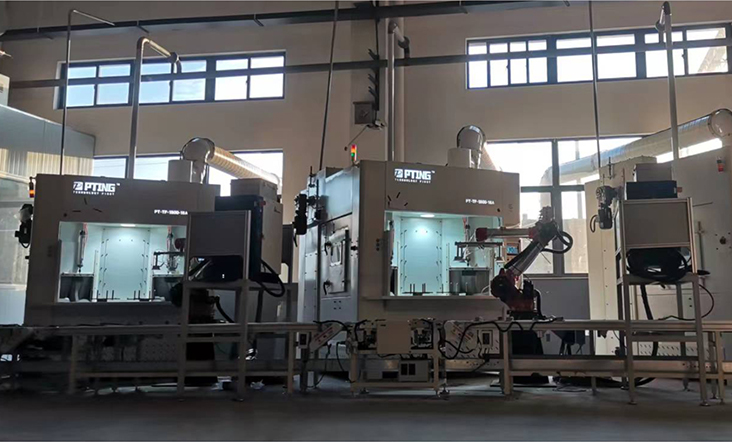

User Scenario
