PTBJY3000—intelligent filter cartridge dust collector

Product Parameters

PTBJY-3000 standard model

PTBJY-3000 standard model parameter configuration table:

*Parameter configuration is subject to modification without prior notice*

Equipment technical parameters

1. Filtration area: 48㎡; Filtration wind speed: 0.024m/s; Filtration efficiency: ≥99.5% Equipment technical parameters

2. Handling air volume: 3000m-3600³/h Fan pressure: full pressure 2600-3500 PA

3. The content of particulate matter discharged from the clean air end: 5-20 mg/m³

4. Air inlet temperature requirement: lower than 60°C

5. Import concentration limit: less than 800mg/m³, if the concentration is too high, cyclone pretreatment equipment should be added

6. Working resistance: no-load state: 20°≈300～600Pa; normal operating state 300～1500Pa;

7. Total weight of equipment: 765Kg

8. Equipment power: 5.5kw

9. Power supply voltage: 380V (AC), 50HZ (GB)

10. Air source pressure: 0.5～0.8Mpa; flow rate: >0.24m³/min

11. Noise: less than 72 decibels detected 1 meter away; except interval pulse blowback noise

Equipment manufacturing parameters and electrical component brands:

Product Advantages

The fan complies with the AMCA standard and is derived from the European ROSENBOGER high-efficiency centrifugal fan technology, with an energy efficiency of 85%. The impeller is directly connected to the motor, with low vibration, maintenance-free, integrated muffler, and noise control of 72DB. The filter material is optional, the surface wind speed is 0.6~1.5m/min, the filtration accuracy is above 0.3pm, and the filtration efficiency is above 99.9%. Intelligent control: Intelligent control system can realize real-time monitoring of temperature, on-demand pulse cleaning, compatible with local and remote control; modular design of the whole machine, equipped with a large-capacity mobile dust collection vehicle; each device has been sealed and pressure-bearing tested before leaving the factory. Reliable structure, stable operation, convenient installation and transportation.

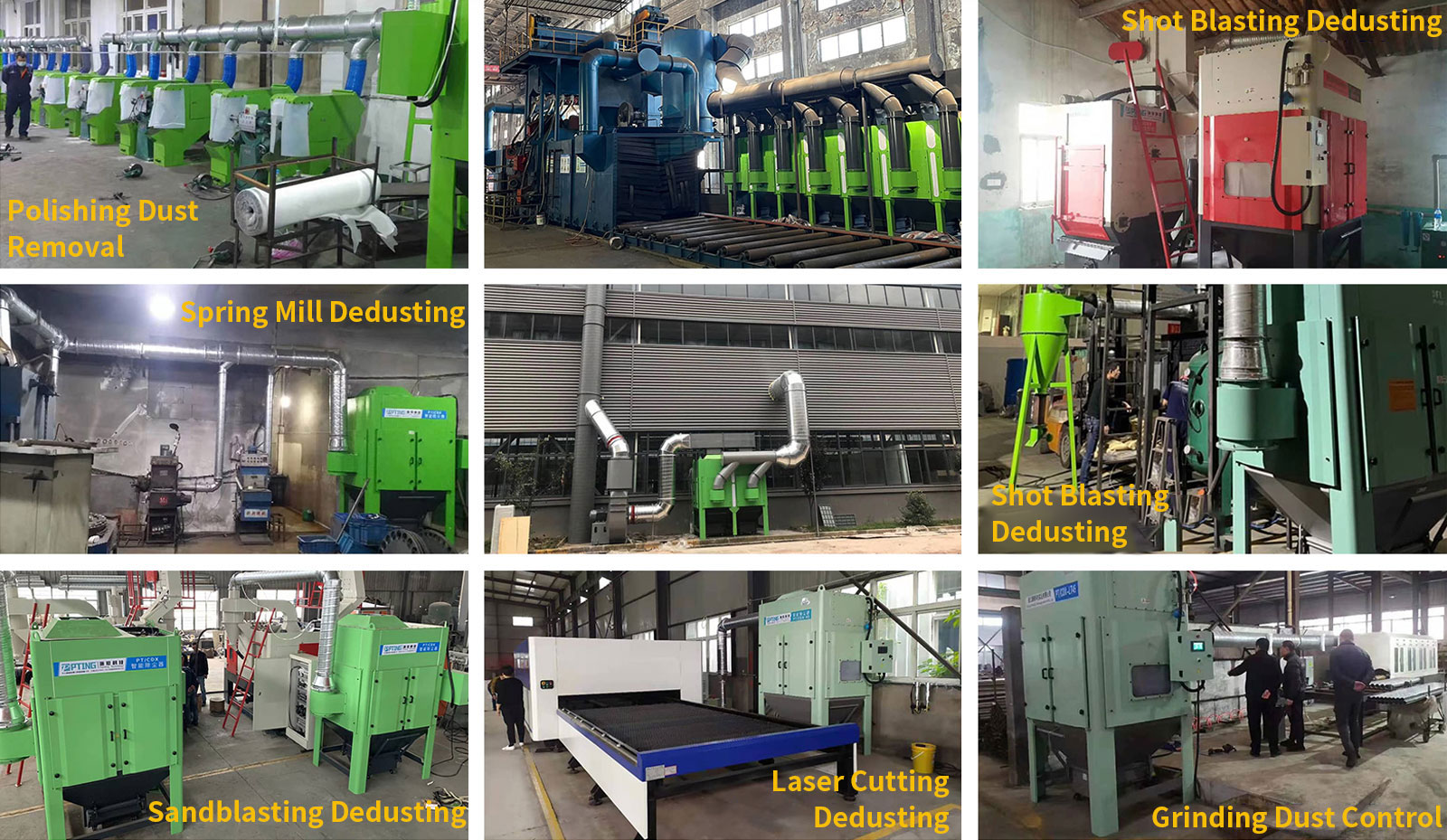

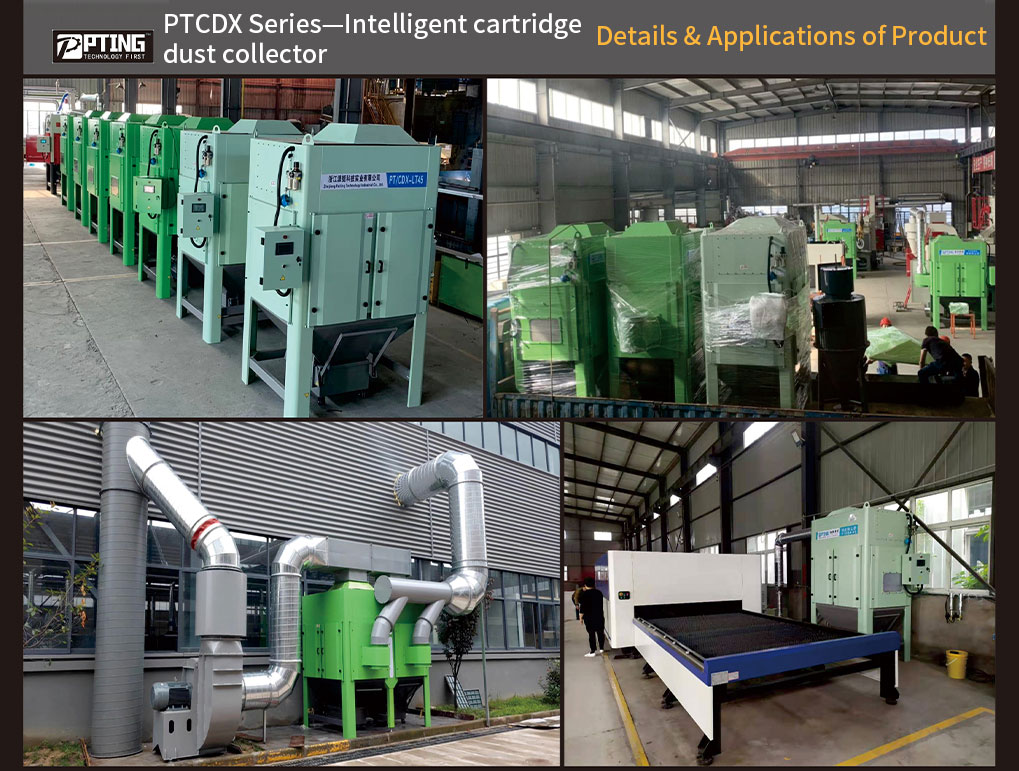

Application Site

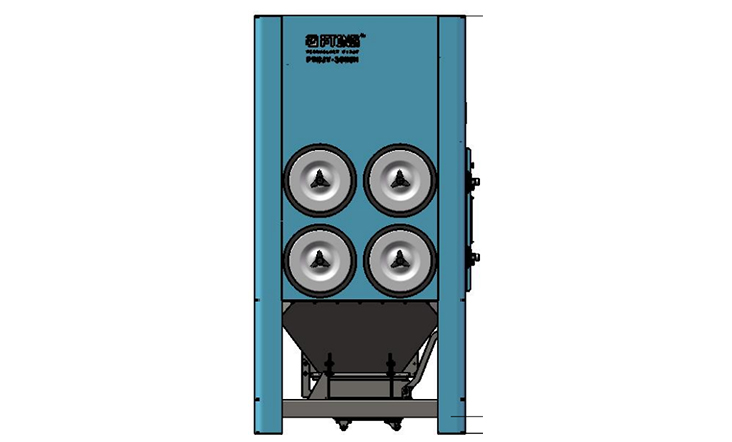

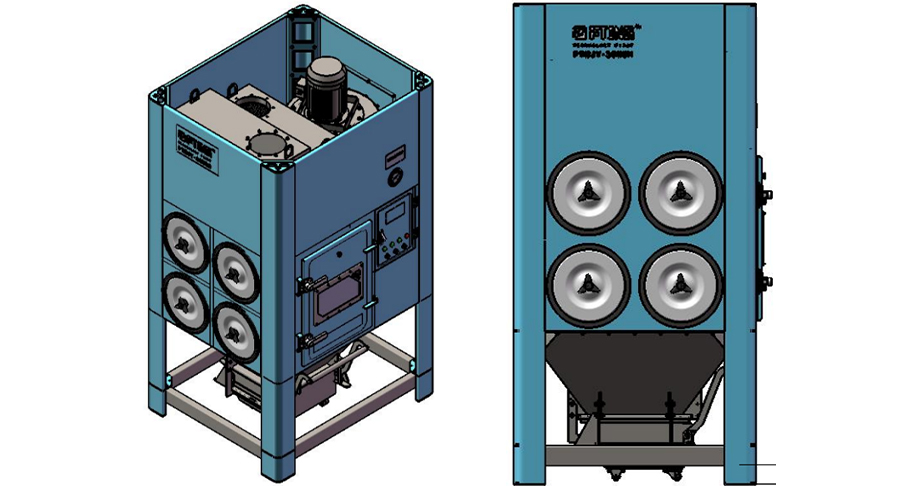

Body Mechanism And Size
