Product Parameters

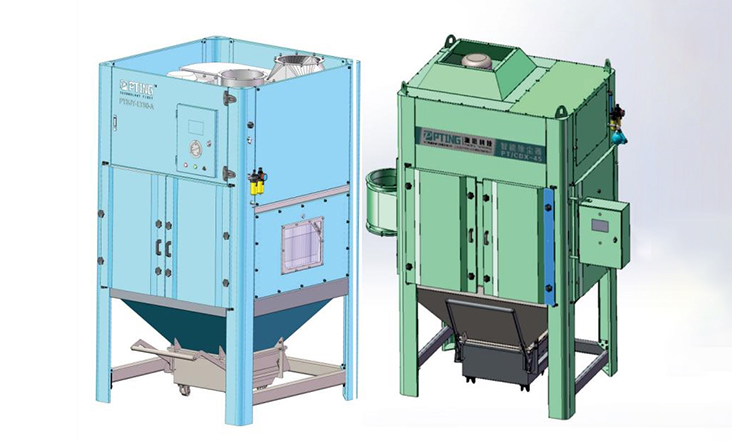

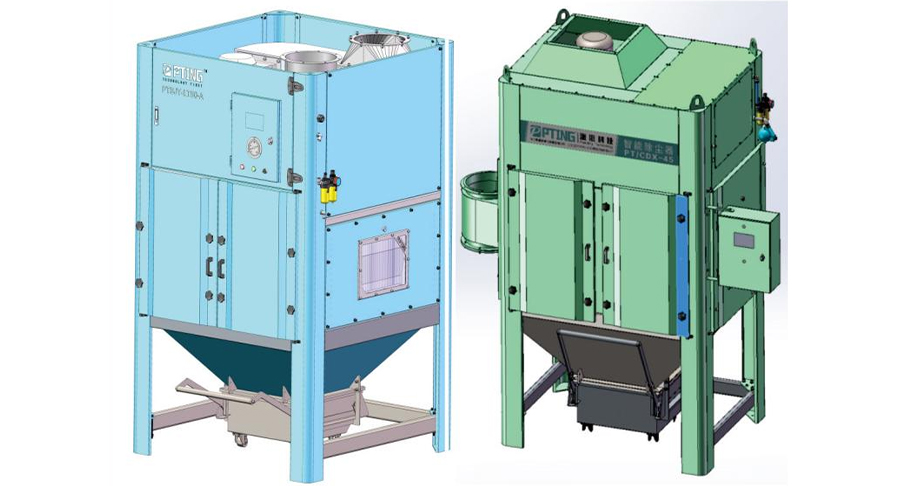

PTBJY-5000 standard model
| Model Number |
Model |
Air Flow |
Power |
Air Pressure |
Cartridge Material |
| PTBJY-5000S |
Standard |
5000-5700m³ /h |
7.5/5.5kw |
2600-3500Pa |
|
| PTBJY-5000-G |
Intelligent |
5000-5700m³ /h |
7.5/5.5kw |
2600-3500Pa |
Nano flame retardant polyester lamination special material |
| PTBJY5000-FB |
Fire/Explosion Suppression |
5000-5700m³ /h |
7.5/5.5kw |
2600-3500Pa |

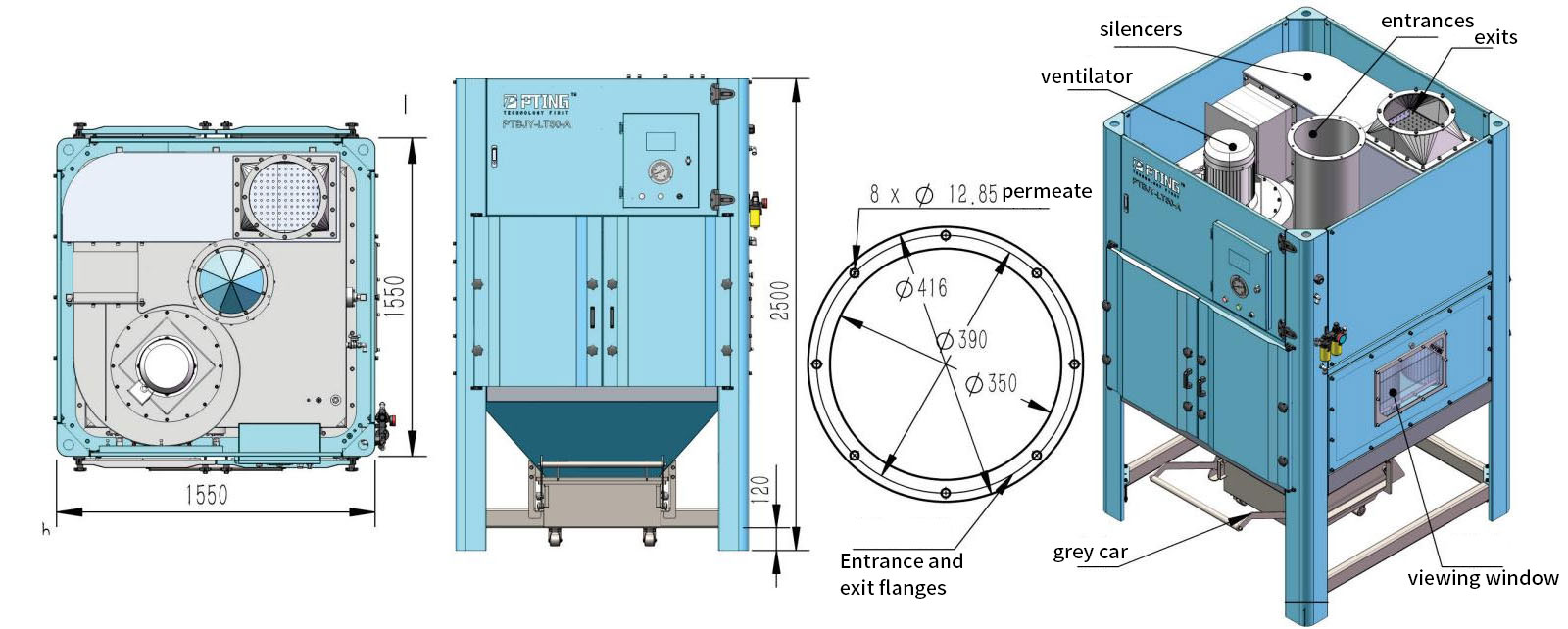

PTBJY-5000 standard model parameter configuration table:
| Power |
Air Flow |
Full Pressure |
Qty of filter cartridges |
Filter Area |
Dimension （L*W*H mm） |
Weight (kg) |
|
|
| 7.5/5.5kw |
4000-5700m³/h |
2600-3500Pa |
8 |
60-90 m2 |
1550*1550*2500 |
965 |
| Options |
A - Intelligent control system; B - Electrical explosion-proof ;
C - Pipeline inspection system; D - Special filter ; E - Customized painting; F - Awning |
|
*Parameter configuration is subject to modification without prior notice*
Equipment technical parameters
1. Filtration area: 72 ㎡; filtration wind speed 0.024 m/s; filtration efficiency: ≥99.5%
2. Processing air volume: 4000-5700 m³/h; Fan air pressure: full pressure 2800-3200 PA
3. Particulate matter content of clean air end: 5 - 20 mg/m³
4. Air inlet temperature requirement: lower than 60℃
5. Inlet concentration limit: less than 800 mg/m³
(The cyclone pretreatment equipment should be added if the concentration is too high)
6. Working resistance: no-load: 20°≈300-600Pa; normal operating 300-1500Pa;
7. Total weight of equipment: 965Kg
8. Equipment power: 7.5 / 5.5 kw
9. Power supply voltage: 380V (AC), 50HZ (GB)
10. Air source pressure: 0.5～0.8 Mpa; flow rate: >0.24 m³/min
11. Noise: less than 72 decibels at a distance of 1 meter; except for interval pulse blowback noise
12. Dimension: 2500 (L) * 2500 (W) * 2550 (H) mm
Equipment manufacturing parameters and electrical component brands:
| Chamber body |
Q235 ordinary steel; 2-10mm; net weight about 965KG |
|
| Surface treatment |
Powder coating; film thickness 60-120um; PT LOGO (blue) |
|
| Pulse valve |
SBFEC |
|
| Display PLC |
YKHMI |
Optional |
| Centrifugal fan |
PTING / ROSENBERGER |
|
| Switch appliances |
CHINTZ |
|
| Sensing appliances |
ASMIK |
|
| Electric control box |
RATING |
|
Zhejiang Painting PTBJY-5000 Intelligent Dust Collector · Matching Table
| Component |
PT/BJY-50 Standard |
| Factory Standard Components |
|
| 1 |
Equipment body structure (carbon steel material) |
● |
| 2 |
Standard membrane filter element 8 Pcs (350*660) (filtration accuracy 5mg) |
● |
| 3 |
PTING / ROSENBOGER low noise centrifugal fan |
● |
| 4 |
Electrical and pulse control system |
● |
| 5 |
Equipment double-sided spray (standard color) |
● |
| 6 |
Large-capacity mobile sealed ash hopper truck |
● |
| 7 |
Muffler ≤72Db |
● |
| 8 |
Assembly hardware accessories |
● |
| Additional or Optional Components |
|
| 1 |
Intelligent control system； PLC intelligent monitoring |
○ |
| 2 |
Air volume control valve DN350 |
○ |
| 3 |
DONALDSON filter element (ultra-fine filter cartridges) |
○ |
| 4 |
Film-coated anti-static filter elements |
○ |
| 5 |
Cyclone separator |
○ |
| 6 |
Outdoor awning |
○ |
| 7 |
Customized equipment paint color or |
○ |
| 10-year long-term anti-corrosion coating (C4) |
| 8 |
Filter cartridge flame retardant treatment components |
◎ |
| 9 |
BLD explosion-proof low-noise centrifugal fan |
◎ |
| 10 |
Explosion-proof electrical box electrical system（Exd IIB） |
◎ |
| 11 |
Explosion-proof and explosion-venting system of equipment body |
◎ |
| (explosion-proof, explosion-venting, flame-venting) |
| 12 |
Pipe spark detection, pipe spray, booster pump |
◎ |
● Standard Components
○ Optional Components
◎ Explosion-proof flame retardant options
