Porcelain plate sandblasting machine - application of porcelain plate sandblasting process

The core advantage of porcelain plate: fireproof super weather resistance super high hardness

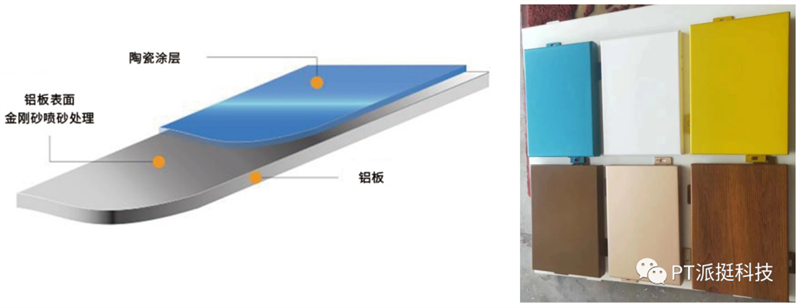

The core of the preparation process of ceramic plate coating: high-quality sandblasting pre-treatment and convenient ceramic coating

According to different substrates, there are currently three main types of porcelain plates: porcelain aluminum plates, which are mainly used for the inner walls of rail locomotives, public buildings such as subway stations, airports, and railway stations; and porcelain steel plates and porcelain stainless steel plates, which are mainly used Tunnels, column nets and other decorative fields that require higher strength. Porcelain plates do not release any toxic gas in the event of a fire, which greatly alleviates the harm caused by fire to humans. At the same time, due to the low surface tension of the porcelain plate (surface tension 22-23 dynes), the plate can resist artificial pollution, prevent small advertisements from being pasted, and marker pens cannot graffiti.

At present, the pain points of the pre-sandblasting process of porcelain plate manufacturers:

1. The sandblasting equipment has poor stability, uneven sandblasting and low production capacity;

2. The energy consumption of sand blasting equipment is large, the consumption of sand material is large, and the cost is high;

3. Sandblasting equipment has poor environmental protection performance, environmental emissions are not up to standard, the production environment is harsh, and operators are difficult to find;

4. The compatibility of sand blasting equipment is poor, and the opposite sex plates cannot pass through the equipment.

PTING Technology and an aluminum veneer enterprise in Jiangsu lasted for 3 years, and jointly developed a special sandblasting machine for ceramic panels, which comprehensively solved the above pain points and brought good news to the majority of aluminum veneer manufacturers:

1. Adopting the world's first "rotating and lifting spray gun module" technology, it perfectly solves the problem of uneven sandblasting of traditional swinging spray guns. The speed is as high as 2.8-4M/min; the effective width is up to 1600mm; 2. The multi-stage cyclone separation and dust removal technology of the downflow type high-volume low-pressure dust collector is adopted to solve the problem of dust overflow during sandblasting, and at the same time, the particle size of the abrasive separation can be finely adjusted. Keep the roughness of the surface of the board highly uniform. Save sand to a great extent.

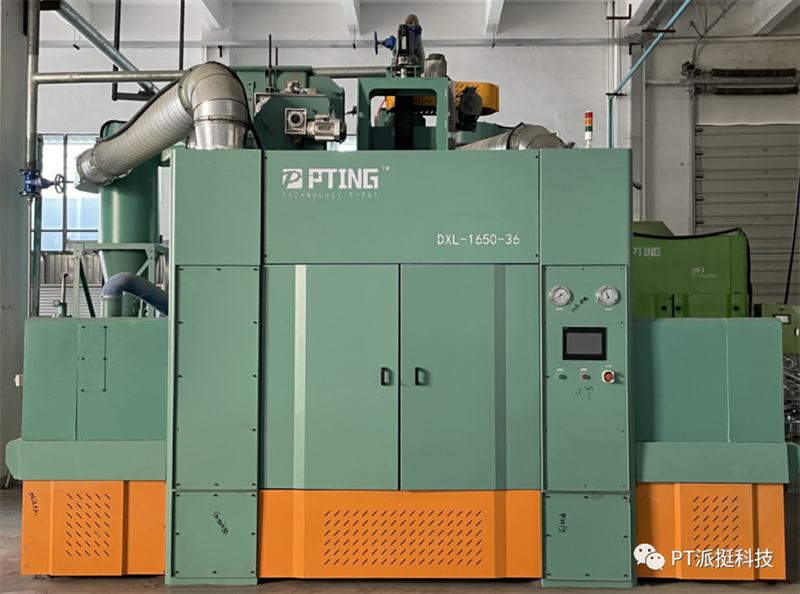

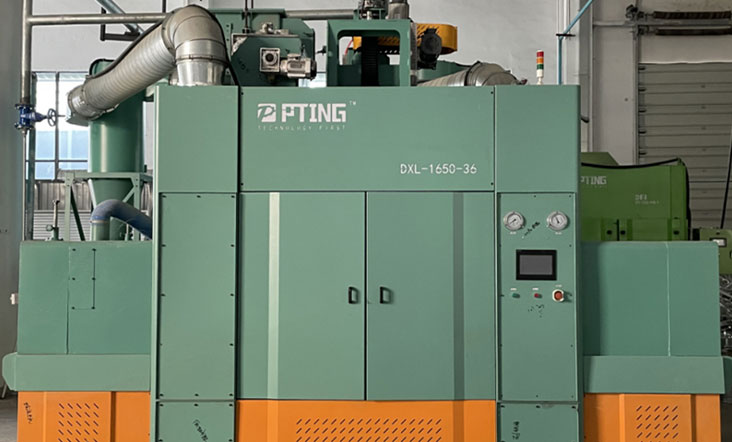

PT-DXL1650-36A Intelligent sandblasting machine for ceramic plates

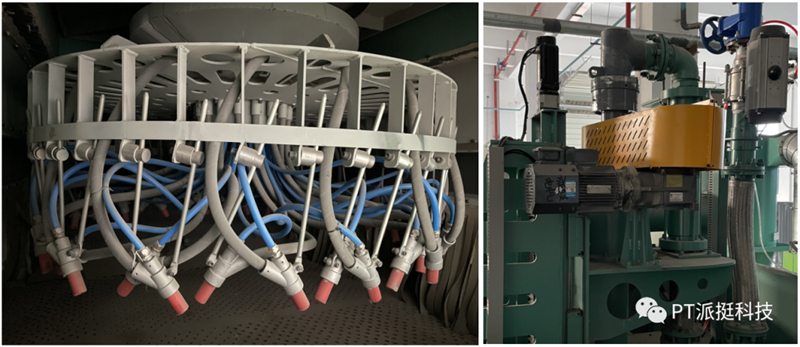

Rotary lifting spray gun module

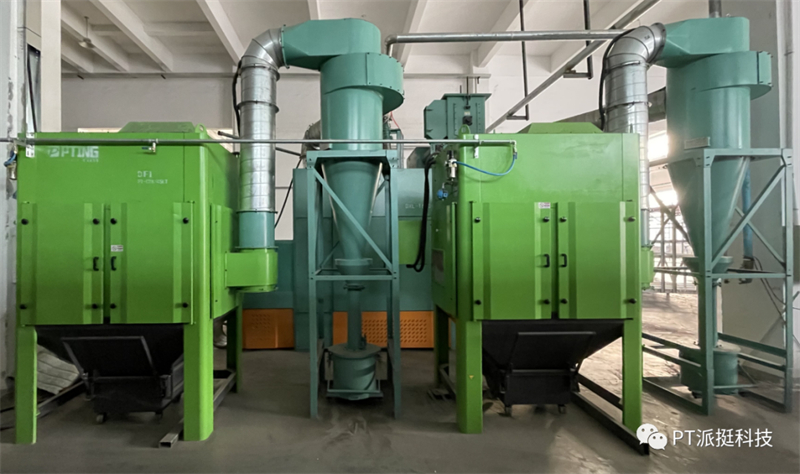

Downflow type large air volume low pressure dust collector cyclone separation dust removal system
