PTING Dust Collector - Welding Fume and Dust Removal Solution

Welding workshops will produce a lot of smoke and dust in daily production. The smoke and dust in the welding fume is a very complex substance. More than 211,320 elements have been found in the smoke and dust, and the abundant ones are Fe, Ca, Na, etc. , followed by Si, Al, Mn, Ti, Cu, etc. Welding fumes are extremely harmful to the environment and human health.

Design goals and highlights of PTING Technology welding fume and dust removal system:

1. Carry out the country's basic national policy on environmental protection, and implement the relevant laws, policies, norms and standards of the country;

2. According to the actual working conditions of the project, select the process route and design parameters suitable for the characteristics of the project, advanced technology, low investment, low operating cost, safe and reliable, and create a good working environment for employees.

3. The general layout of waste gas treatment facilities strives for reasonable layout, smooth process flow, beautiful process layout, and space saving, and strives to make the purification system a beautiful, highly automated, high-end and atmospheric environmental protection treatment facility, and become an electric vehicle The model project in the manufacturing field has achieved stable operation and stable compliance.

4. Customize and optimize and upgrade the collection facilities of each station in the factory building to realize the collection of smoke and dust.

5. Introduce the advanced purification facilities in the world to achieve low investment, high efficiency, low energy consumption, stability and reliability, which is the biggest highlight of the project.

6. The newly designed and installed purification device is planned to be installed in the middle of the two columns, and the moving guide rail and fixed guard frame are added

7. The emission concentration of smoke and dust produced by workshop welding after purification and filtration is lower than 70% of the value specified in the "Comprehensive Emission Standards for Atmospheric Particulate Matter from Stationary Sources" DB37/1996-2011;

8. Collect and process the smoke and dust in the welding area to the maximum extent, greatly improving the smoke concentration at the job site;

9. Ensure the continuous and stable operation of the smoke and dust exhaust gas treatment system, with easy operation, high equipment integrity rate and low failure rate;

10. Ensure that the overall design is optimized, reasonable, concise and beautiful, and create a healthy production concept;

11. Ensure low energy consumption and material consumption; low operating costs and low management costs.

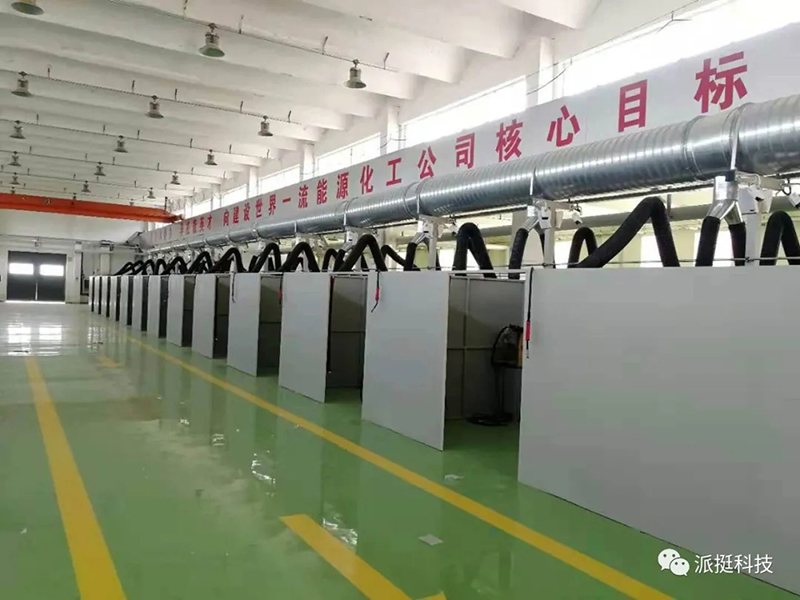

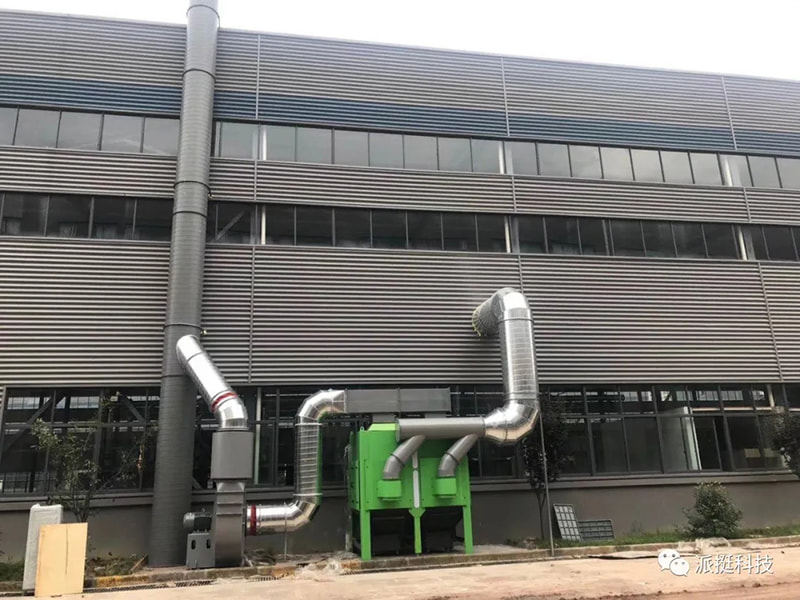

Whole plant welding fume control case

Whole plant welding fume control case

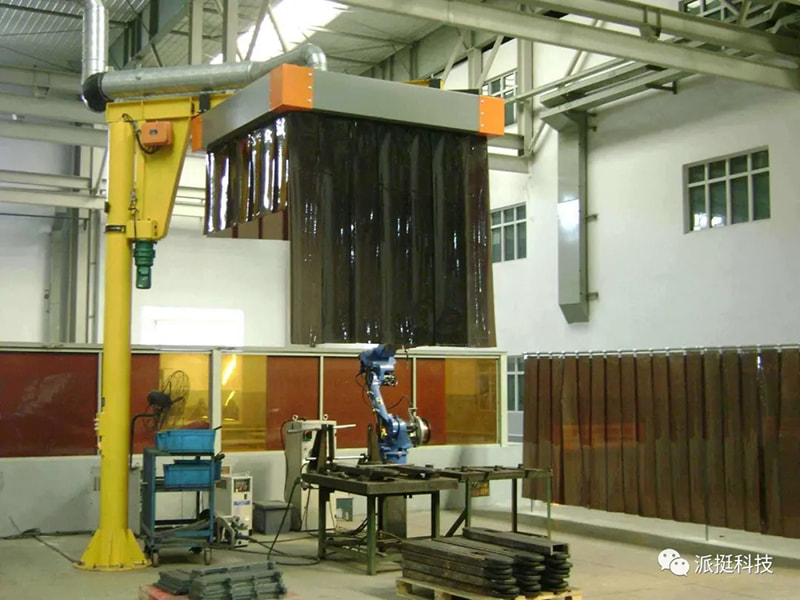

Robot post welding smoke control case

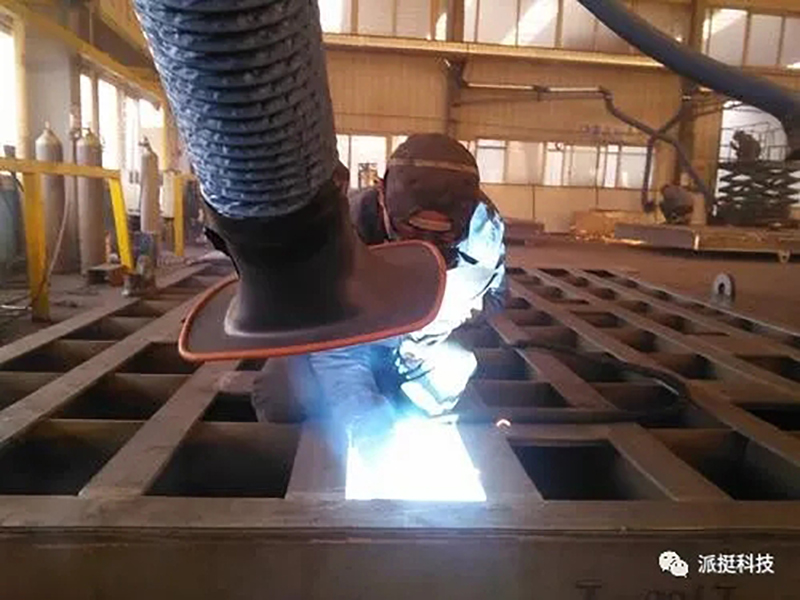

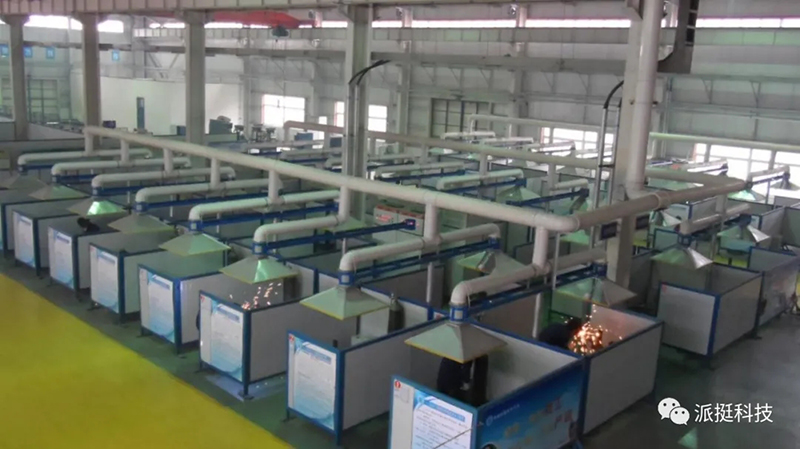

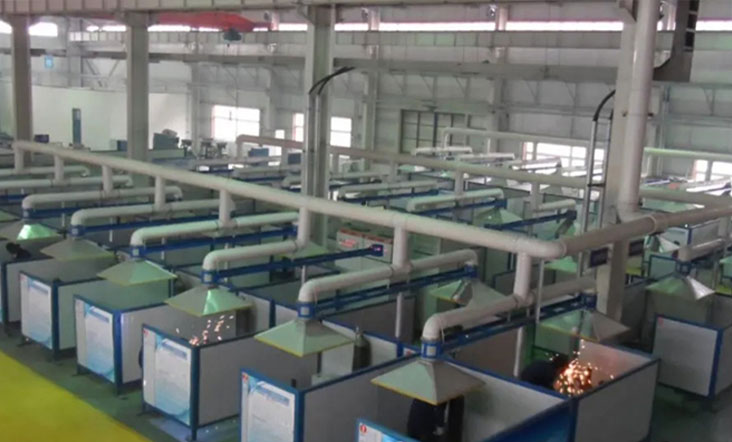

Case study of manual welding fume control

Case study of manual welding fume control

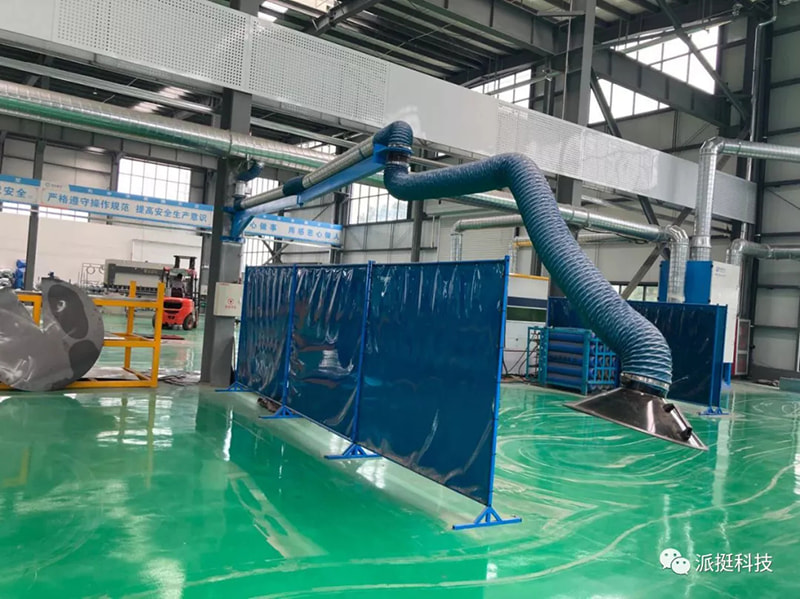

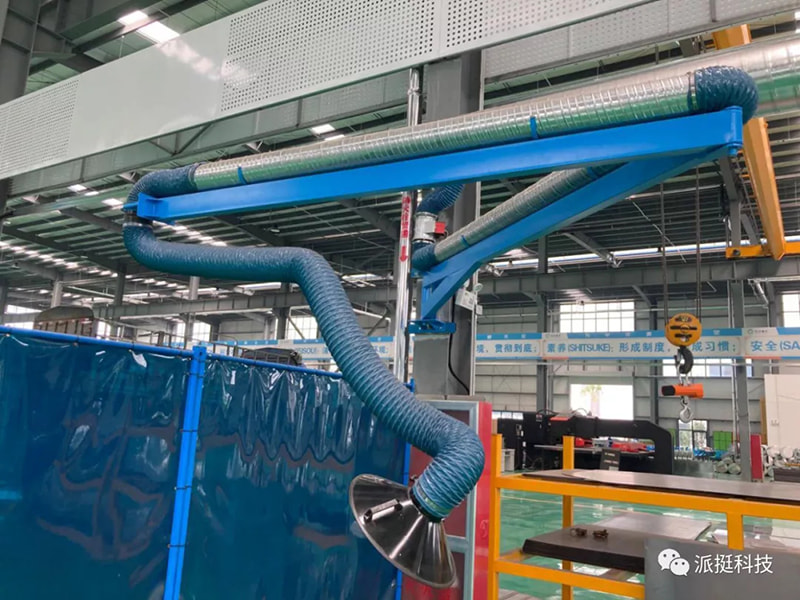

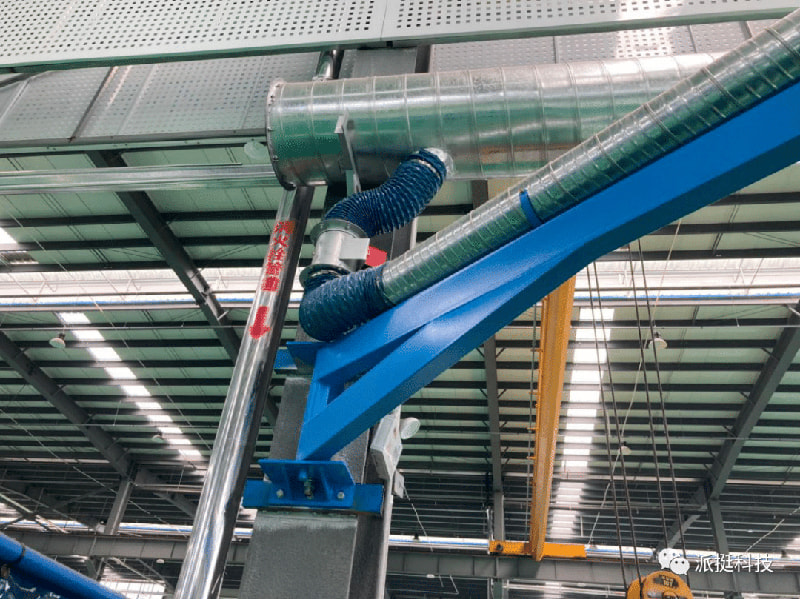

Collection hose and swing arm

Collection hose and swing arm

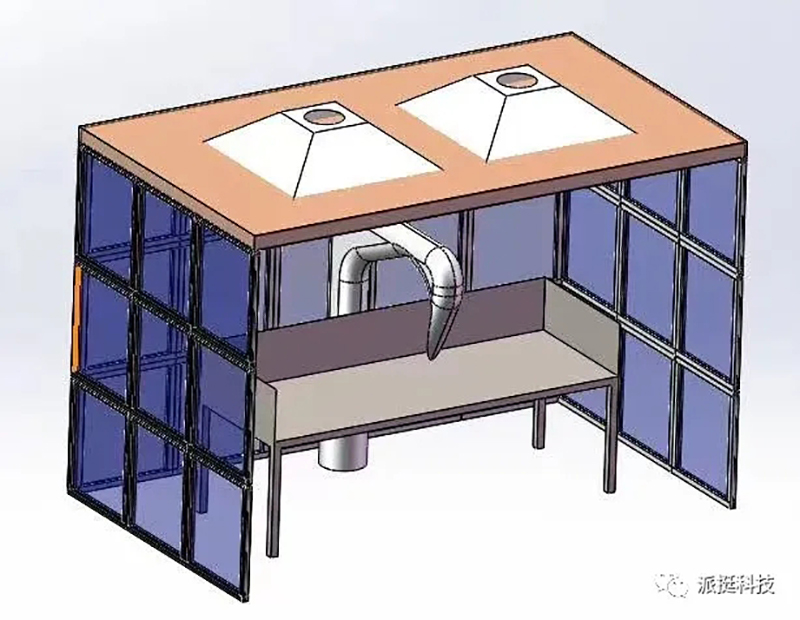

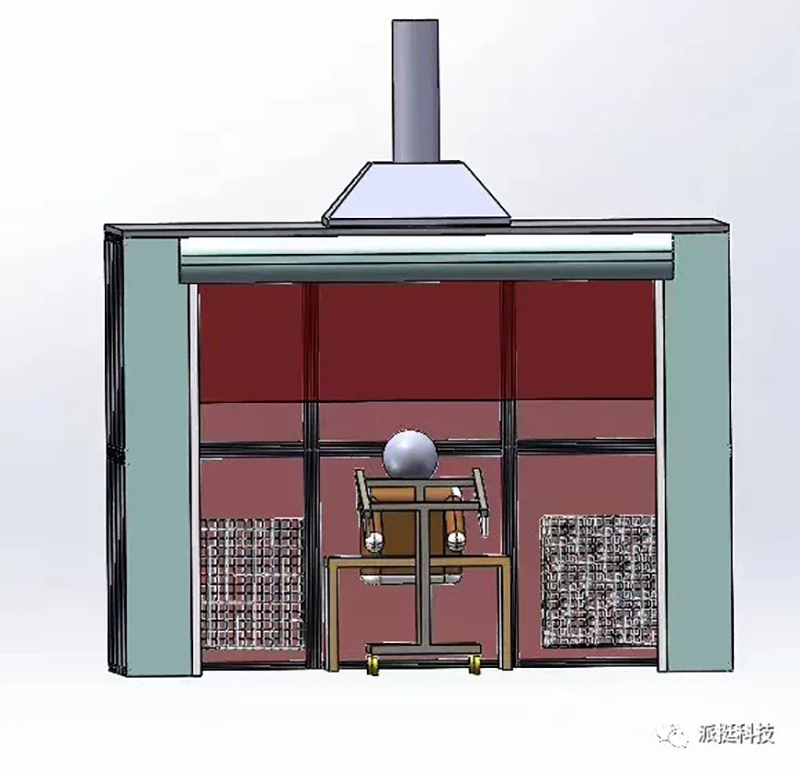

room collection

room collection

room collection

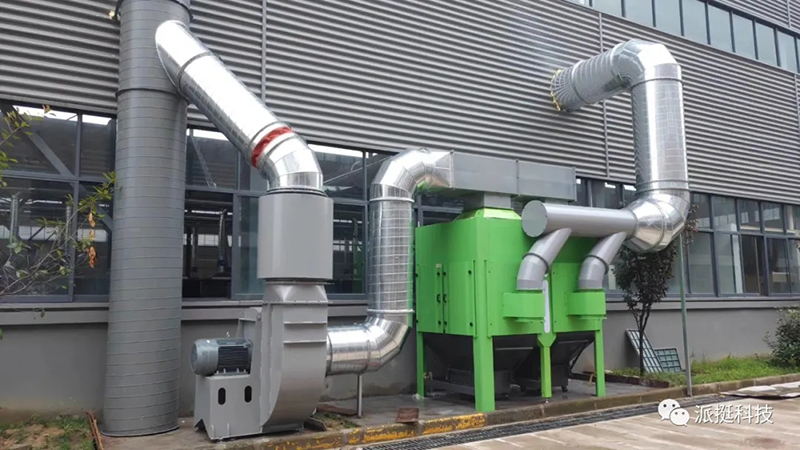

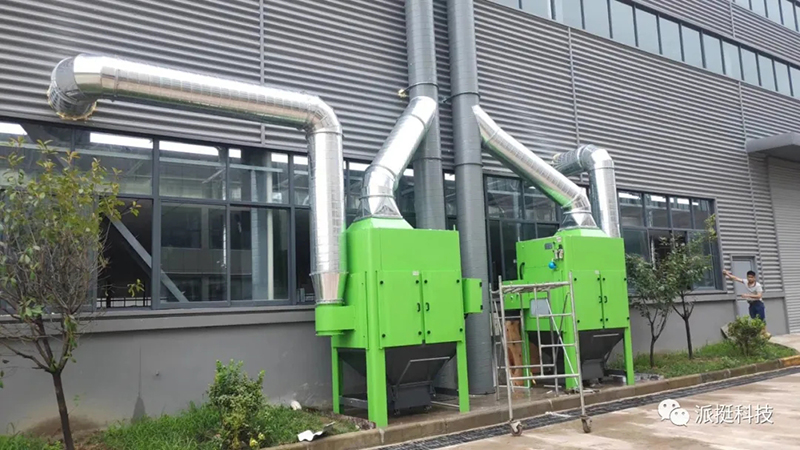

 PTING welding fume and dust removal host

 PTING welding fume and dust removal host

 PTING welding fume and dust removal host
