PTL-2000-4 - Cartridge Filter

Device Parameters

Equipment Technical Parameter

1. Filtration area: 48㎡;

Filtration velocity: 0.012m/s;

Filtration efficiency: ≥99.5%

2. Processing air volume: 1620m-2000³/h;

Fan pressure: 1980-2500 PA(total pressure)

3. Mission particulate matter content of clean air end: 5-20 mg/m³

4. Air inlet temperature: lower than 60℃

7. Import concentration: less than 800mg/m3 (If the concentration is too high, additional cyclone pre-treatment equipment is required.)

6. Working resistance:

No-load state: 20°≈300 ~ 600Pa;

Normal operating state: 300 ~ 1500Pa;

7. Total weight of equipment: 473.27Kg

8. Power of equipment: 3kw

9. Power supply voltage: 380V(AC),50HZ (GB)

10. Air pressure: 0.5 ~ 0.8Mpa;

Flow rate: >  0.5m³/min

11. Noise: detection less than 68 dB at 1 m;

Blowback noise of the spacing pulse is excluded.

Product Advantage

Consistent with AMCA standards, the fan utilizes efficient centrifugal fan technology, resulting in an energy efficiency value of 85%. Its impeller-motor combination is low-vibration direct-connected and maintenance-free. It also has an integrated silencer with 68D noise control. The filter material is optional and has a surface wind speed of 0.6 to 1.5 m/min, a filtration accuracy of over 0.3 pm, and a filtration efficiency of over 99.9 percent.

Smart Control: The optional smart control system realizes real-time temperature monitoring, on-demand pulse cleaning, and compatibility with local and remote control;   it has an all-machine integrated design and is equipped with a large-capacity suction dust collection vehicle assembly;   each device has been sealed and pressure tested for reliable construction, with stable operation, easy installation, and transportation.

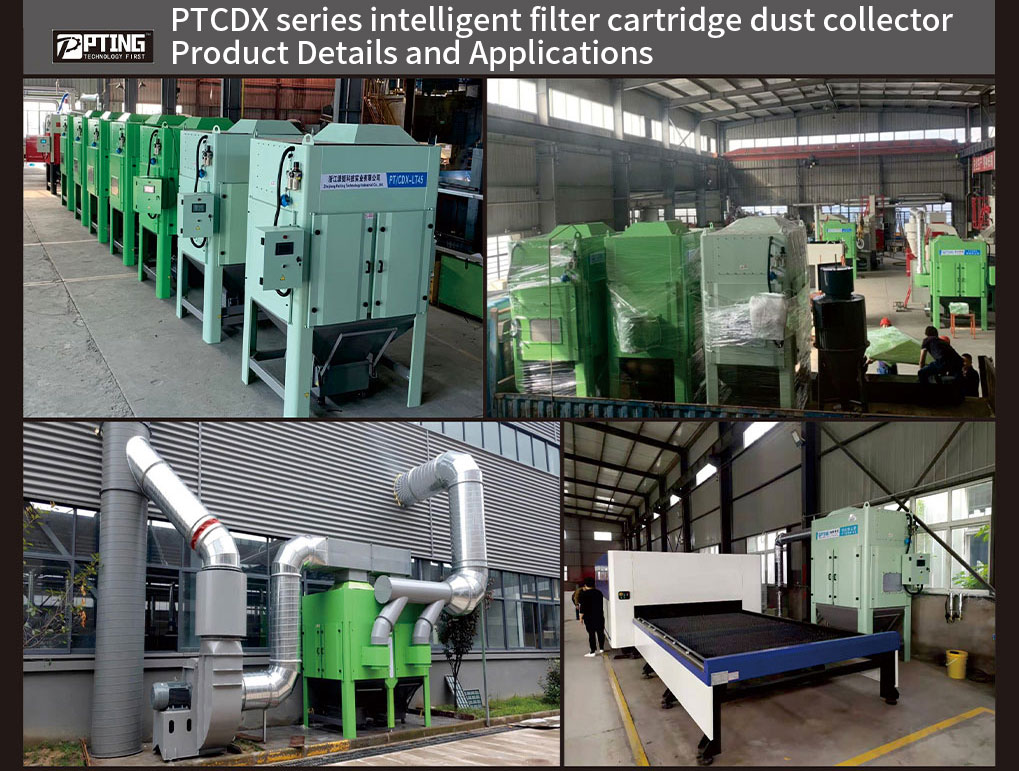

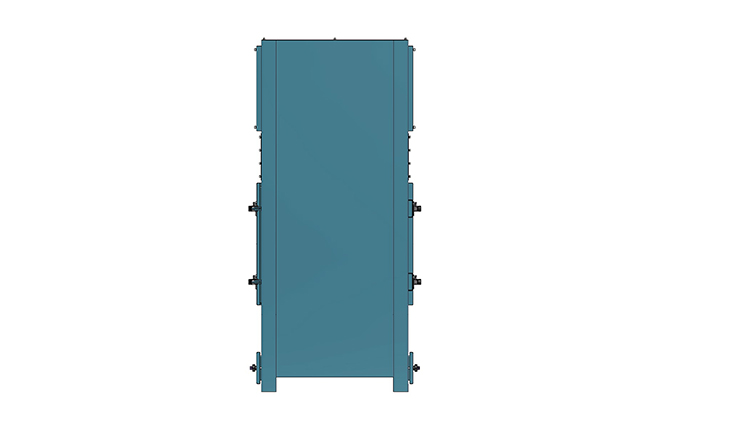

Product Photograph

Thank you for choosing PTING Technology products! In addition to providing you with quality products, we are more concerned with sincere and good service,

Building an outstanding brand in the industry is the corporate purpose of PTING. Service is the cornerstone of the brand, so creating a continuous, efficient, advanced, and perfect service system is the eternal business policy of PTING Technology.

•


  Pre-Sale

  According to the needs of users, provide professional pre-sales technical consultation for each user, help users analyze needs and process conditions; design and select ideal equipment and process solutions for users

•



  Sale

  Formulate the "Project Schedule" and "Communication Memorandum During Sales" to maintain a high degree of close communication with users on equipment technology, design, manufacturing, and installation, so that users can participate in the whole process and grasp real-time progress. Provide users with standardized and systematic professional technical training, popularize equipment and related process knowledge, conduct on-site operation demonstrations, provide maintenance common sense consultation, and provide one-stop services such as installation and commissioning

•



  After-Sales

  Establish equipment use, maintenance files, and after-sales service communication groups for each user to keep abreast of the user's usage status; provide professional consulting services for product updates and function improvements, equip a professional after-sales service team, and regularly return visits to new and old customers and equipment Maintenance, establish a spare parts warehouse for equipment parts to meet the timely needs of users to replace parts during maintenance

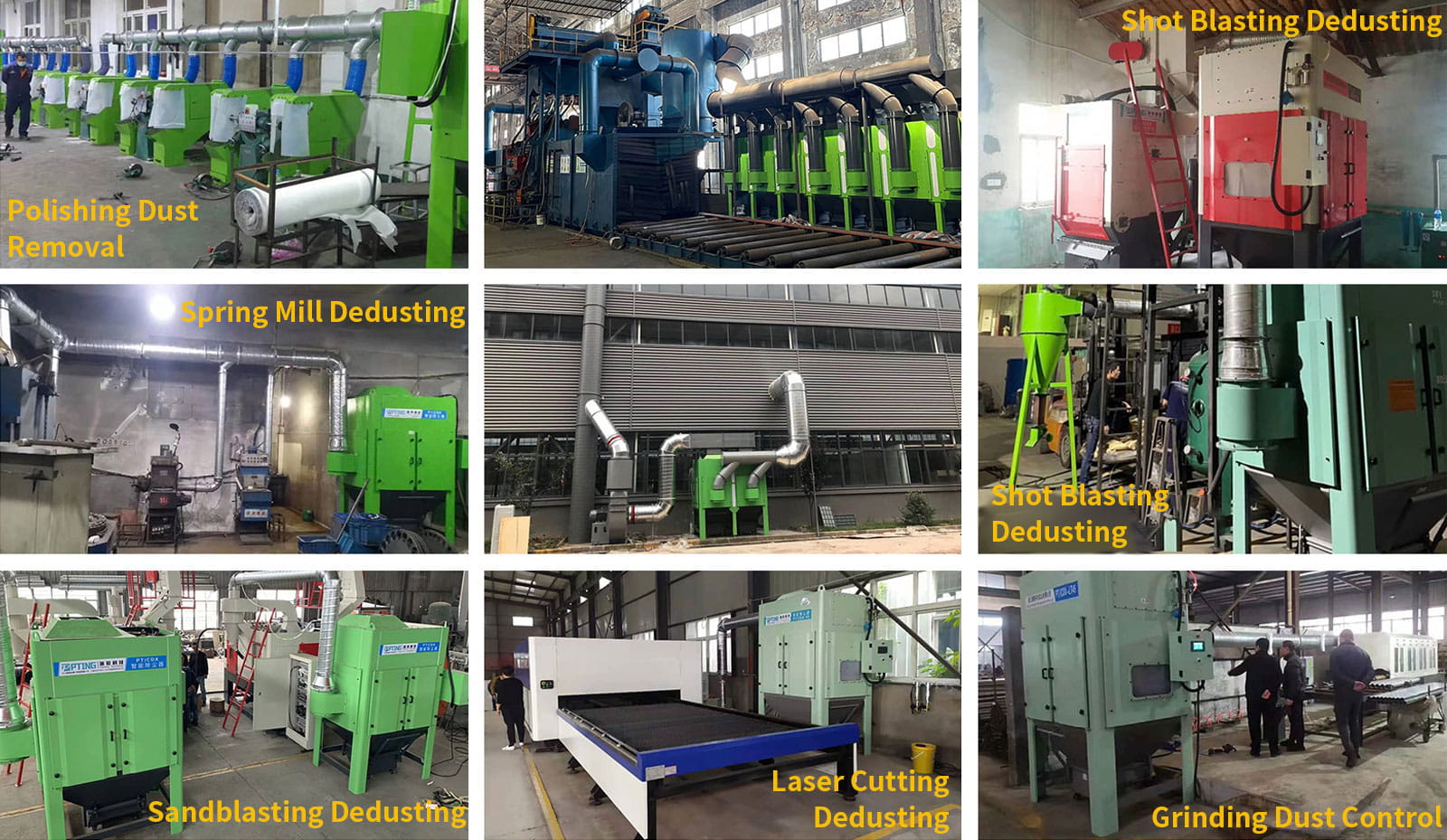

User Scenario

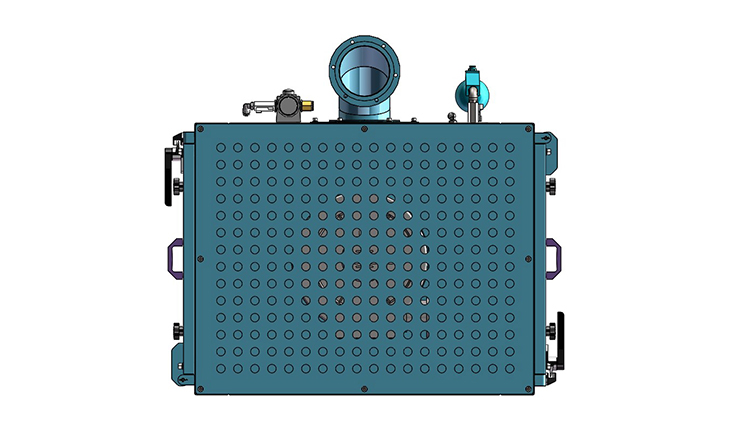

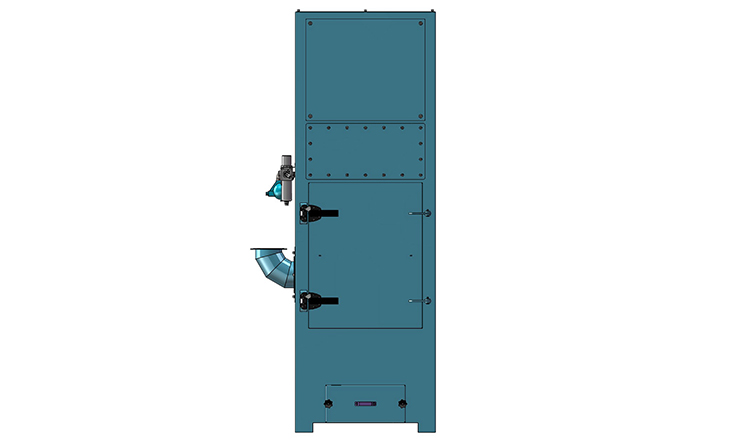

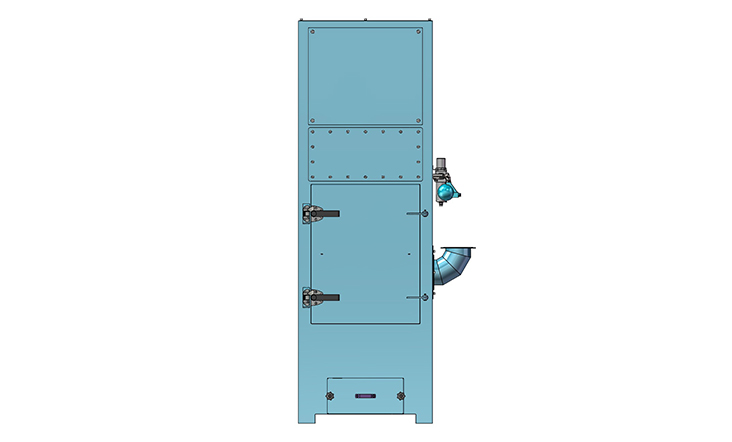

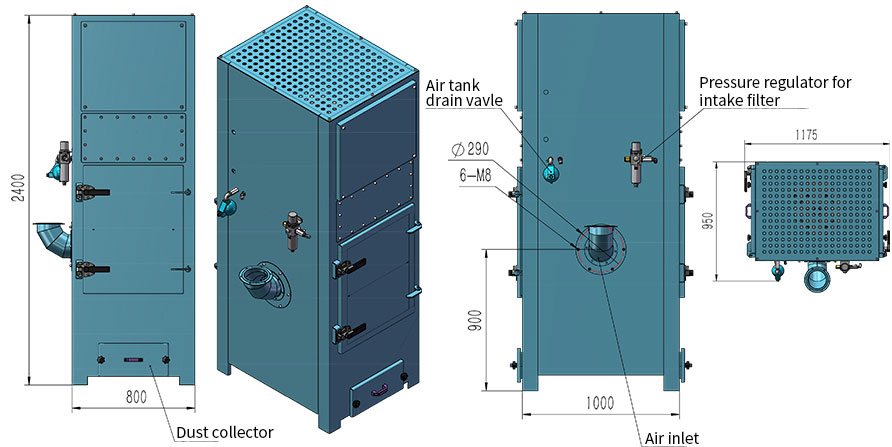

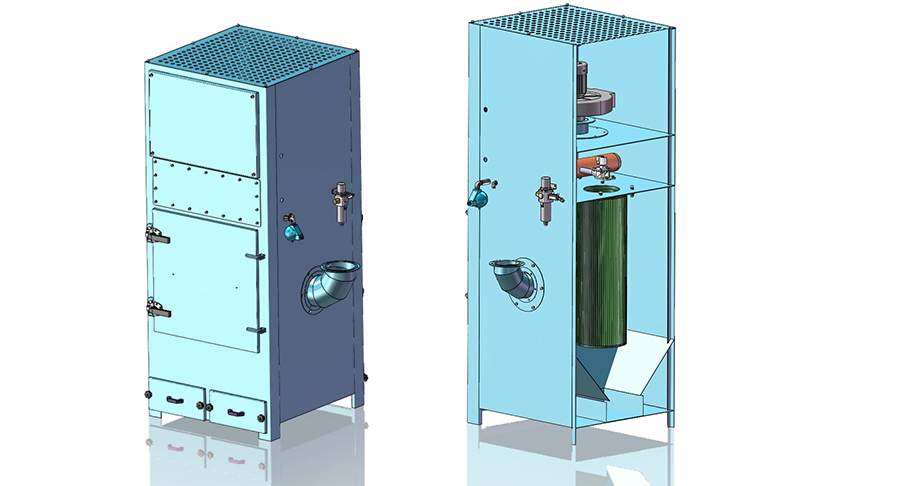

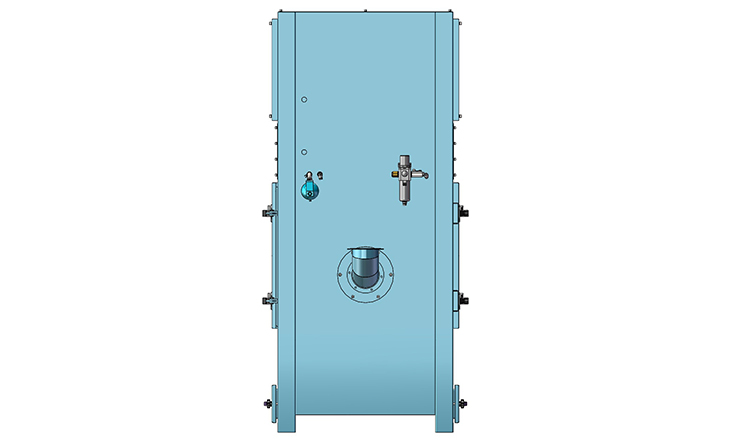

Fuselage Mechanism And Dimensions
