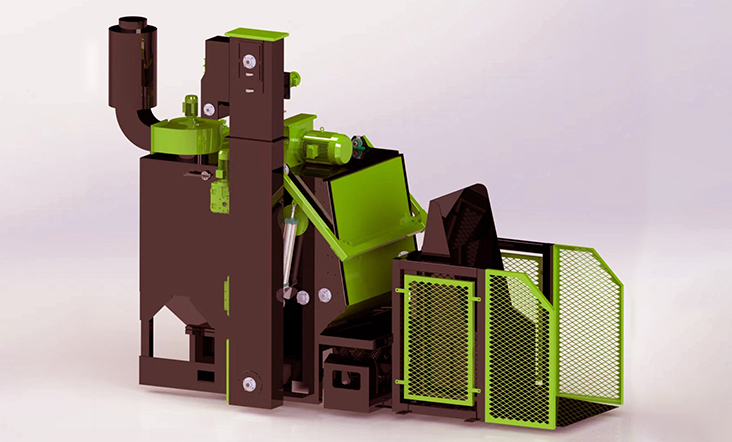

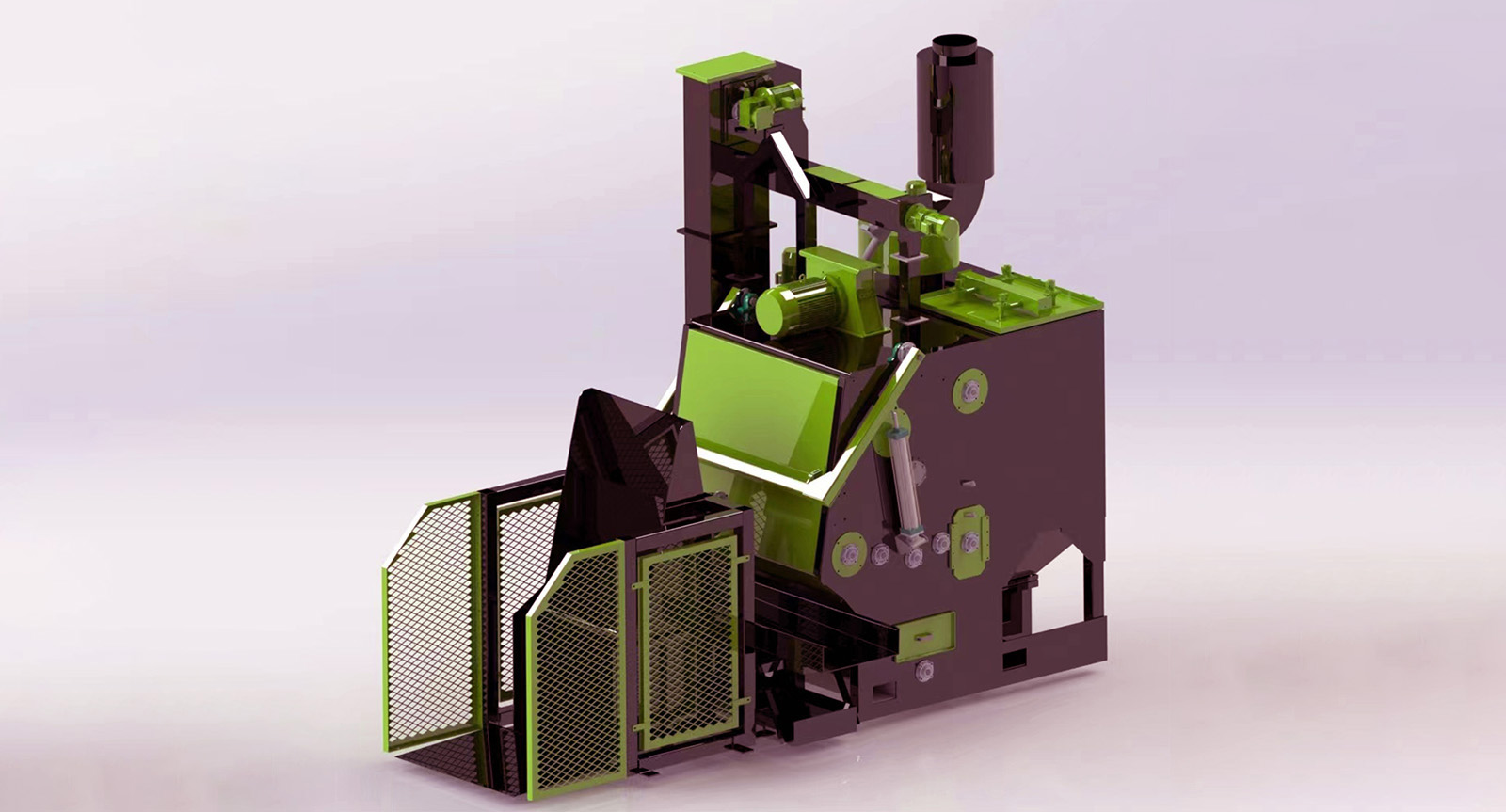

PTBL crawler shot blasting machine

Product Description

PTBL series crawler shot blasting machine is a kind of special equipment designed and manufactured by our company according to the cleaning process requirements of metal parts. Its function is to clean small metal parts by shot blasting so that the surface of the workpiece can meet the technological requirements of the next process. The structure of the equipment is reasonable, the operation is convenient, the dust emission is up to the standard, the noise is low, the response speed of each movement mechanism is fast, and the reliability is good.

Scope of Application

It is suitable for cleaning and finishing fasteners, die castings, precision castings, and precision forgings. Remove the surface oxide skin of heat treatment parts, castings, and forgings. Strengthening of the spring.

Contact Us

Parameters

Device Parameters

Function configuration Specifications Remark
B100L B300L
Integrated design Dimensions (L*W*H) 1800*1980*2800mm 2650*4800*3900mm Easy to transport and install
Equipment weight ≈2800kg ≈5000kg
Shot blaster Model WZL360C WZL400
Motor Power 7.5kw 11/15kw
Shot Flow 100kg/min 200kg/min
Adjustable speed Inverter control o
Consumables Precision Casting/ Special Total Quenching
Shot blasting chamber Open/ close method Cylinder Link drive control
Turntable diameter φ650mm φ1000mm
Turntable spacing 900mm 1100mm
Chamber body shield Mn13 (partial double-layer protection) High manganese steel alloy guard plate
Rubber track Aperture optional φ4~10mm
Bearing seal Maintenance free
Shot circulation system Increase motor power 1.1kw
Shot lift 8t/h 12t/h
Splitter Internal integration
Screw motor power 0.75kw
Flow control valve Manually controllable
Workpiece Runtime Feeding method Hydraulic cylinder upper hopper
Hydraulic system power 1.5kw
Unloading method Vibrating conveyor
Vibration conveyor motor power 3kw
Track drive motor power 0.75kw 1.1kw Gear reducer
Handle piece weight ≤10kg ≤30kg
Track carrying weight (max) 300kg 600kg
Track drive speed adjustable Inverter control o
Dust removal system Fan power 1.5kw 3kw
Dust removal air volume 2500m³/h 4000m³/h
Dust emissions <10mg/m³ <10mg/m³
Filter element Laminated anti-static (2 pieces) Film anti-static (4 pieces) Custom made
Filter element filter area 32㎡ 64㎡
Settling chamber Internal integration
Cleaning method Pulse blowback
noise ≤85dB
Electrical control system Electric control cabinet Custom made
Control Panel Aluminum alloy Aluminum alloy
Low-voltage electrical components Chint Chint/ Schneider
Pneumatic Components AIRTAC AIRTAC
operating Voltage 380V 380V
Inverter Honeywell/SIEMENS Honeywell/SIEMENS o
PLC/ touchscreen O Domestic/SIEMENS
Security system Drive shaft monitoring O Sensor sensing

Notes:

(1) Remark "O" is an optional item (additional pricing for optional items).

(2) Remarks "/" are replaceable items (if the replacement item exceeds the original item, the excess part will be priced separately)

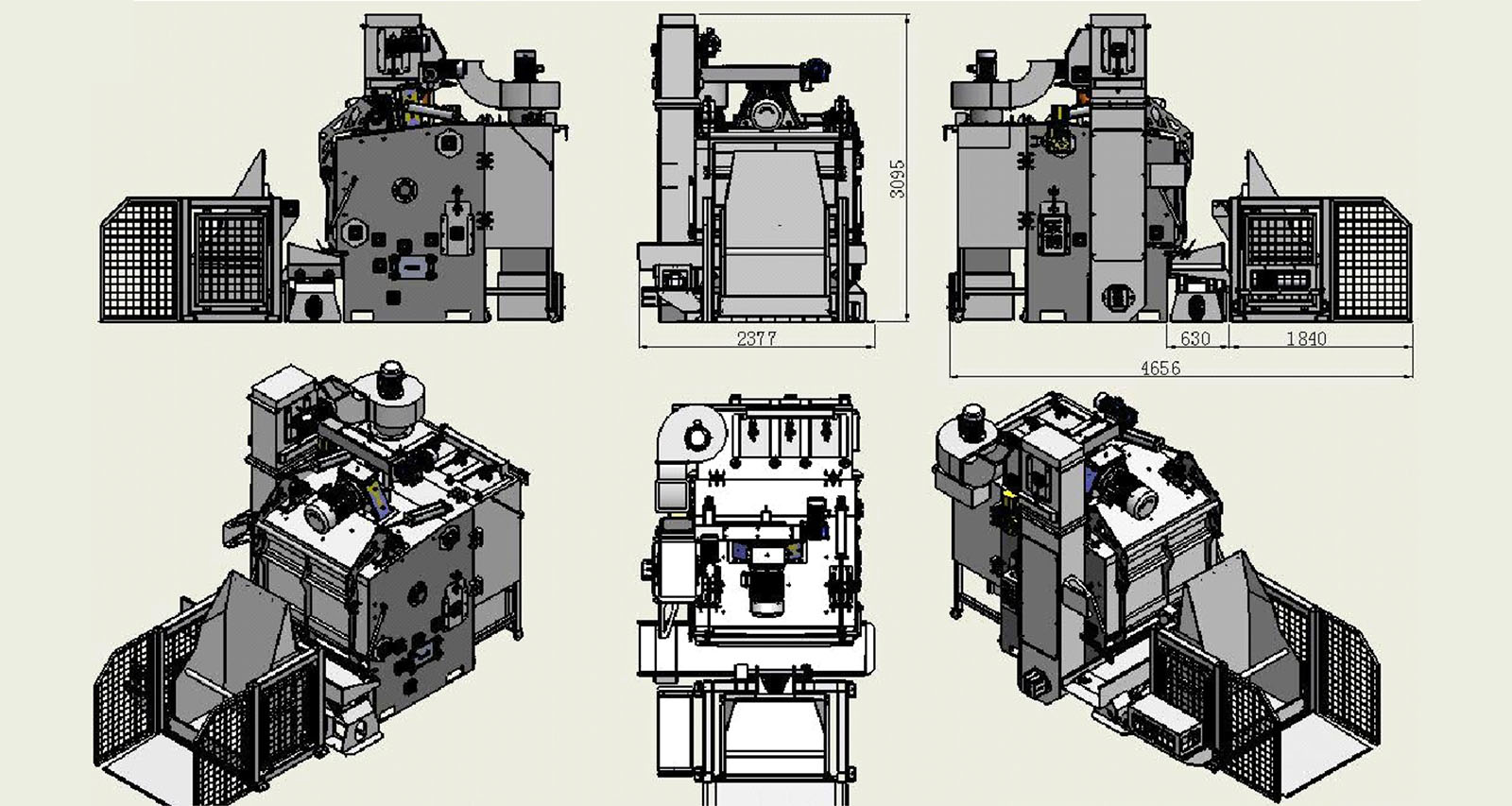

Equipment Structure Size

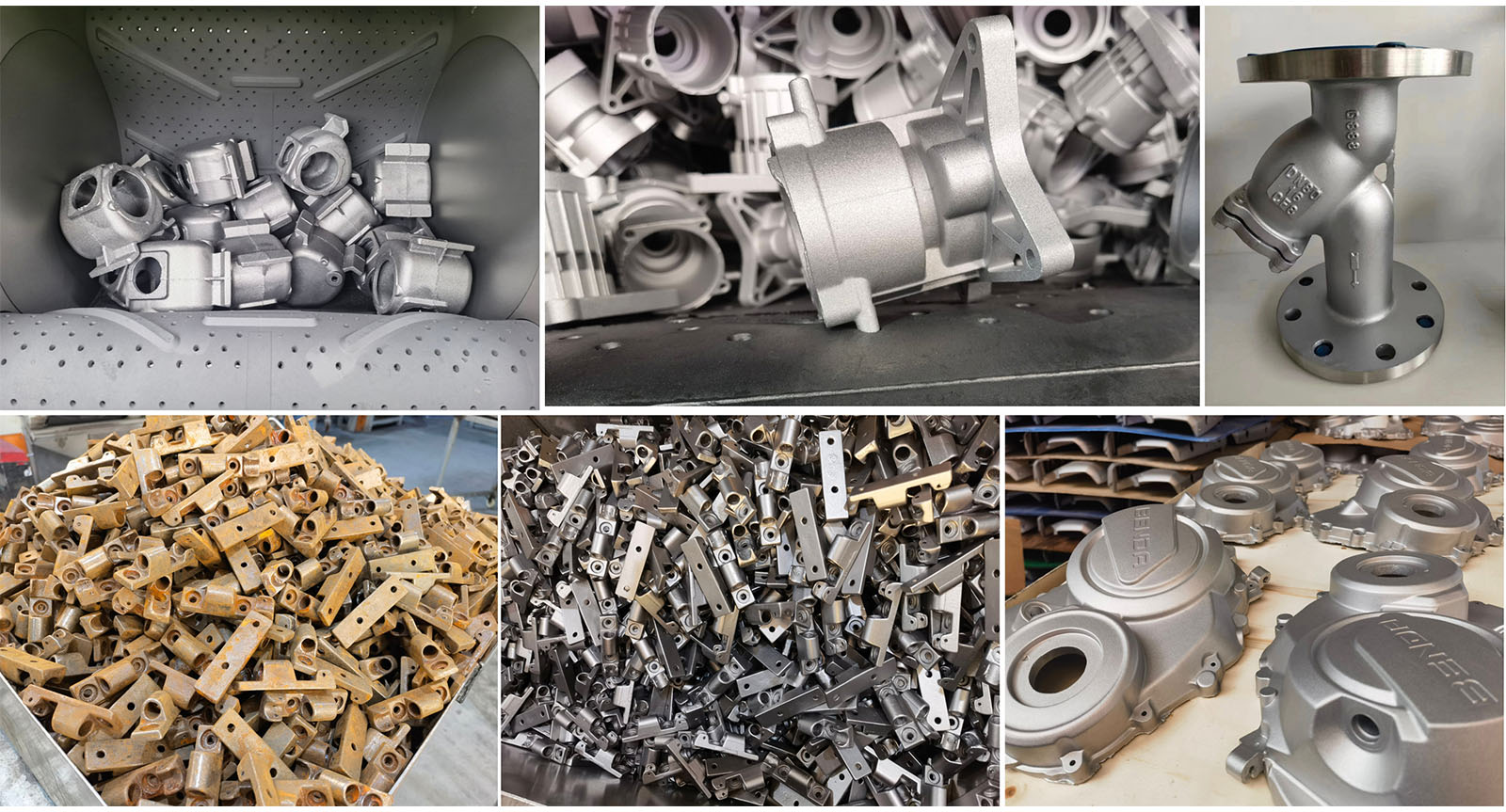

Product Application Field

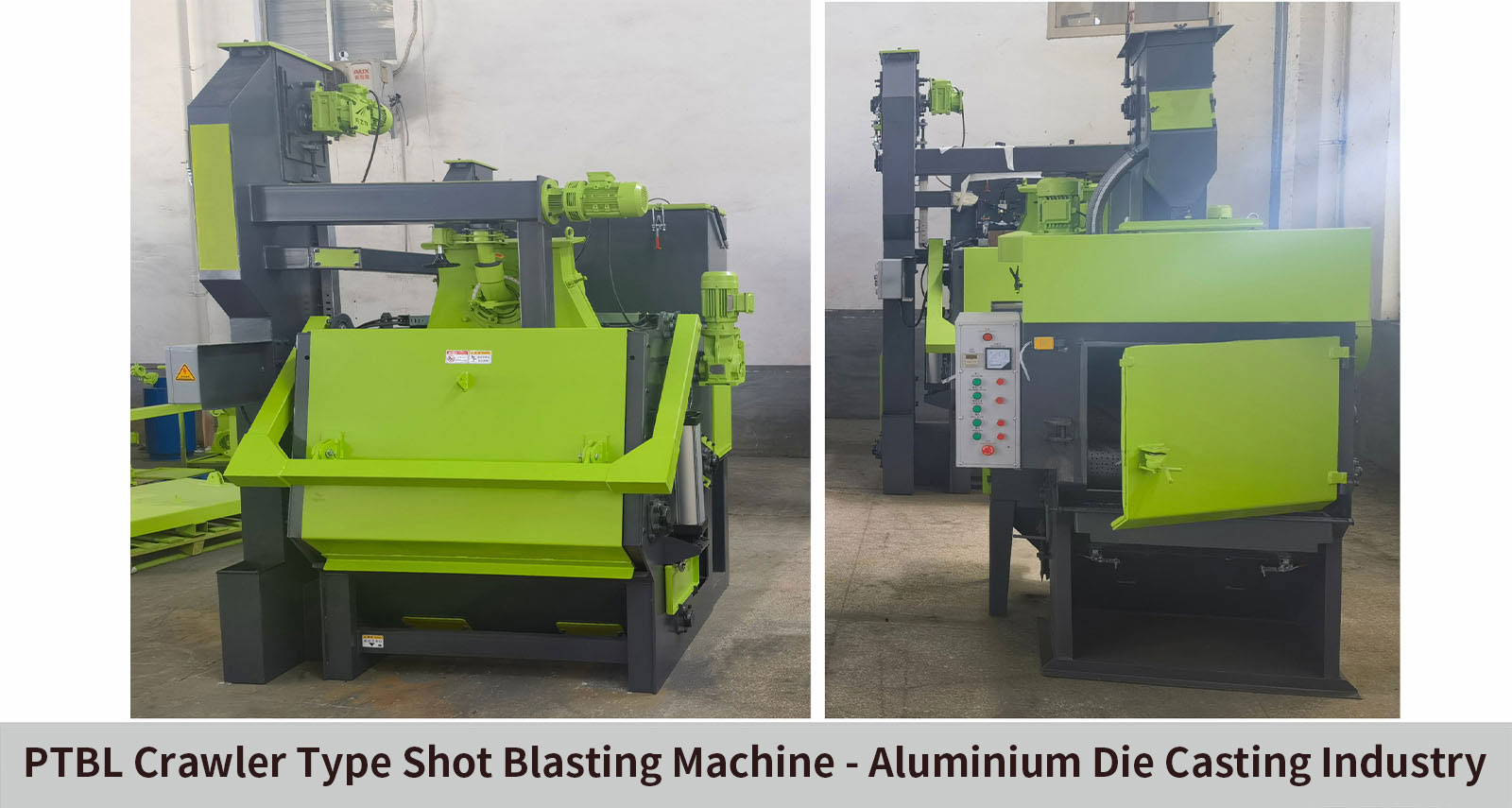

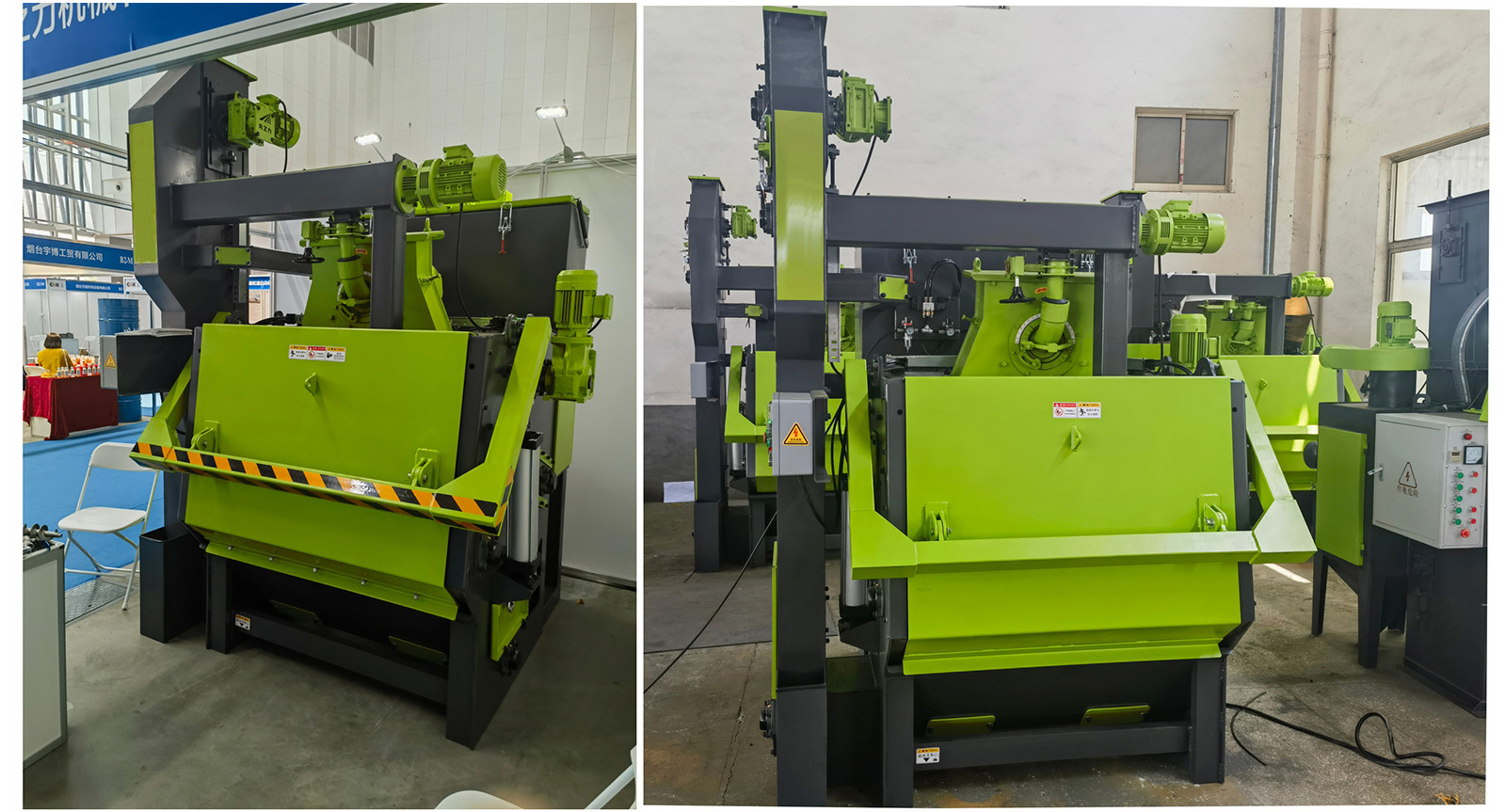

User Scenario
