Sand Blasting Tanks

PT-KPB/AC Series Pressure-fed Blast Tanks

Product Description:

The PT-KPB/AC series of pressure sandblasting tanks are suitable for steel structures, and large sandblasting rooms in pipe parts workshops, and can also be mounted on mobile construction trucks for long-term intermittent operation. It has excellent stability and is easy to maintain. The valves can be arbitrarily chosen and matched according to the abrasive and can be selected with two guns or multiple guns.

Scope of Application

Repairs of shipbuilding, steel construction, equipment, pipe fittings, and castings.

All kinds of non-standard sandblasting equipment can be customized for you according to customer products, processes, and site conditions.

To provide you with a more accurate sandblasting process and equipment solution, fill in as many details as you can:

PT-KPB/AC Series Pressure-fed Blast Tanks

PREV：No previous article

NEXT：No next article

Parameters

Device Parameters

Comparison table of volume and size of common models of KPBM series high-efficiency pressure-fed sand blasting machine
Feature/Size	KPBM（R）1030	KPBM（R）1140	KPBM（R）1360	KPBM（R）1560	KPBM（R）1570	KPBM（R）1760	KPBM（R）1990
Diameter（mm）	300	400	600	600	700	600	900
Height（mm）	1000	1100	1300	1500	1500	1700	1900
Volume（m³）	0.08	0.15	0.3	0.3	0.4	0.4	1
Bunker	1	1	1	1	1	2	1
Nozzle	1	1	1	1	1	2 January	2 January
Notes	M=Mobile S=Stationary R=Pneumatical E=Electronical

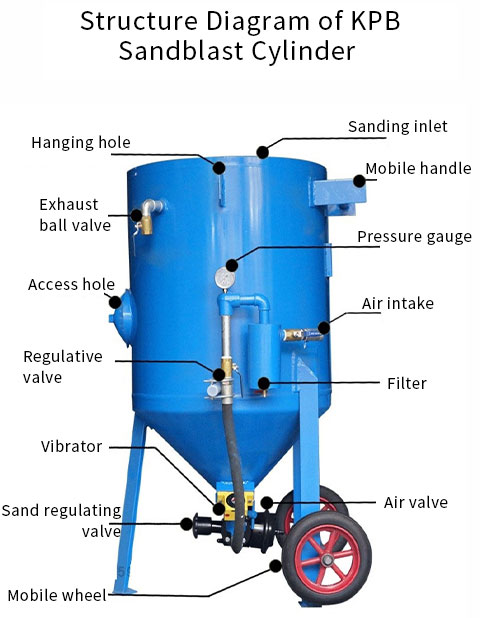

Description of the KPB Series Sandblasting Model: KPBS[M]MRXX XXE

K: Enterprise code

P: Pressure type

B: Sandblasting machine

S: Stationary type

M: Mobile type

R: Pneumatic remote control

XX: Diameter of total body

E: Electric remote control

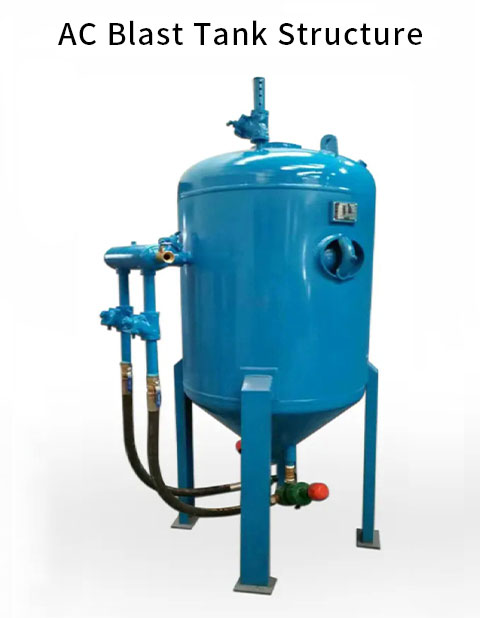

According to the needs of different places, there are a total of more than 30 models of pressure-type sandblasting machines, which are mainly divided into "AC" and "KPB" series. It works essentially the same, with the main difference being that the one-time load of sand is larger in the former, while it is convenient to add sand in the latter.

Table of Volume and Size Comparisons for the Commonly Used Models of the ACM Series High-efficiency Sandblasting Machines
Feature/Size	ACM(R)-0P	ACM(R)-1P	ACM(R)-3	ACM(R)-3L	ACM(R)-4	ACM(R)-3P	ACM(R)-3LP	ACM(R)-5
Diameter of Barrel（mm）	350	400	750	750	900	750	750	1200
Height（mm）	900	1100	1500	1700	1800	1500	1700	2000
Volume（m³）	0.08	0.15	0.266	0.363	0.49	0.266	0.363	1
Bunker	1	1	1	1	1	1	1	1
Nozzle	1	1	1	1	1	1	1	1
Notes	ACM=Manual control ACMR=Pneumatic remote control ACME=Point remote control 2A=2gun P=Wheeled type
