Non-metallic abrasives

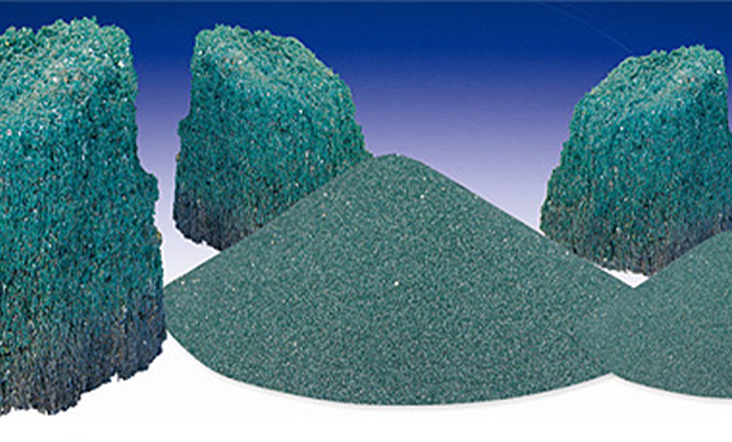

Sandblasted green silicon carbide

Parameters

Green silicon carbide is a non-metallic mineral product produced from quartz sand (SIO2), petroleum coke (C) and sodium chloride (NACL) at a high temperature above 1800 degrees Celsius. It has high hardness, small expansion coefficient, Brittleness, good thermal conductivity and so on. Widely used in abrasives, electronic product grinding, refractory materials, special ceramics, coating and plastic modification, making grinding wheels, cutting discs, auto parts, military aviation, etc.

Physical indicators:

Granularity number	Particle size (um)	Specification	features
12#	2000	Shape: Polygon	The main raw materials are quartz sand, stone sand, and petroleum coke, which are smelted at high temperatures in a resistance furnace. Green crystal, microhardness.
16#	1400	Bulk density: 3.12g/cm³
twenty-four #	850	Typical composition (%):
30#	710	sic≥:98
36#	600	Fe₂O₃≤: 0.8
46#	425	Color: green
60#	300	Packing: 25kg
80#	212
100#	150
120#	125
150#	106
180#	90
220#	75
280#	50
320#	40

Green silicon carbide powder:

granularity	SiC ≥ %	F.C ≤ %	Fe₂O₃ ≤ %	Grit	SiC ≥ %	F.C ≤ %	Fe₂O₃ ≤ %
F230	99.2	0.15	0.15	F800	98	0.25	0.25
F240	99.2	0.15	0.15	F1000	96.5	0.3	0.3
F280	99.2	0.15	0.15	F1200	95.3	0.3	0.43
F320	99	0.15	0.18	F1500	94.8	0.3	0.3
F360	99	0.2	0.18	F2000	94.5	0.33	0.3
F400	98.8	0.2	0.18	F2500	94.3	0.33	0.33
F500	98.8	0.2	0.25	F3000	94.3	0.33	0.33
F600	98.5	0.25	0.25
