Sandblasted brown corundum Wholesale

Non-metallic abrasives

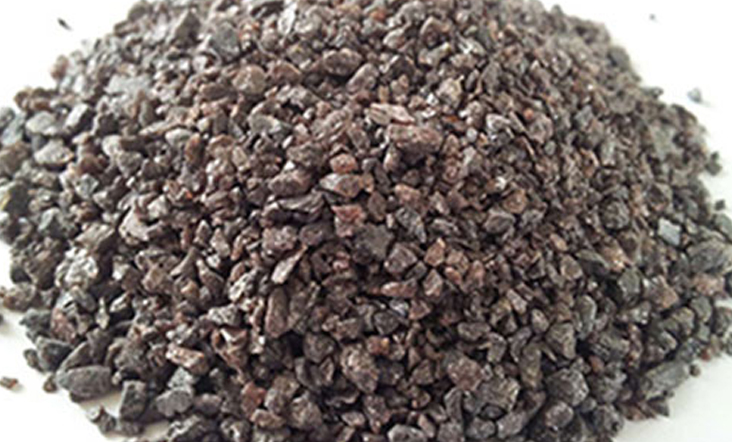

Sandblasted brown corundum

Brown fused alumina is made of bauxite and coke (anthracite) as the main raw materials, and is smelted at high temperature in an electric arc furnace. The main chemical composition of brown corundum is AL2O3, its content is 94.5%-97%, and it also contains a small amount of Fe, Si, Ti, etc. Brown fused alumina has the characteristics of high purity, good crystallization, strong fluidity, low linear expansion coefficient and corrosion resistance.
Contact Us

Parameters

Brown fused alumina is made of bauxite and coke (anthracite) as the main raw materials, and is smelted at high temperature in an electric arc furnace. The main chemical composition of brown corundum is AL2O3, its content is 94.5%-97%, and it also contains a small amount of Fe, Si, Ti, etc. Brown fused alumina has the characteristics of high purity, good crystallization, strong fluidity, low linear expansion coefficient and corrosion resistance.

crystal form Trigonal system
chemical properties both sexes
react with acid Slightly reactive in aqua regia and hydrofluoric acid
react with alkali Reacts only slowly with hot solutions of strong bases
Redox reactions no
Density (g/cm³) 3.97
hardness Knoop 2000-2200 Kg/c㎡
Mohs 9
color dark brown
Calcined color light blue
melting point 20000C
Maximum operating temperature 19000C
Specific heat ((cal/g.0c) 0.26 (20-290C)
Thermal conductivity (Cal/cm³. sec. C) room temperature 9000C
0.047 0.013

Resistivity (Wcm) 300C 3000C 9000C 16000C
1016 1013 105 104
Linear expansion coefficient 7-9(0-16000C)
chemical composition 10#-90# 100#-180# 200#-220# 230#-400# 500#-1200#
AL2O3 94.5-97.0 93.5min 92.5min 91.0min 89.0min
Na₂O 1.5-3.8 1.5-3.8 1.5-3.8 4.0max 4.0max

Chemical and physical properties:

Magnetic substance content (calculated by weight percentage)

granularity Magnetic substance content
16#--30# <0.0380
36#-60# <0.0280
70#-120# <0.0230
150#-220# <0.0170


available granularity

F12.F14.F16.F18.F20.F22.F24.F36.F40.F46.F54.F60.F70.F80.F90.F100.F120.F150.F180
F220.F230.F240.F280.F320.F360.F400.F500.F600.F800.F1200.F1600
JIS240.JIS280.JIS320.JIS360.JIS400.JIS500.JIS600.JIS800.JIS1200.JIS1500 , JIS2000.JIS2500 , JIS3000
P24.P30.P36.P40.P50.P60.P70.P80.P90.P100.P120.P150
P180.P220.P240.P280.P320.P360.P400.P500.P600.P800.P1000.P1200
Other granularities can be customized according to customer requirements


use:

Ceramic Abrasives grinding
Resin abrasive sandblasting
Coated Abrasives polish
barrel polishing Deburring
Automatic Roll Polishing non-slip
Abrasive paste wire saw

Package:

25 kg package, and can also be packaged according to customer requirements.
