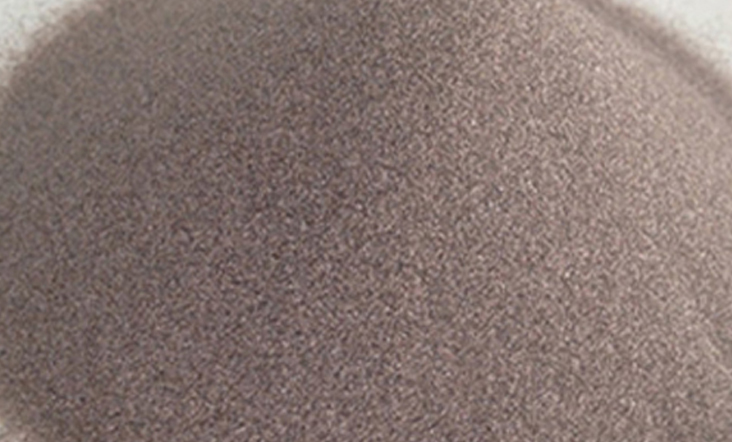

Brown fused alumina is made of bauxite and coke (anthracite) as the main raw materials, and is smelted at high temperature in an electric arc furnace. The main chemical composition of brown corundum is AL2O3, its content is 94.5%-97%, and it also contains a small amount of Fe, Si, Ti, etc. Brown fused alumina has the characteristics of high purity, good crystallization, strong fluidity, low linear expansion coefficient and corrosion resistance.
crystal form | Trigonal system | ||
chemical properties | both sexes | ||
react with acid | Slightly reactive in aqua regia and hydrofluoric acid | ||
react with alkali | Reacts only slowly with hot solutions of strong bases | ||
Redox reactions | no | ||
Density (g/cm³) | 3.97 | ||
hardness | Knoop | 2000-2200 Kg/c㎡ | |
Mohs | 9 | ||
color | dark brown | ||
Calcined color | light blue | ||
melting point | 20000C | ||
Maximum operating temperature | 19000C | ||
Specific heat ((cal/g.0c) | 0.26 (20-290C) | ||
Thermal conductivity (Cal/cm³. sec. C) | room temperature | 9000C | |
0.047 | 0.013 |
Resistivity (Wcm) | 300C | 3000C | 9000C | 16000C | |||||
1016 | 1013 | 105 | 104 | ||||||
Linear expansion coefficient | 7-9(0-16000C) | ||||||||
chemical composition | 10#-90# | 100#-180# | 200#-220# | 230#-400# | 500#-1200# | ||||
AL2O3 | 94.5-97.0 | 93.5min | 92.5min | 91.0min | 89.0min | ||||
Na₂O | 1.5-3.8 | 1.5-3.8 | 1.5-3.8 | 4.0max | 4.0max |
Chemical and physical properties:
Magnetic substance content (calculated by weight percentage)
granularity | Magnetic substance content |
16#--30# | <0.0380 |
36#-60# | <0.0280 |
70#-120# | <0.0230 |
150#-220# | <0.0170 |
Available granularity
F12.F14.F16.F18.F20.F22.F24.F36.F40.F46.F54.F60.F70.F80.F90.F100.F120.F150.F180 |
F220.F230.F240.F280.F320.F360.F400.F500.F600.F800.F1200.F1600 |
JIS240.JIS280.JIS320.JIS360.JIS400.JIS500.JIS600.JIS800.JIS1200.JIS1500 , JIS2000.JIS2500 , JIS3000 |
P24.P30.P36.P40.P50.P60.P70.P80.P90.P100.P120.P150 |
P180.P220.P240.P280.P320.P360.P400.P500.P600.P800.P1000.P1200 |
Other granularities can be customized according to customer requirements |
use:
Ceramic Abrasives | grinding |
Resin abrasive | sandblasting |
Coated Abrasives | polish |
barrel polishing | Deburring |
Automatic Roll Polishing | non-slip |
Abrasive paste | wire saw |
Package:
25 kg package, and can also be packaged according to customer requirements.
