PTPF sandblasting room Wholesale

Modular blasting room

PTPF sandblasting room

Product Description

PTPF series sandblasting room is a modular sandblasting room designed by PTING Technology after years of research and development. It has a highly modular and integrated design structure eliminating the need for on-site production.

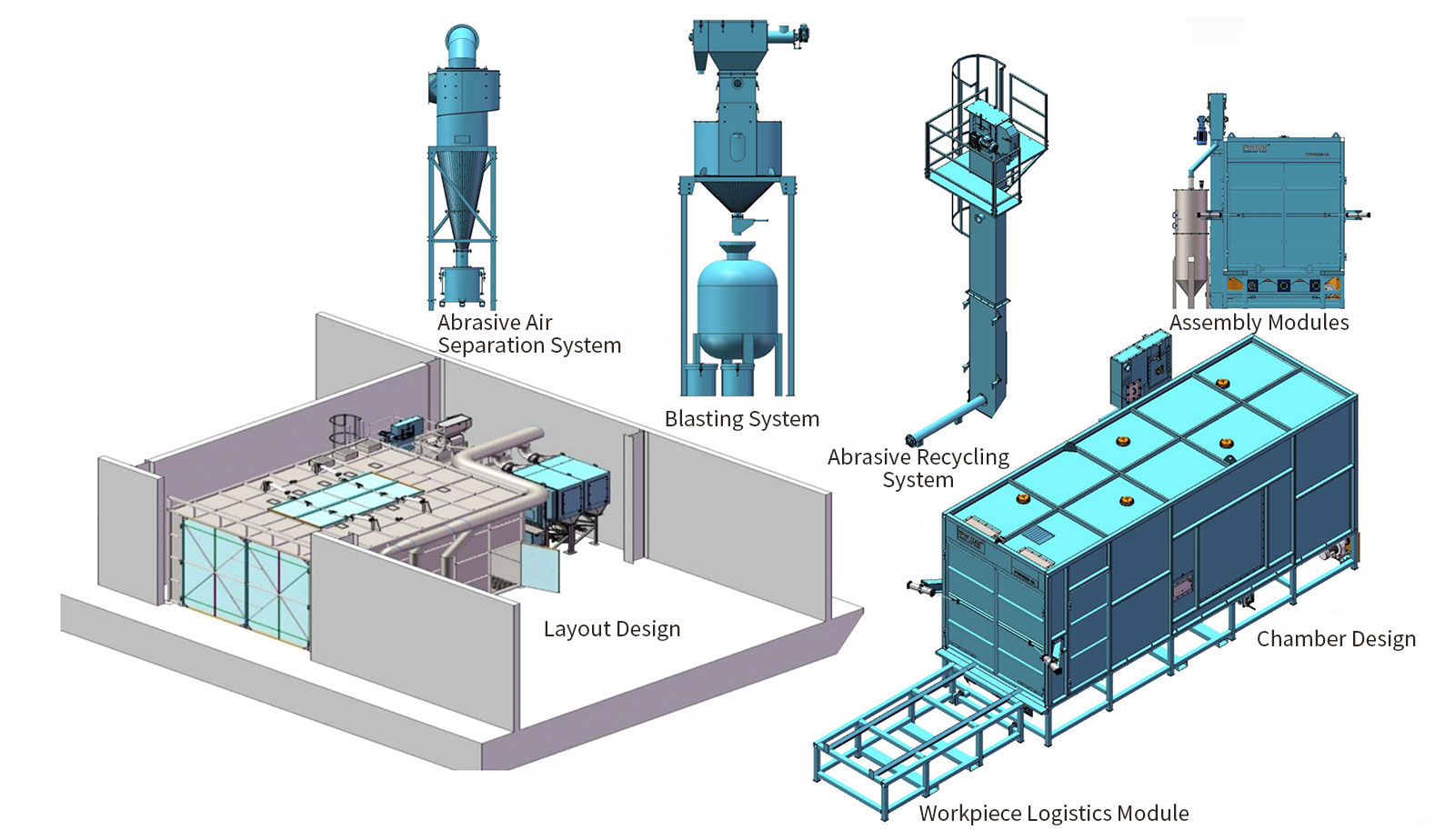

All modules:

Sandblasting equipment, dust removal equipment, recycling and sorting equipment, workpiece logistics equipment, robot equipment, electrical control systems, etc.

All are standardized in design.

It saves the investment and uncertainty of non-standard production

Scope of Application

Aircraft parts, auto parts, molds, steel structures,

Casting and forging parts, alloy parts, and other parts before sandblasting (shot) treatment.

Contact Us

Parameters

Device Parameters

Project Specifications
Standard housing 6000*2400*2300mm
Effective processing size Diameter 5000* height 1500mm
Spray gun model and quantity PTB2 2 pieces
Productivity 18-40㎡/h
Spray gun module type Swing/ rotation/ translation/ translation lift/ manipulator
Workpiece conveying and positioning type Crane/ trolley/ roller frame/ forklift
Dust removal parameters 1000-12000m³/h 2600Pa
Air source parameters Maximum 2 guns*6m³=12m³ recommended 13
Power parameters 380V, 50Hz 28KW
Device control method Smart PLC E-MES Remote
Grade and brand of electrical components Siemens Schneider SMC Air TAC
Applicable abrasive 10-120# non-metal/ metal abrasive
Abrasive first input amount 500-800KG
Total weight of equipment 10800KG
Host size 6000*2400*2300mm

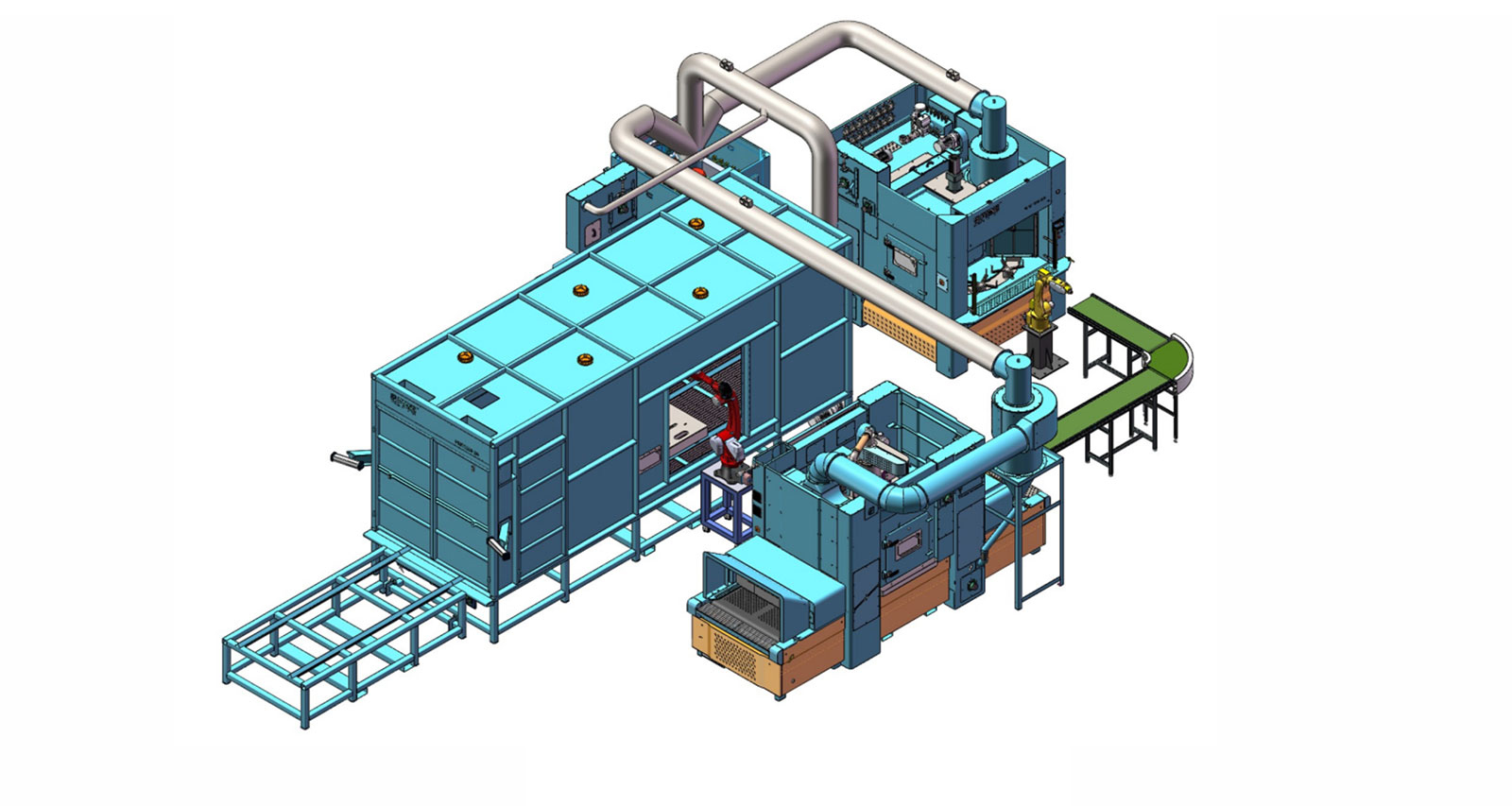

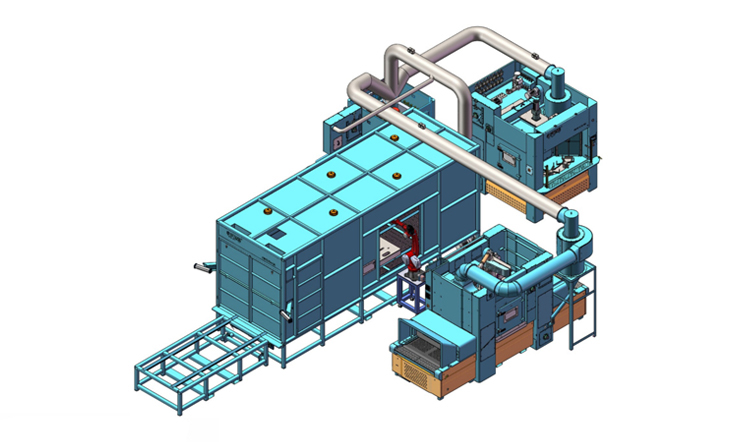

Equipment Structure Size

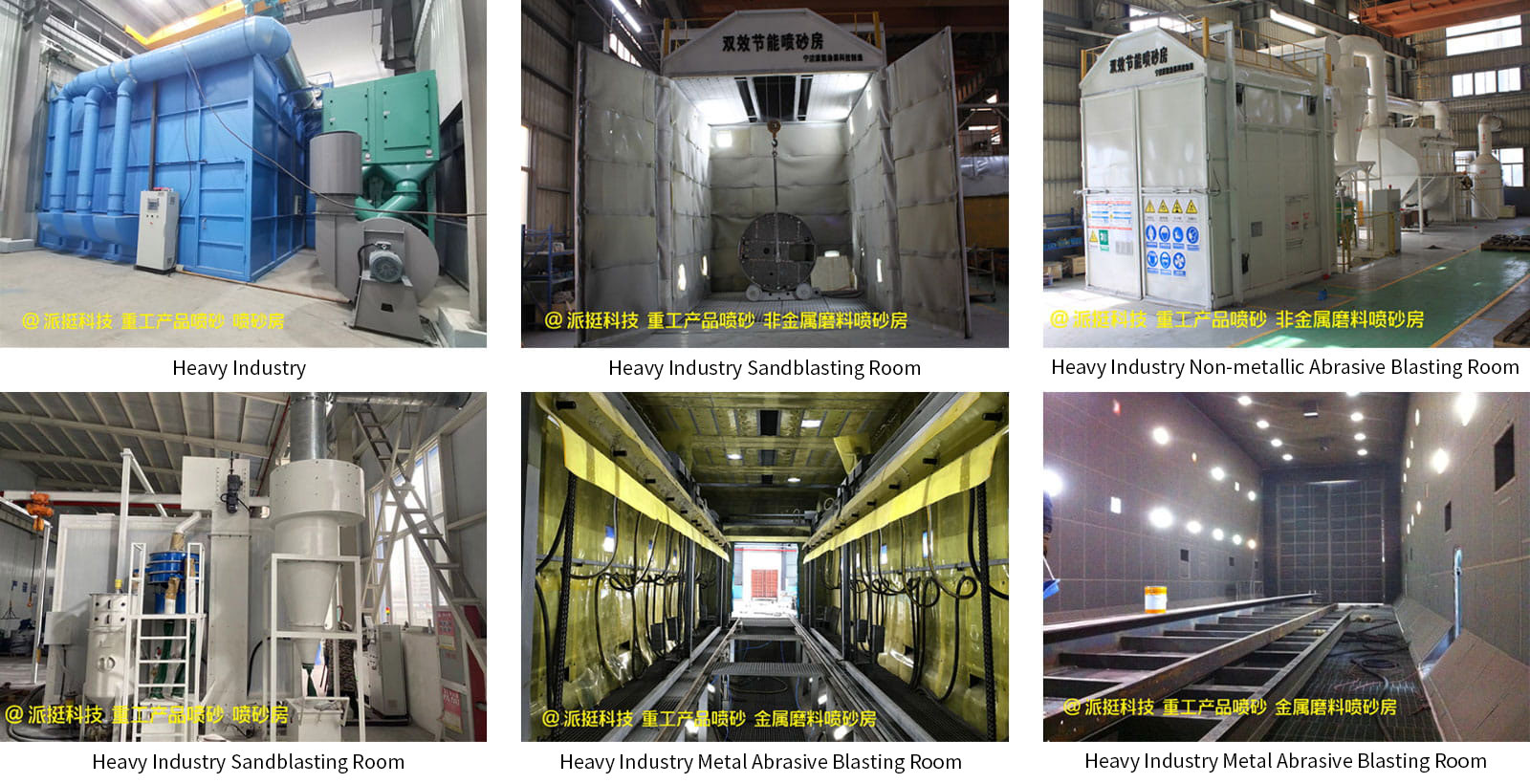

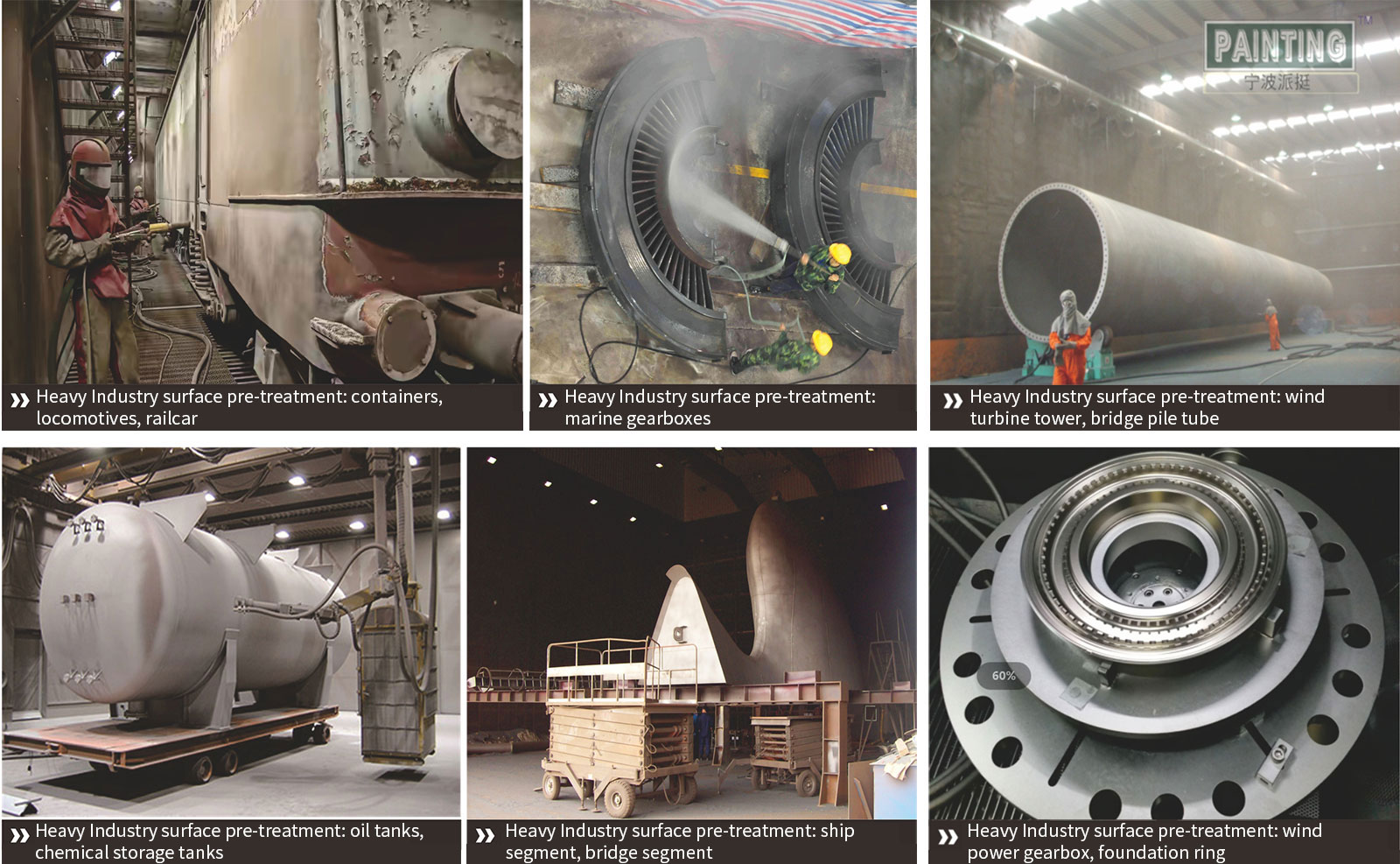

Product Application Field

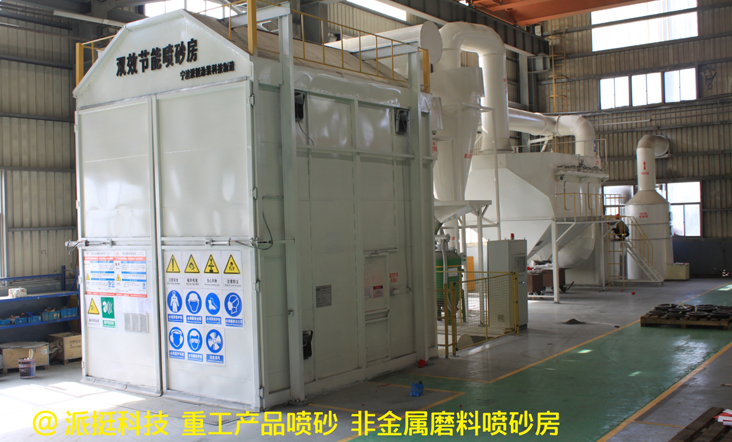

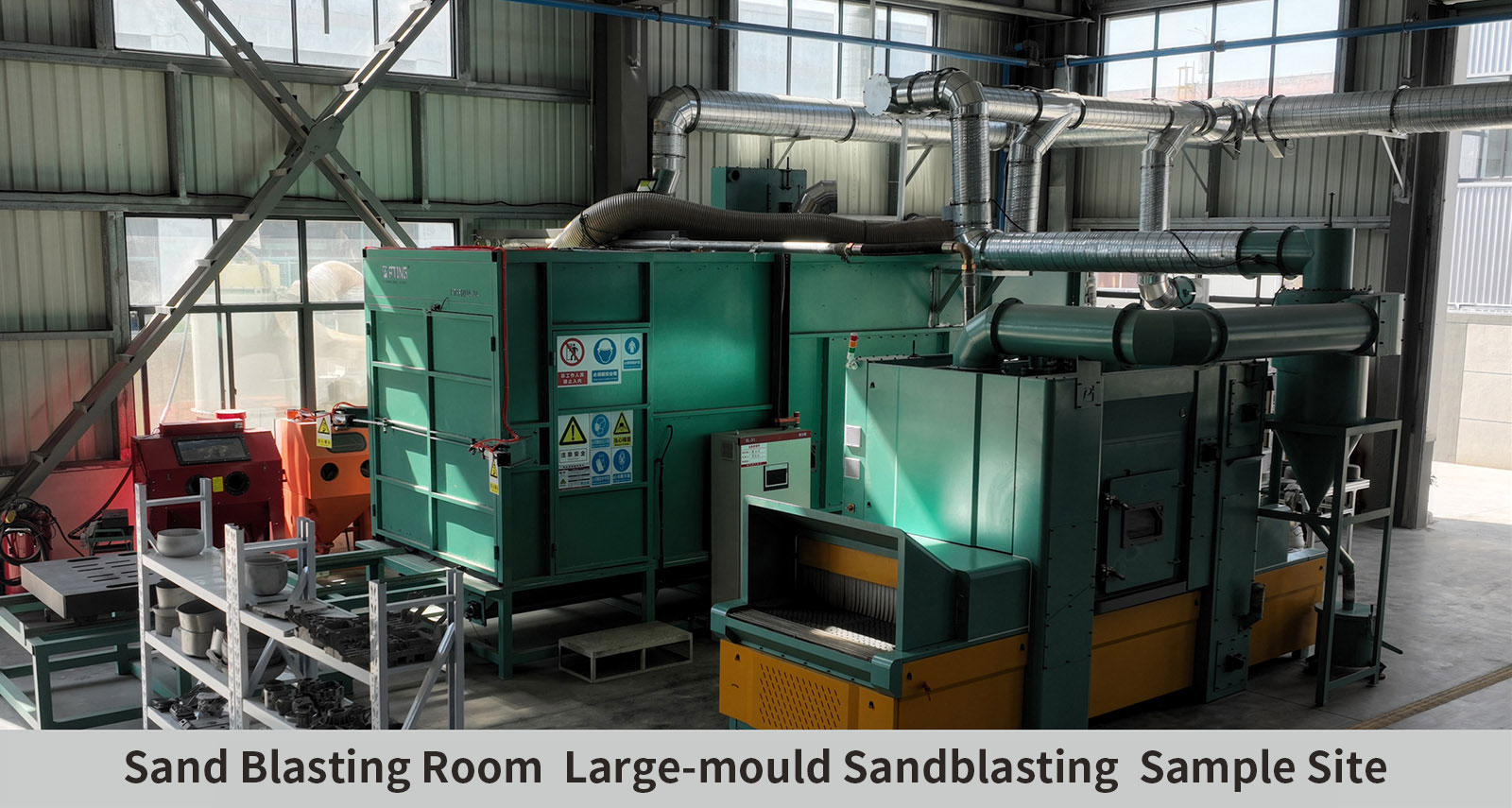

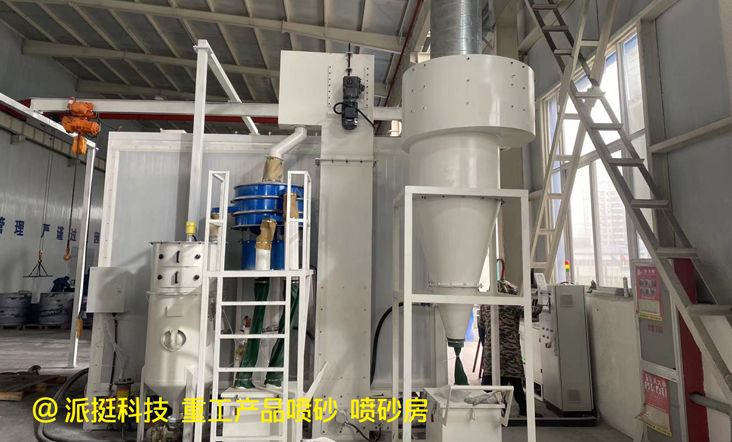

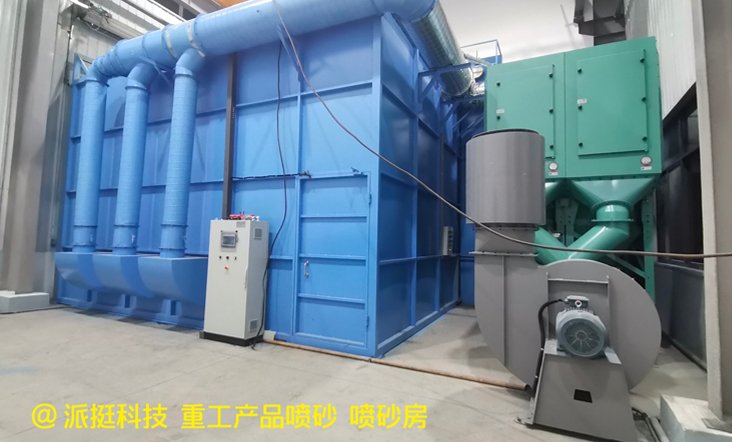

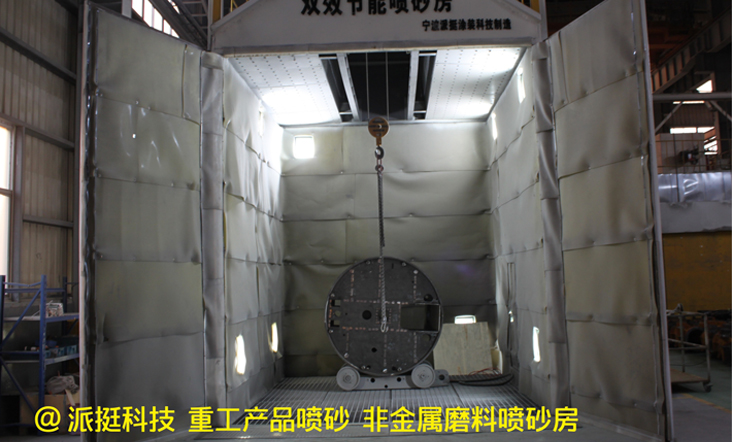

User Scenario

Contact Us

Coming From China,
Marketing To The World.

PTING Technology, founded in 2005, is a well-known domestic brand of surface treatment and environmental protection equipment system solutions. As China PTPF sandblasting room Suppliers and Wholesale PTPF sandblasting room Factory, it is committed to the R&D and manufacturing of process technology and equipment in the field of industrial surface treatment and environmental treatment. The enterprise has passed the ISO9001 quality system certification. The R&D and manufacturing base, with a building area of 25000 square meters, is located in Ningbo, China. With PTING's global overseas center in Singapore and more than 20 national offices, PTING Technology has provided surface treatment equipment, environmental protection equipment and process technology services to more than 2000 users worldwide. Users are widely distributed in: home appliance manufacturing, digital electronics, auto parts manufacturing, hardware and bathroom, new materials, new energy, rail transit, aerospace, petrochemical power, marine engineering, heavy industry equipment, agricultural machinery, engineering machinery Furniture manufacturing, etc.
