Product Parameters

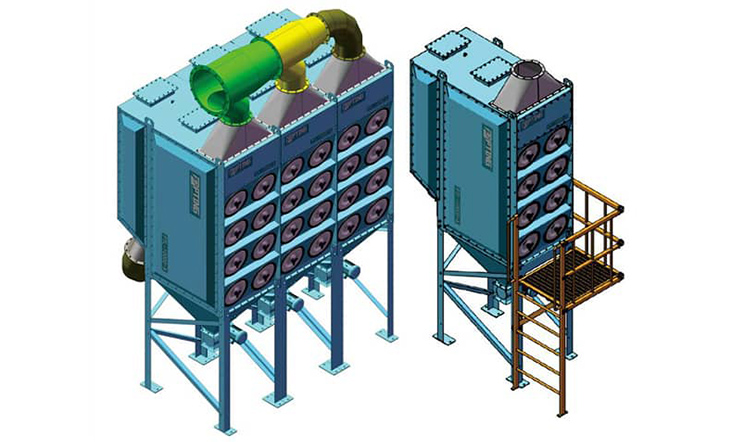

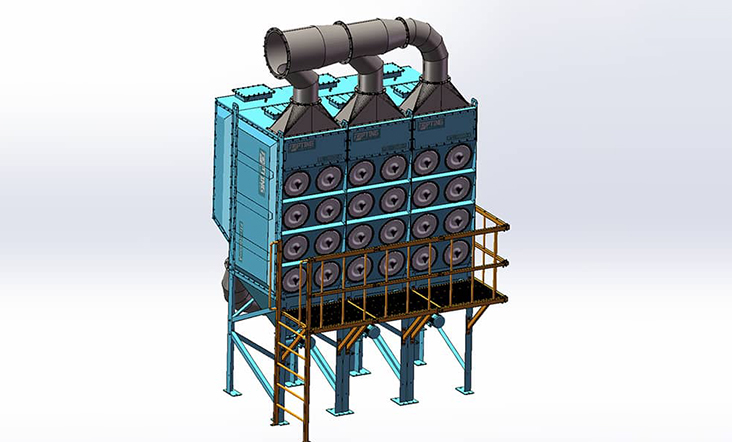

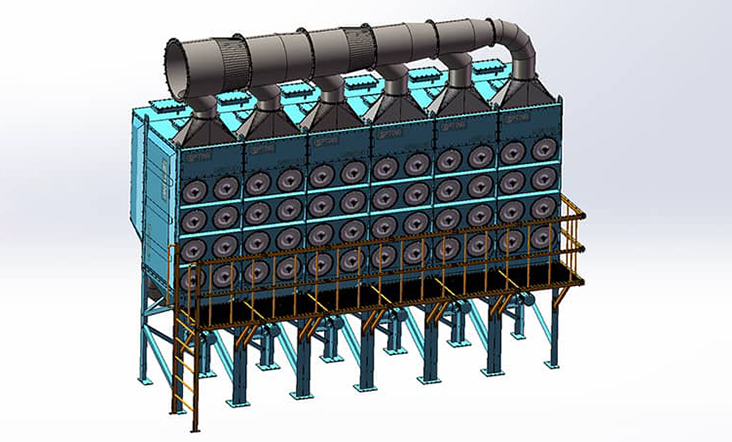

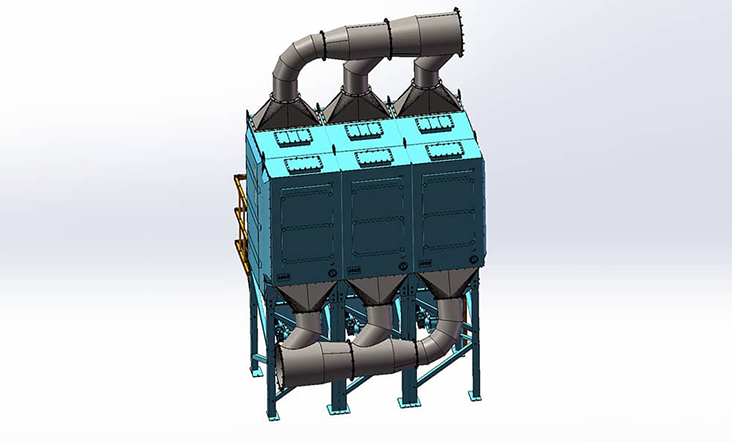

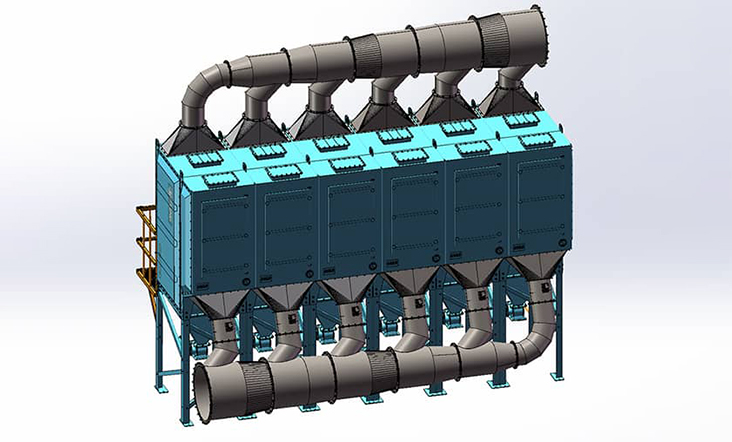

PTL Standard Model Selection and Configuration Table
| Model |
Power kW |
Air volume m³/h |
Full pressure Pa |
Cartridge Quantity ( Only) |
Filter area ㎡ |
length width height mm |
Weight kg |
| PTL 10000 |
15 |
10000—15000 |
2500-2800 |
16 |
140 |
2900*1008*4550 |
1200 |
| PTL 20000 |
22 |
20000—25000 |
2500-2800 |
32 |
280 |
2900 *2016 *4550 |
2400 |
| PTL 30000 |
30 |
30000—35000 |
2500-2800 |
48 |
420 |
2900*3024*4550 |
3600 |
| PTL 40000 |
37 |
40000—45000 |
2500-2800 |
64 |
560 |
2900*4032*4550 |
4800 |
| PTL 50000 |
55 |
50000—55000 |
2500-2800 |
80 |
700 |
2900*5040*4550 |
6000 |
| PTL 60000 |
75 |
60000—65000 |
2500-2800 |
96 |
840 |
2900 *6048 *4550 |
7400 |
| Due to the size of transportation and installation, the air volume above 60,000 adopts multi-group connection or on-site assembly. |
| Optional equipment |
AElectrical explosion-proof B Explosion-removal/explosion-proof C Special filter element DCustom-made painting F Adapted air duct G Rainproof canopy H Inspection platform |
*Parameter configuration is subject to modification without prior notice*
Technical parameters of PTL-10000 downflow filter cartridge dust collector equipment
1. Filtration area: 140 ㎡; filtration wind speed 0.02 m/s; filtration efficiency: ≥99.95%;∮320*665 filter cartridges 18 Pcs
2. Processing air volume: 10000-15000 m3/h; Fan air pressure: full pressure 2600 PA
3. Particulate matter content of clean air end: 4 - 20 mg/m³ (According to filter material)
4. Air inlet temperature requirement: lower than 60℃
5. Inlet concentration limit: less than 800 mg/m3 (The cyclone pretreatment equipment should be added if the concentration is too high)
6. Working resistance: no-load: 20°≈300-600Pa; normal operating 300-1500Pa;
7. Total weight of equipment: 1000Kg
8. Equipment power: 15 kW
9. Power supply voltage: 380V (AC), 50Hz (GB)
10. Air source pressure: 0.5～0.8 Mpa; flow rate: >0.5 m³/min
11. Noise: less than 72 decibels at a distance of 1 meter (with silencer) (except for interval pulse blowback noise)

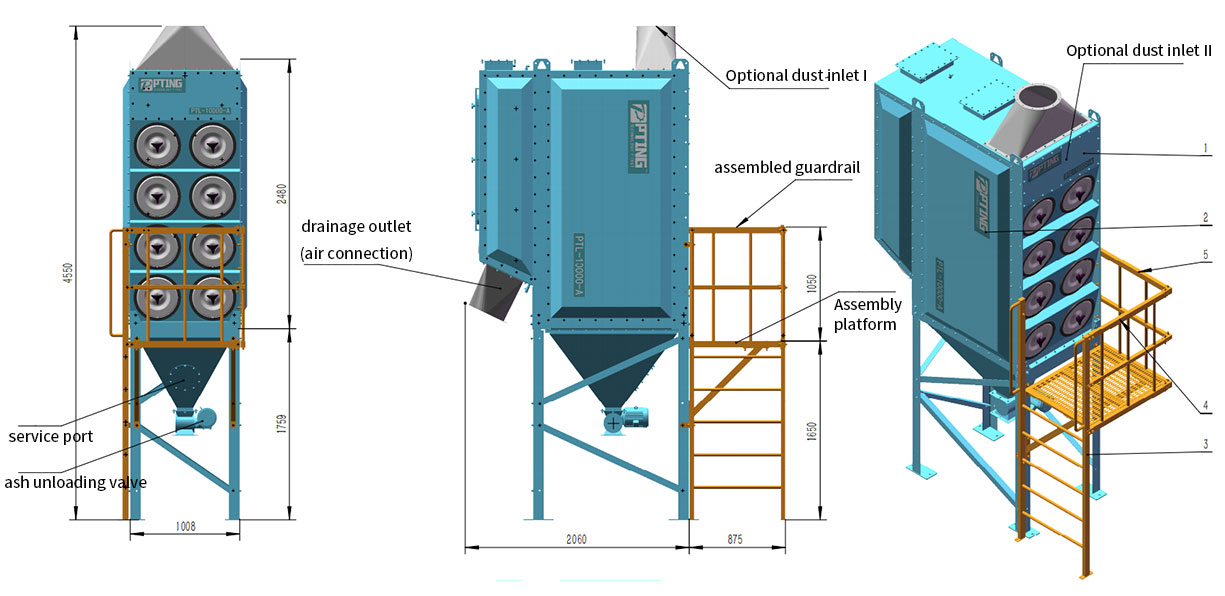

12. Dimension: As attached drawings

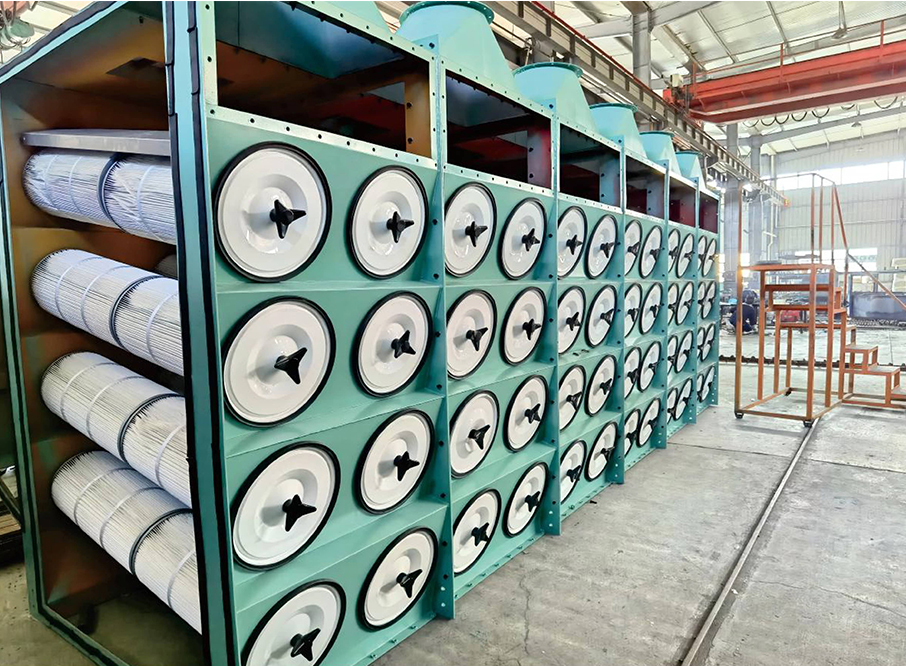

Equipment manufacturing parameters and electrical component brands
|
Chamber body
|
Q235 ordinary steel; 2-10mm; net weight about 1200KG
|
|
|
Surface treatment
|
Powder coating; film thickness 60-120um; PT LOGO (blue)
|
|
|
Pulse valve
|
SBFEC
|
|
|
Display PLC
|
YKHMI
|
Optional
|
|
Centrifugal fan
|
PTING / ROSENBERGER
|
|
|
Switch appliances
|
CHINA
|
|
|
Sensing appliances
|
ASMIK
|
|
|
Electric control box
|
RATING
|
|

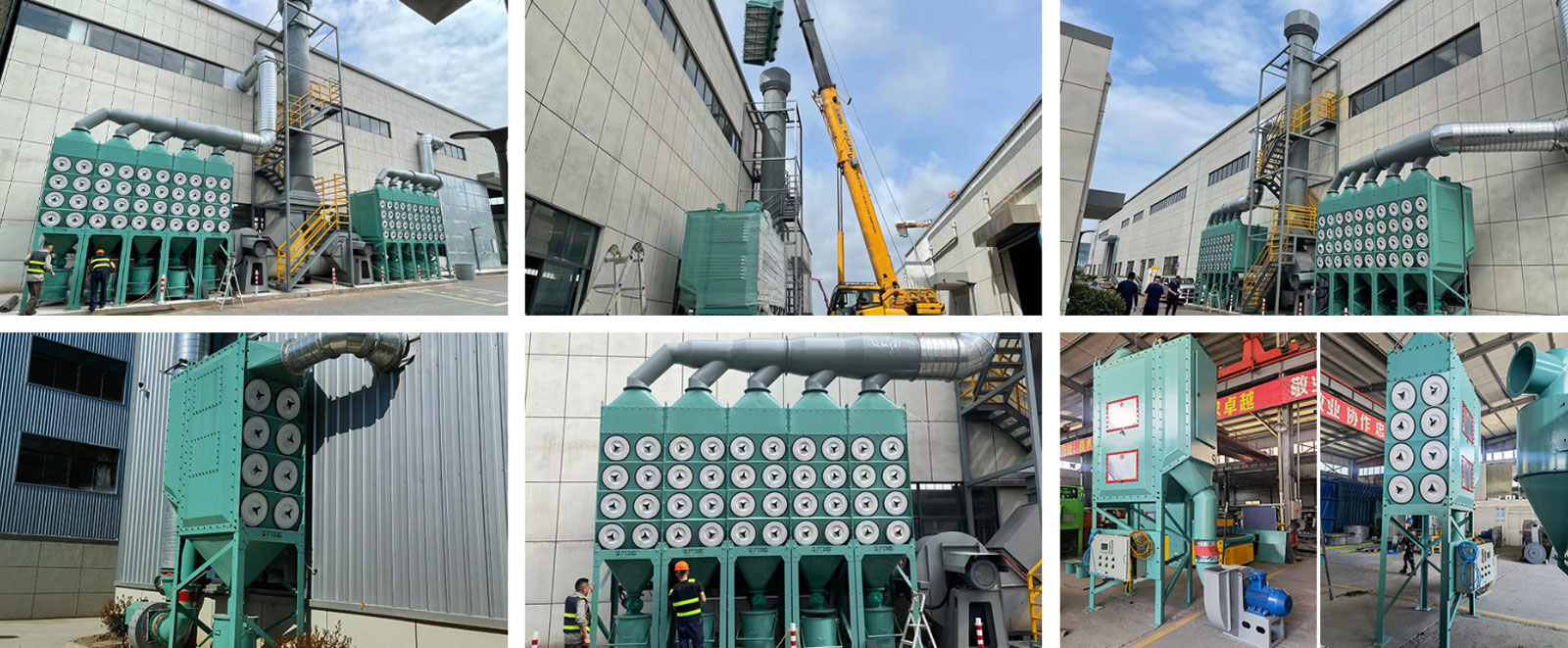

PTL downflow filter cartridge dust collector Optional table
|
Component
|
PTL-10000 Standard
|
|
Factory Standard Components
|
|
|
1
|
Equipment body structure (carbon steel material) ~1200Kg
|
●
|
|
2
|
Standard membrane filter element 16 Pcs (325*660)
|
●
|
|
3
|
Centrifugal Fan; RS 15KW; Q=10000-15000 2600-3500PA
|
●
|
|
4
|
Electrical and pulse control system
|
●
|
|
5
|
Electric continuous discharge valve
|
●
|
|
6
|
Assembly hardware accessories
|
●
|
|
7
|
Surface treatment (spray 60-120um, PT standard color)
|
●
|
|
Additional or Optional Components
|
|
|
1
|
Safety guardrails and access ladders
|
○
|
|
2
|
Connecting pipes (fan to the main unit)
|
○
|
|
3
|
Cyclone Separator (PT/XFT950)
|
○
|
|
4
|
Air volume control valve (DN600)
|
○
|
|
5
|
PLC inverter control system
|
○
|
|
6
|
Film-coated anti-static filter elements
|
○
|
|
7
|
Customized equipment paint color or
|
○
|
|
10-year long-term anti-corrosion coating (C4)
|
|
8
|
Explosion-proof electrical system（Exd IIB Explosion-proof solenoid valve, explosion-proof electrical box, and pipeline）
|
◎
|
|
9
|
Automatic sprinkler system
|
◎
|
|
10
|
Explosion-proof and explosion-venting system
|
◎
|
|
(explosion-proof, explosion-venting, flame-venting)
|
|
12
|
Spark detection, pipe spray, booster pump
|
◎
|
● Standard Components
○ Optional Components
◎ Explosion-proof flame retardant options
