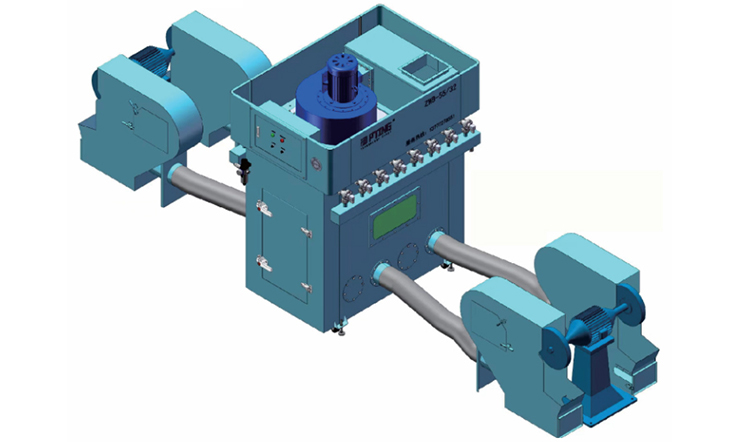

PTZW Series-Polishing and Grinding Dust Collector

Product Parameters

PTZW Polishing Dust Collector Standard Model Selection and Configuration Table

*Parameter configuration is subject to modification without prior notice*

PTZW Polishing Dust Collector Standard Model Selection and Configuration Table

1. Processing air volume: 4800-5800 m³/h

2. Pressure Loss: 50 - 100 PA

3. Air inlet temperature requirement: lower than 60℃

4. Inlet concentration limit: less than 400 mg/m³

5. Total weight of equipment: 850 Kg

6. Dimension(mm): 1281(L)*2074(W)*2450(H)

Equipment manufacturing parameters and component brands

PT/ZW55/32—Polishing Dust Collector Configuration Table

Product Advantages

1. The fan complies with the AMCA standard and is derived from the high-efficiency centrifugal fan technology of European ROSENBERGER, with an energy efficiency of 85%. The impeller is directly connected to the motor, with low vibration and maintenance-free, integrated muffler, and noise control of 72DB.

2. The filter material is optional, the surface wind speed is 0.s~1.2m/min, the filtration accuracy is above 0.3pm, and the filtration efficiency is above 99.9%.

3. Explosion-proof control: explosion-proof electronic control system, in line with safety supervision regulations;

4. The modular design of the whole machine is equipped with a large-capacity dust collection bin;

5. Each device has been tested for sealing and pressure bearing before leaving the factory, with reliable structure, stable operation, and convenient installation and transportation.

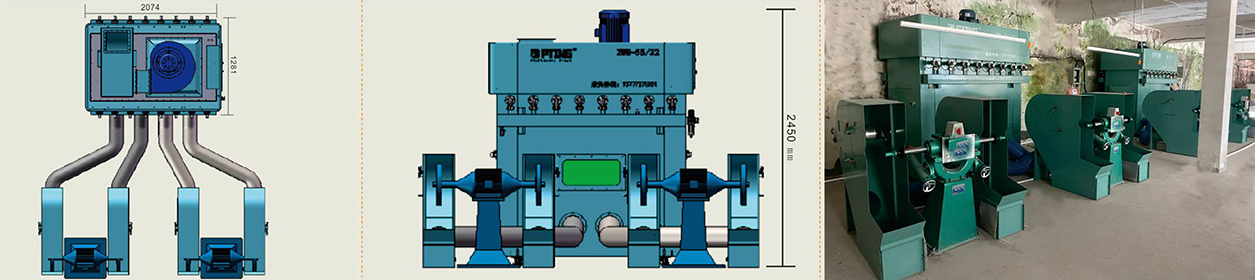

Body Mechanism And Size
