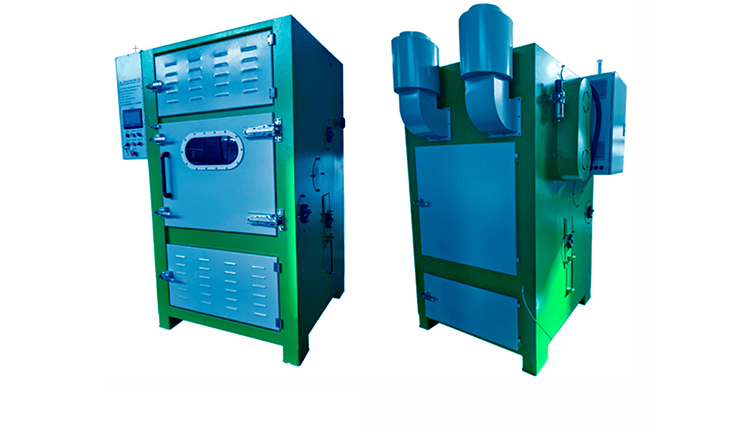

Crawler Deburring Sandblasting Machine PT-FD1200RDG-2T

Product Description

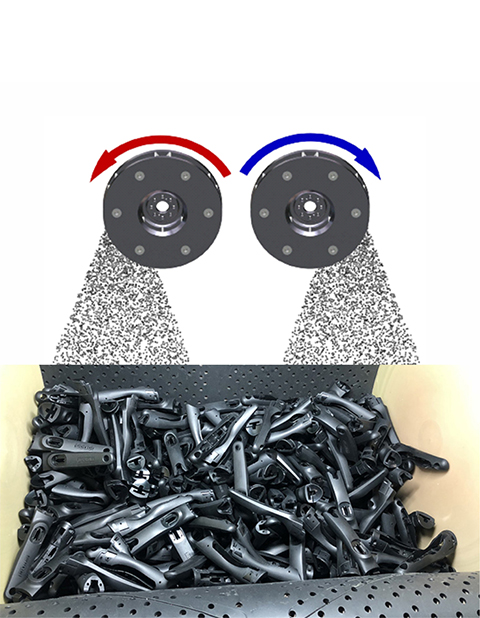

This machine is an efficient and environmentally friendly automatic burr processing machine specially designed by our company for various types of injection molding products such as BMC, bakelite, and resin. It uses environmental protection rubber crawler to run circularly, with high efficiency and low wear. It has high-power dual Projectors and wide coverage. The ejection particles are uniform, its degree of automation is high, and its adjustment range is wide. It is suitable for batch deburring of products of various shapes.

Scope of Application

Jet deburring of ABS, PPS, BMC, bakelite, bakelite and other thermosetting materials.

Contact Us

Parameters

Device Parameters

Project Specifications
Effective volume 800*800mm
Door width 950mm
Projectile head model PTS2*2
Production beat A continuous type: 5-15min/beat
Projection speed 7000r/min
End plate diameter 600mm
Dust removal parameters 1000-1200m³/h 800Pa
Air source parameters 1.3
Power parameters 380V, 50Hz 11KW
Device control method Frequency Control
Grade and brand of electrical components Schneider Air TAC
Applicable abrasive 10-120# plastic sand/ resin sand
Abrasive first input amount 50KG
Total weight of equipment 1200KG
Host size 1200*1300*2300mm

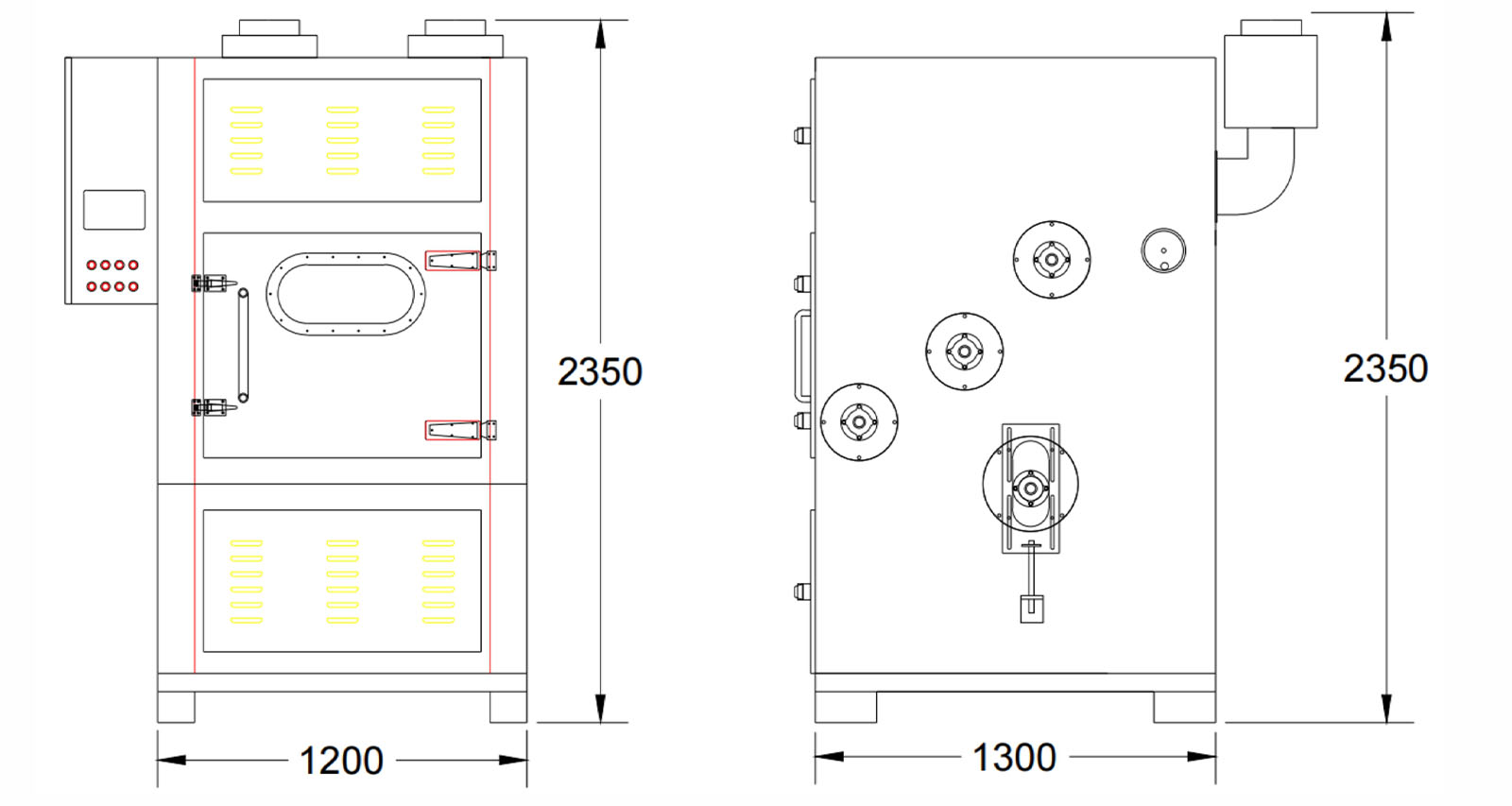

Equipment Structure Size

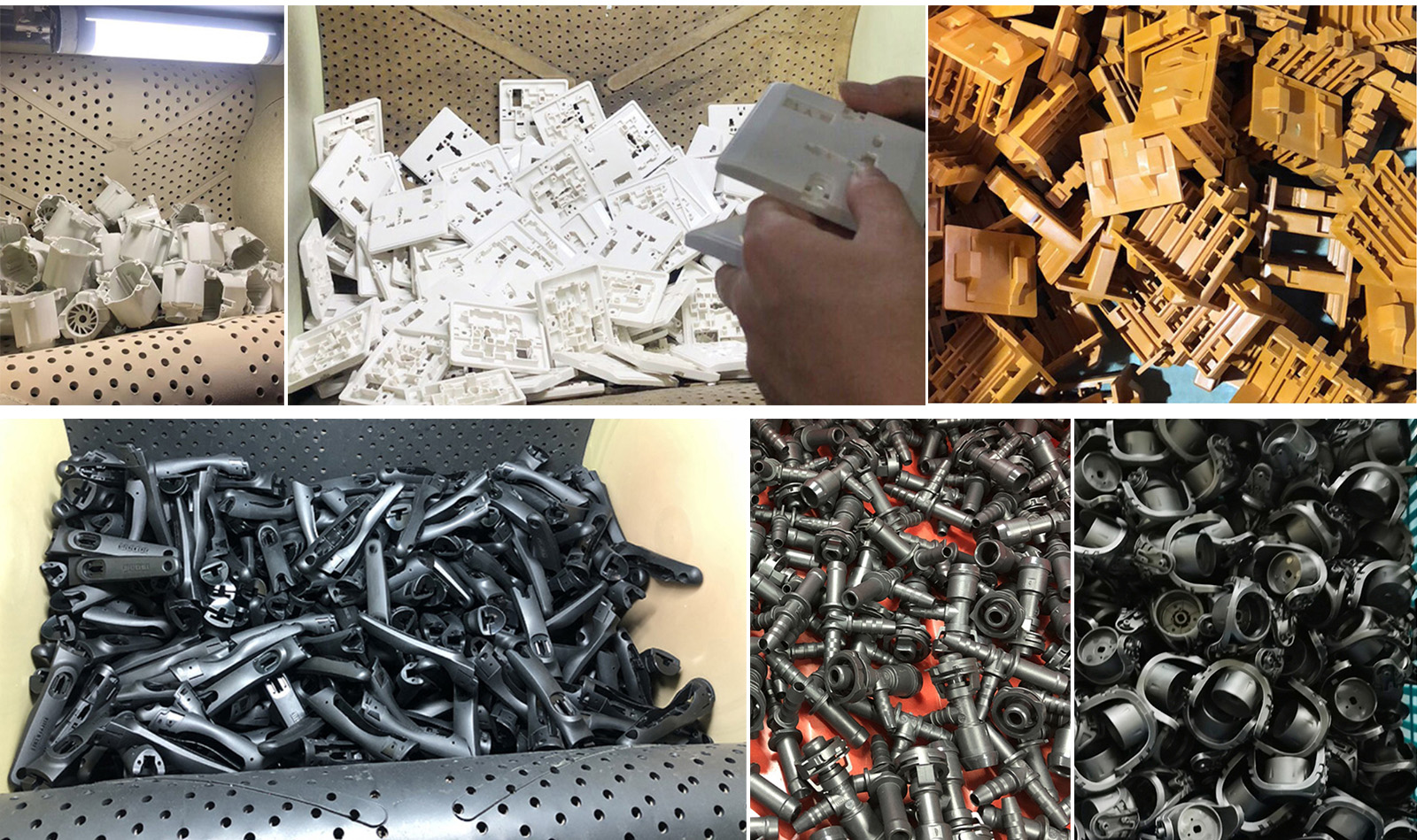

Product Application Field

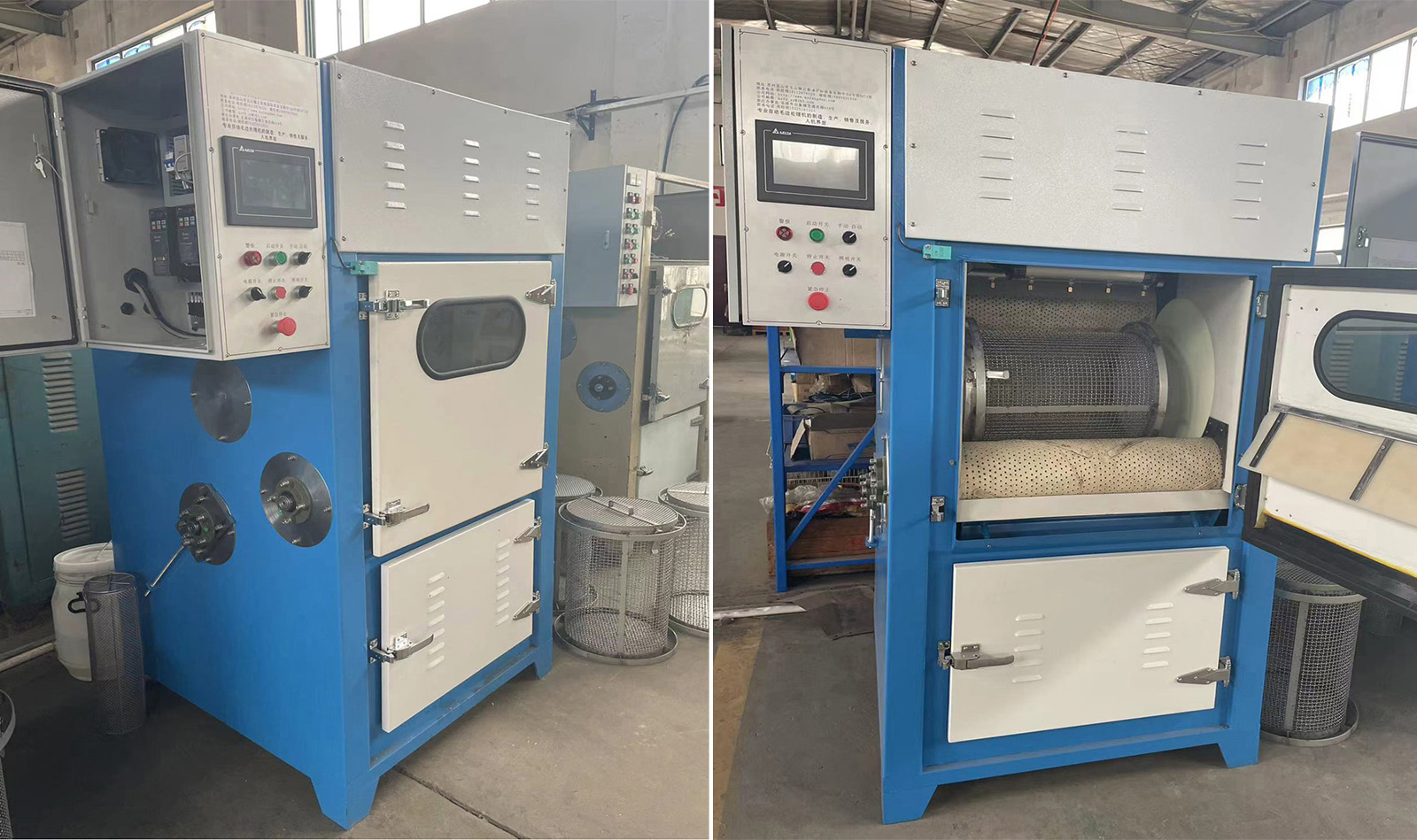

User Scenario
